SHOPSMITH MARK V 845180
Page 4

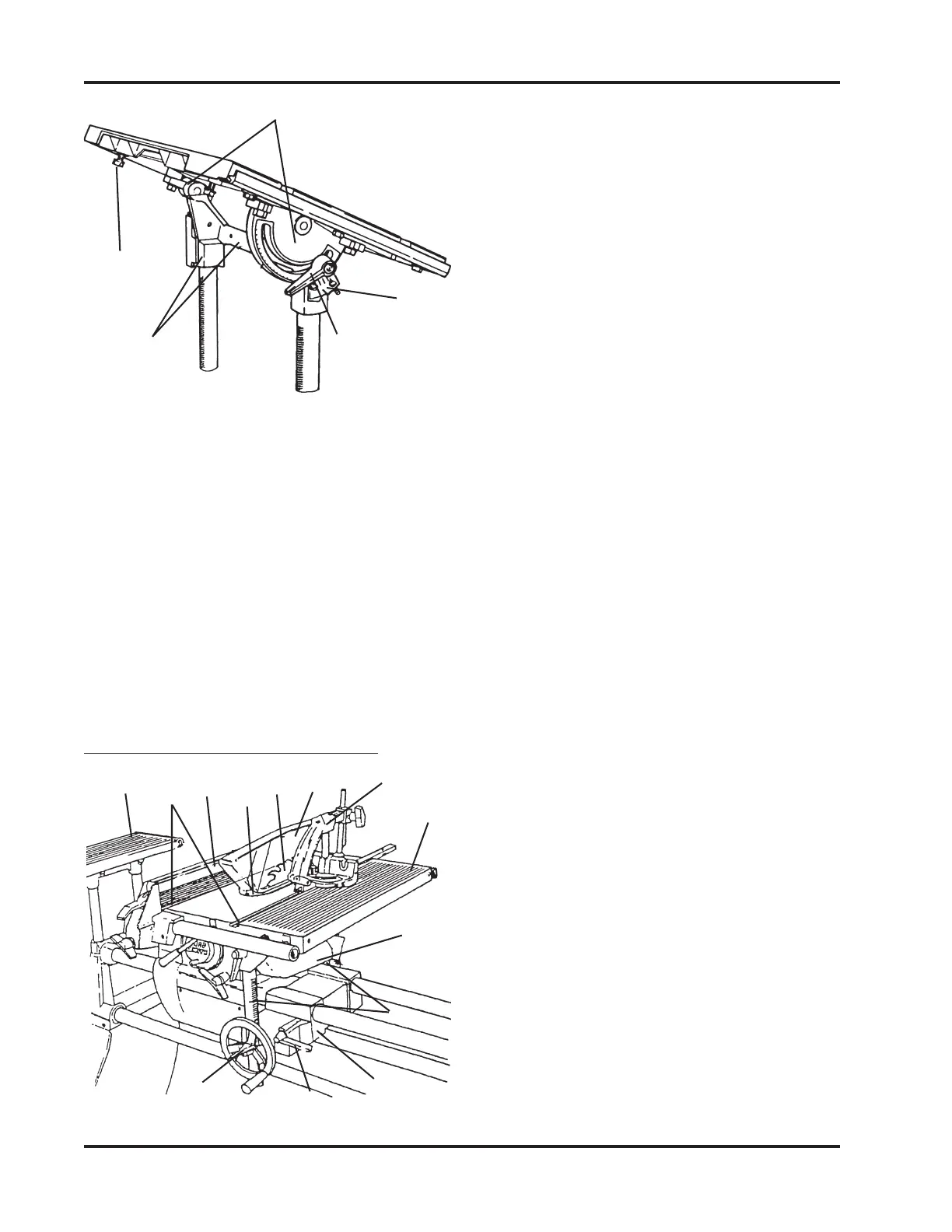

36. Table Height Lock - Secures the Table at
any height.
37. Trunnions - Allows the Table to tilt up to
90° Left and 45° Right.
38. Table Tilt Indicator - This Vernier Scale
indicates the Table angle.
39. Table Tilt Lock - Secures the Table at
any angle, up to 90° Left and 45° Right.
40. Table Tie Bar - Supports the Table Sup-
port Tubes and the Trunnions.
41. Table Stops - When properly adjusted,
they stop the Table at 90° Left, 45° Right
and 0°. (Note: one of the two 90° Table
Stop Bolts is shown.)
MARK V MODELS 510 & 520
37
40
38
39
41
42
43
44
54
53
45
52
51
50
46
48
47
49
42. Extension Table - Mounts in either the
Power Mount or the Base Mount to pro-
vide extra support for the stock.
43. Miter Gauge Slots - Guide and secure
the Miter Gauge.
44. Rip Fence - Mounts to the Table and is
used as a guide, support or stop. It auto-
matically aligns itself parallel to the
Blade. Holes in the Fence are used to
mount fixtures and fence extensions.
45. Table Insert - Used for sawing, sanding,
drilling and boring. It can be replaced
with inserts for dadoing, molding, drum
sanding and shaping.
46. 10" Saw Blade - Mounts to the 1-1/4"
Arbor which then mounts to the Main
Spindle. This Saw Blade is use for both
crosscutting and ripping.
47. Upper Saw Guard - Provides a physical
barrier between you and the part of the
Blade above the Table. An anti-kickback
mechanism helps control kickbacks.
48. Miter Gauge with Safety Grip - Holds
stock firmly at various angles. It slides
freely or locks in the Miter Gauge Slots.
49. Worktable - Holds the stock and pro-
vides a working surface.
50. Lower Saw Guard - Protects you from
the part of the Blade or cutter below the
Table. The Saw Guard has a Dust Chute.
The Lower Saw Guard is also used with
the Sanding Disc.
51. Table Support Tubes - Support the Table
above the Bench. Each tube has racks
that mesh with Pinions in the Carriage to
raise and lower the Table.
52. Carriage - Slides along the Way Tubes
and holds the Table Support Tubes and
the Lathe Tool Rest.
53. Carriage Lock - Secures the Carriage on
the Way Tubes.
54. Table Height Lock - Secures the Table at
any height.
