845180 SHOPSMITH MARK V
Place the Square against the good edge and
draw a line across the width. Flop the Square
over and hold it against the same edge and
draw another line next to the first one. If the
lines are parallel, your Square is accurate.
TOOLS NEEDED:
This list covers all tools required for all mod-
els. Some tools listed may not be necessary for
your Model MARK V.
3/16" Allen Wrench
5/32" Allen Wrench, Long Handle
5/32" Allen Wrench, Short Handle
5/16" Allen Wrench
9/16" Wrench
Arbor Wrench
1/2" Wrench
Adjustable Wrench
1/2" Socket
Socket Wrench with Short Extension
1/2" Drill Bit
Small Straight Blade Screwdriver
Medium Straight Blade Screwdriver
Medium #12 Phillips Screwdriver
Large #3 Phillips Screwdriver
High Quality Combination Square
All the parts and accessories which support or
guide the stock MUST be aligned parallel
with or perpendicular to the Main Spindle's
plane of rotation. During the following align-
ment procedures the Saw Blade will represent
the Main Spindle's plane of rotation. This is
the only time the Saw Blade is used without
the Upper or Lower Saw Guards and then
only after the MARK V is turned off and
unplugged.
NOTE
If there are Casters installed on your MARK V,
make sure they are retracted and the Legs on the
MARK V sit firmly on a level floor. Check this
58
60
59
55
56
57

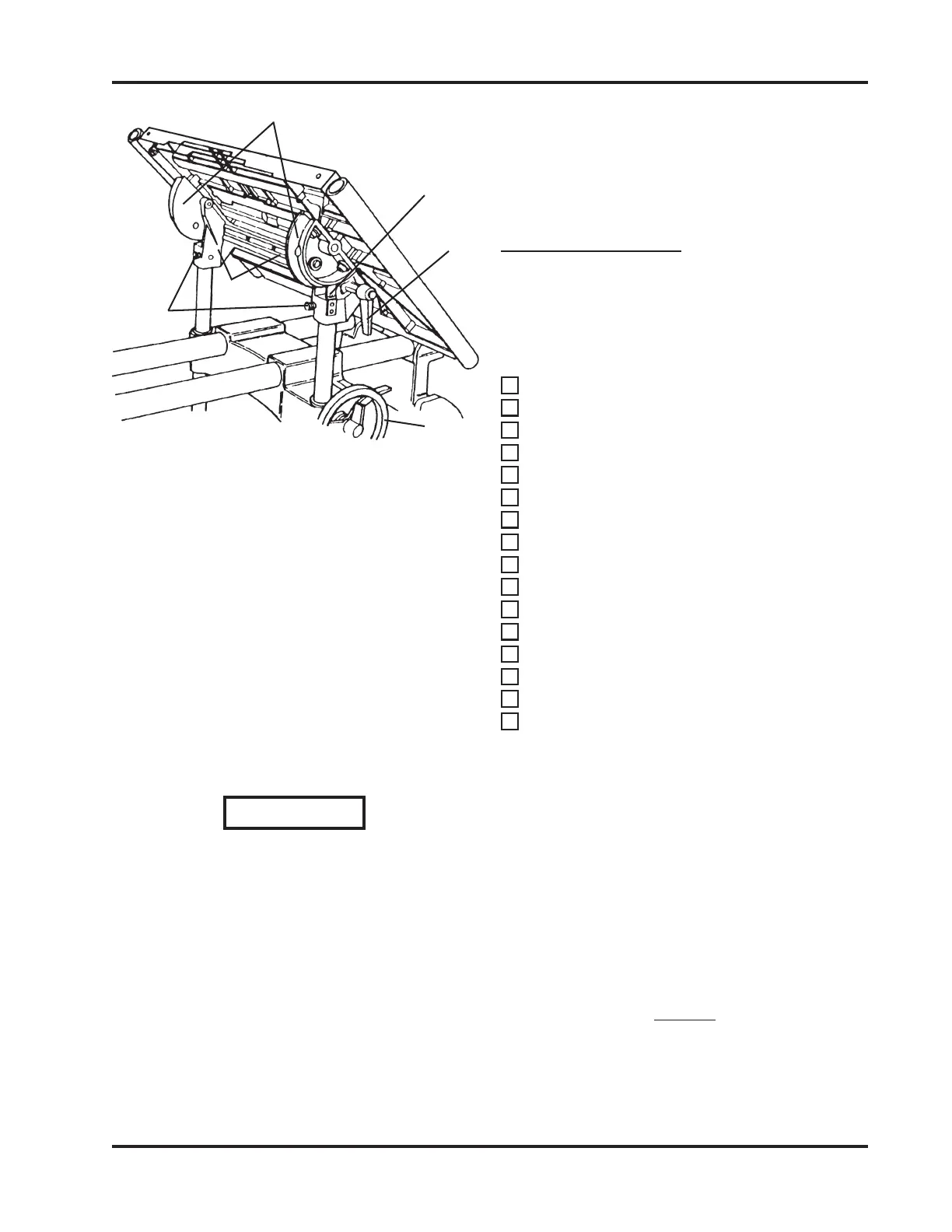

55. Trunnions - Allows the Table to tilt up to
90° Left and 45° Right.
56. Table Tilt Indicator - This Vernier Scale
indicates the Table angle.
57. Table Tilt Lock - Secures the Table at
any angle, up to 90° Left and 45° Right.
58. Table Height Crank - Turns the Pinions
in the Carriage which raise and lower
the Table.
59. Table Tie Bar - Supports the Table Sup-
port Tubes and the Trunnions.
60. Table Stops - When properly adjusted,
these Bolts stop the Table at 90° Left, 45°
Right and 0°. (Note: Only the two 90°
Table Stop Bolts are shown.)
WARNING
Make sure the Speed Dial is set to
"Slow", then turn off and unplug the
MARK V before performing any ALIGN-
MENT procedure.
Complete ALL of the following procedures -
and then recheck them at regular intervals.
You MUST use an accurate Combination
Square for alignment and adjustment. To
check that your Square is accurate, select a
board with at least one straight and true edge.
