ShoreDocker SD1200 - Joining Side Rails End-To-End; Attaching Supporting Legs

JOINING SIDE RAILS E ND- T O-END
!
IMPORTANT: When joining side rails end-to-end, they should be kept in line with each other. If you form an angle that
makes a “valley” the boat transom will not bass over the rollers behind it. If the angle forms a “crest”, the weight if the
entire boat will fall upon a single pair or row of rollers as the center of gravity pivots over the crest.
!

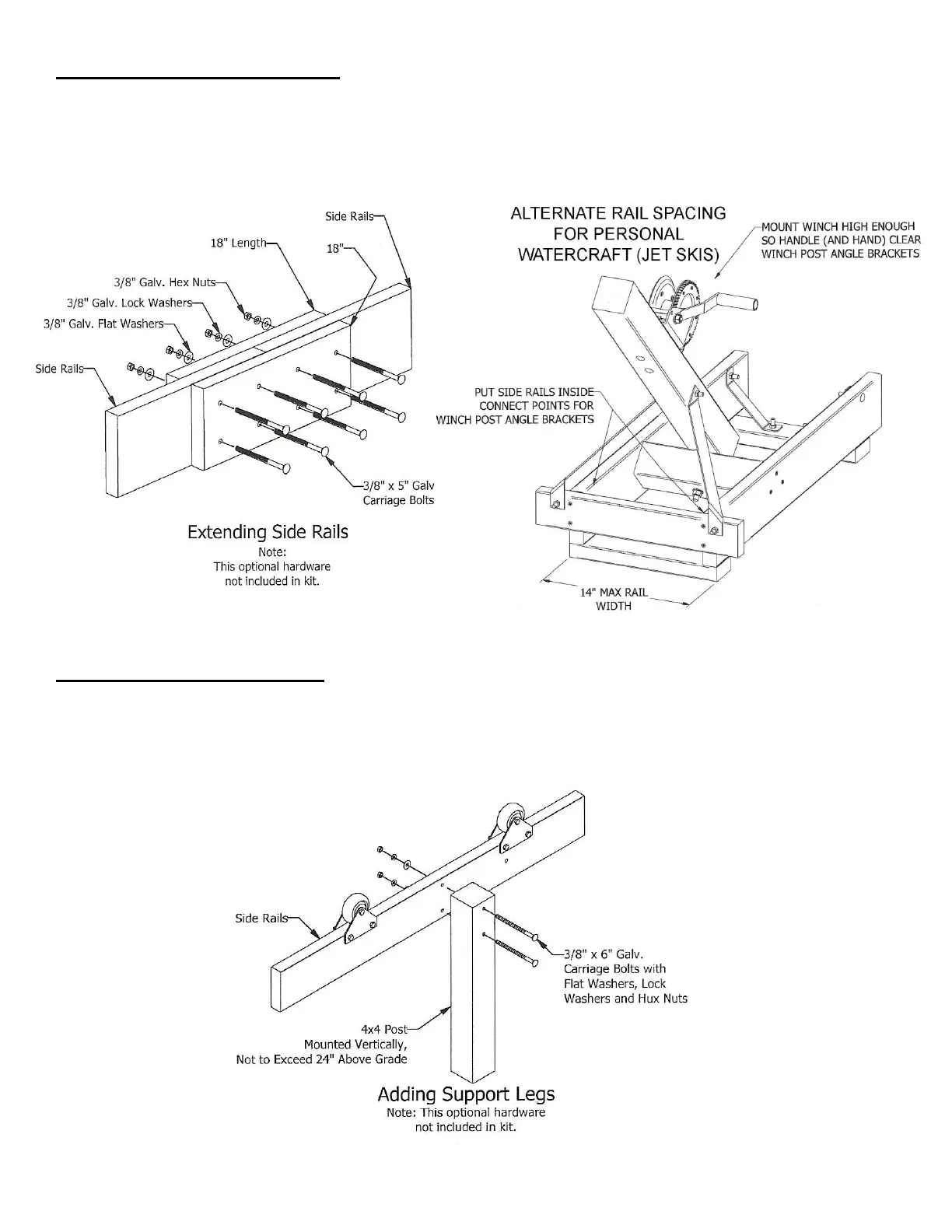

Join ends of rails as shown be l ow.
(Hardware not i n cl uded.)
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
ATTACHING SUPPORTING LEGS
!
· Concrete Blocks work best for supporting or “leveling” your r a mp.
· Extra long cross members can help make the ramp more s t ab l e.
· Keep leg height to a minimum. Shore Docker is not responsible for customized designs. Be s a fe!
· Keep legs VERTICAL TO THE HORIZON regardless of the ramp a ng le .
Install legs as shown below. (Hardware not i n cl uded)
