Shoremaster TowerMax - Page 4

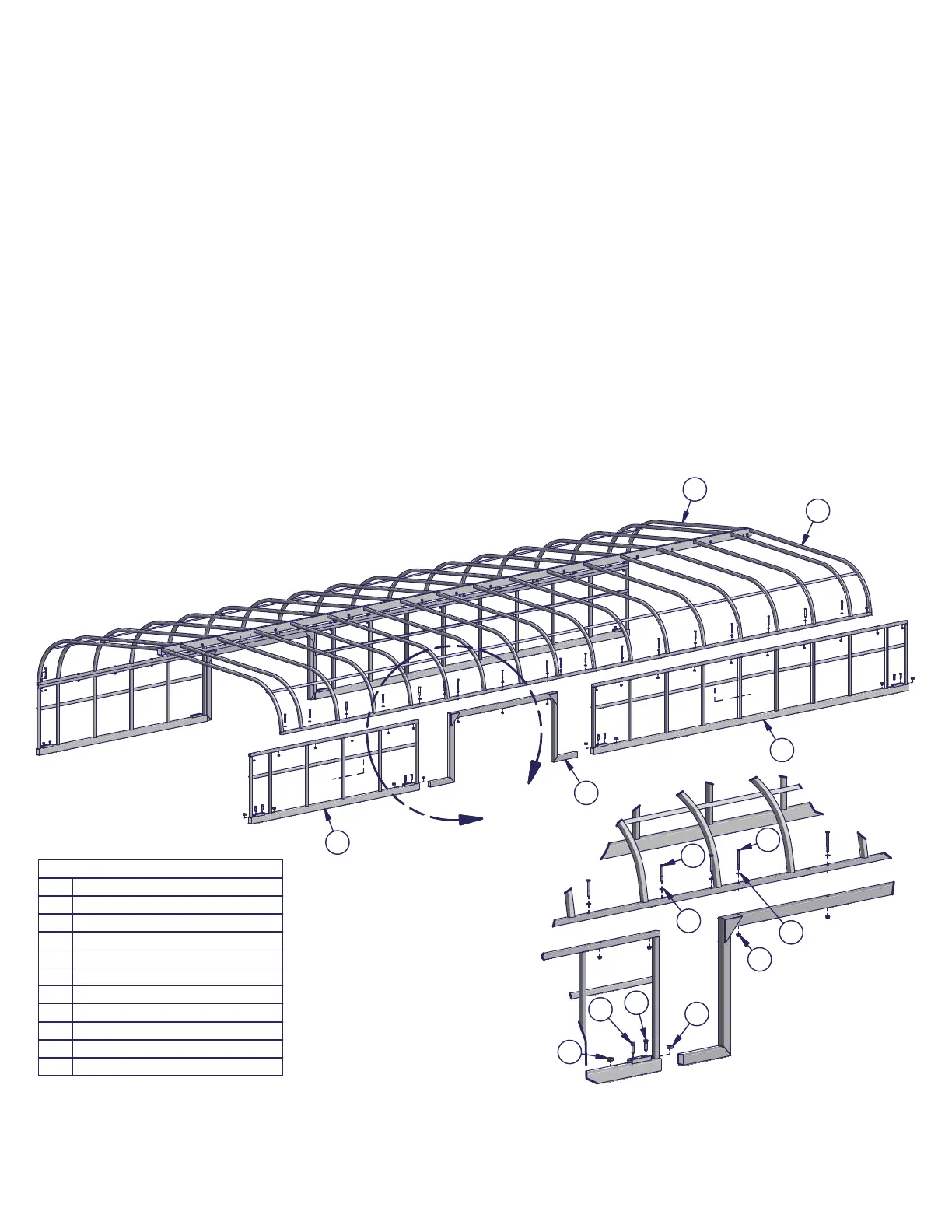

DETAIL B
SCALE 1 / 20
B
Parts List
DESCRIPTION
ITEM
Wdmt TowerMax Top1
Wdmt TowerMax Side Bottom - Longer
2
Wdmt TowerMax Side Bottom - Shorter
3
Wdmt TowerMax Side Door Frame
5
Bolt Hex 3/8-16 x 2.75 SS 304
6
Bolt Hex 3/8-16 x 3.5 SS 304
7
Set Screw 1/2-13 x 1.5 SS 304 Cup Point
8
Nut Flange 3/8-16 Brass
9
Nut Square 1/2-13 Brass
10
Washer Flat 3/8 SS
11
3
2
5
1
1
10
8
8
10
6
11
7
11
9
Step 2. Assemble the three piece side. Slide the door frame into the bottom tubes of the longer and
shorter side weldments. Make sure the configuration is as desired, with the canopy bungee attachment
angle to the inside of the canopy.
Step 3. Secure the door frame using two 1/2 x 1.5 set screws, and two brass square nuts in each nut
channel.
Step 4. Using 3/8 x 2.75 hex bolts with a flat washer and brass flange nut, bolt the side bottoms to the side
top assembly from Step 1. Bolt the top of the side door frame to the top weldment using 3/8 x 3.5 hex bolts,
flat washers, and flange nuts. Not every hole will require fasteners. The weldments are drilled to
accomodate multiple configurations. Only use hardware near every rib where the holes align all the way
through.
Note: Check configuration to make sure side door is located on desired side, and closer to where the rear
of the boat will be located on the lift, and both sides with the canopy attachment angle to the inside of the
canopy.
