Shoremaster TowerMax - Page 5

DETAIL C
SCALE 1/25
DETAIL D
SCALE 1/7
C
Parts List
DESCRIPTION
ITEM
Wdmt TowerMax Canopy End
1
Wdmt TowerMax End Adjustment Pocket Top2
Prt Tube 1.625 x 1.125 x .125 x 10.03
Bolt Hex 3/8-16 x 4.25 SS 304
4
Bolt Hex 3/8-16 x 3.0 SS 304
5
Set Screw 1/2-13 x 1.5 SS 304 Cup Point
6
Nut Flange 3/8-16 Brass
7
Nut Square 1/2-13 Brass
8
Washer Flat 3/8 SS
9
D

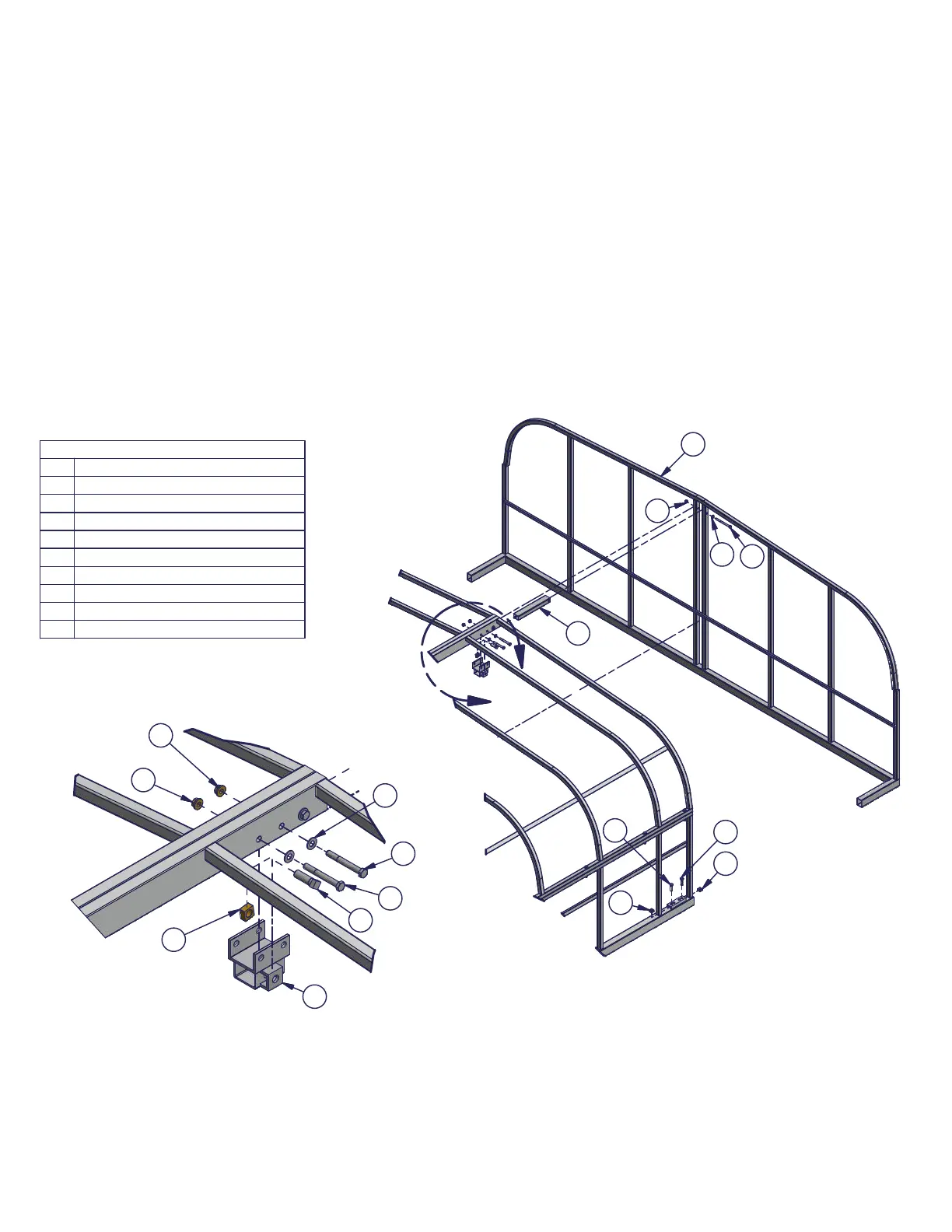

Step 5. Assemble the adjustable end. Place the adjustable pocket onto the center rib of the canopy
top. Bolt in place using two 3/8 x 3.0 hex bolts with flat washers, and two brass flange nuts. Place
square nut into nut channel on the adjustable pocket and lightly thread the set screw just enough to hold
in place. Place the 10 inch tube into the adjustable pocket with the drilled end toward the end of the
canopy. Leave loose for now.
Step 6. Place two square nuts into each nut channel on the ends of the sides and lightly thread a set
screw into each nut, just enough to hold in place.
Step 7. Slide end weldment into the canopy assembly. Bolt 10 inch tube to the end weldment using 3/8
x 4.25 hex bolt, flat washer, and brass flange nut.
