Shoremaster TowerMax - Page 6

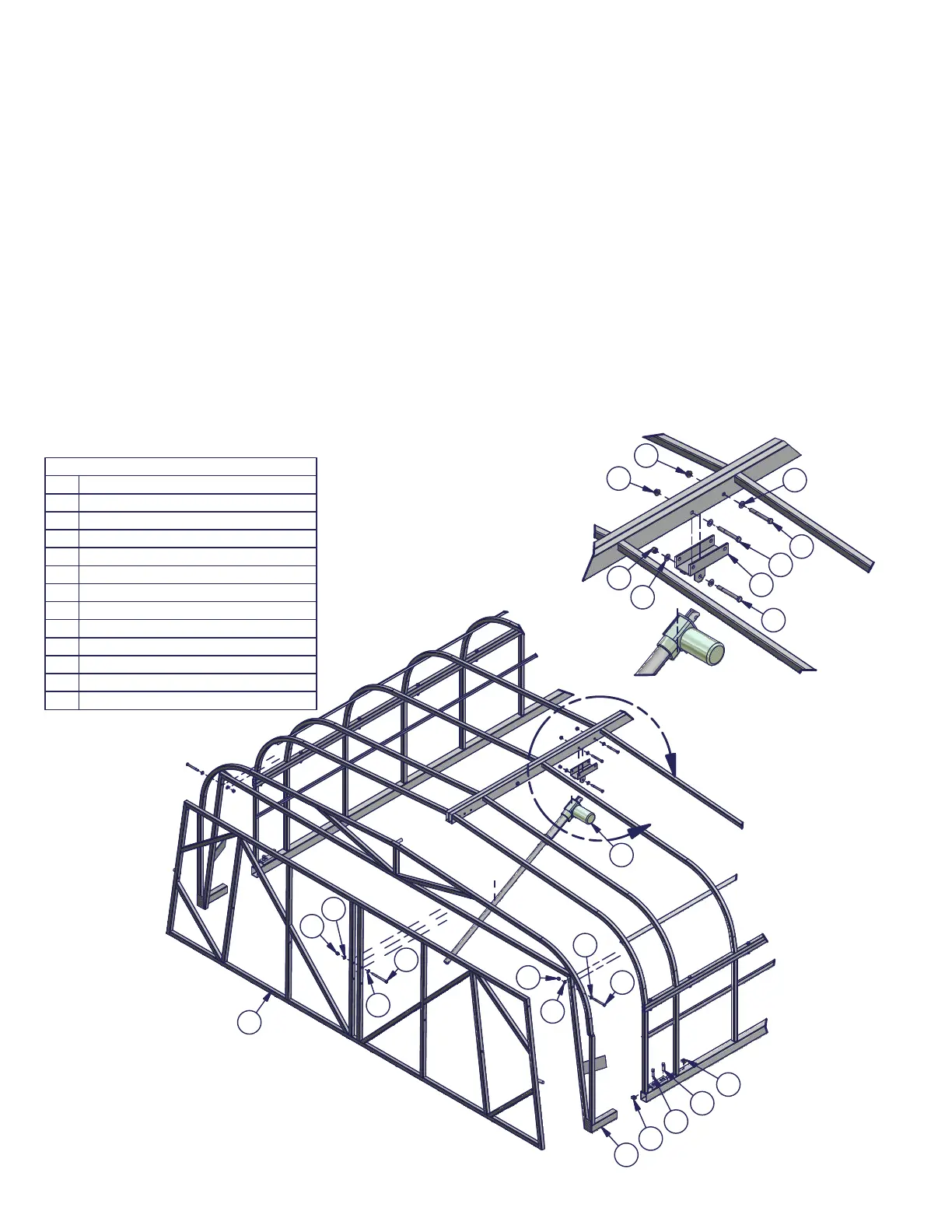

DETAIL E
SCALE 1/25
DETAIL F
SCALE 0.08 : 1
E
Parts List
DESCRIPTION
ITEM
Actuator1
Wdmt TowerMax Canopy Door
2
Wdmt TowerMax Canopy End - Door Side
3
Wdmt TowerMax Actuator Upper Mount4
Bolt Hex 3/8-16 x 4.25 SS 304
5
Bolt Hex 3/8-16 x 3.25 SS 304
6
Bolt Hex 3/8-16 x 3.0 SS 304
7
Set Screw 1/2-13 x 1.5 SS 304 Cup Point
8
Nut Flange 3/8-16 Brass
9
Nut Nyloc 3/8-16 Brass
10
Nut Square 1/2-13 Brass
11
Washer Flat 3/8 SS
12
F
Step 8. Assemble the actuator and door. Place the upper mount onto the center rib of the canopy.
The mounting location for the actuator should be closer to the door end. Secure in place using two
3/8 x 3.0 hex bolts, flat washers, and brass flange nuts.
Step 9. Place the motor end of the actuator into the mounting channel of the upper mount. Secure
actuator in place using a 3/8 x 3.25 hex bolt, flat washer, and brass nylock nut.
Step 10. Slide the Canopy End - Door Side on the the end of the canopy frame. Make sure the top
centering pin slides into one of the center rib tubes for support. Secure in place with the set screws
and brass square nuts on the canopy sides.
Step 11. Mount the door in the frame. Secure in place using a 3/8 x 3.25 hex bolt, two flat washers,
and a brass nylock nut in each top corner of the door frame. Tighten hardware so door is centered
and swings freely. Swing door in to connect rod end of actuator to door using 3/8 x 4.25 bolt, two flat
washers, and one nylock nut.
2
3
10
12
5
12
6
12
12
10
11
8
8
11
1
9
9
7
7
12
4
6
10
12
