Shott WP7000 - Connections and Start-Up

E N
Nome file:
File name:
7528002EN - ISTRUZIONI WP7.8000 - EN.docx Rev. 1 24/05/2016
10-18

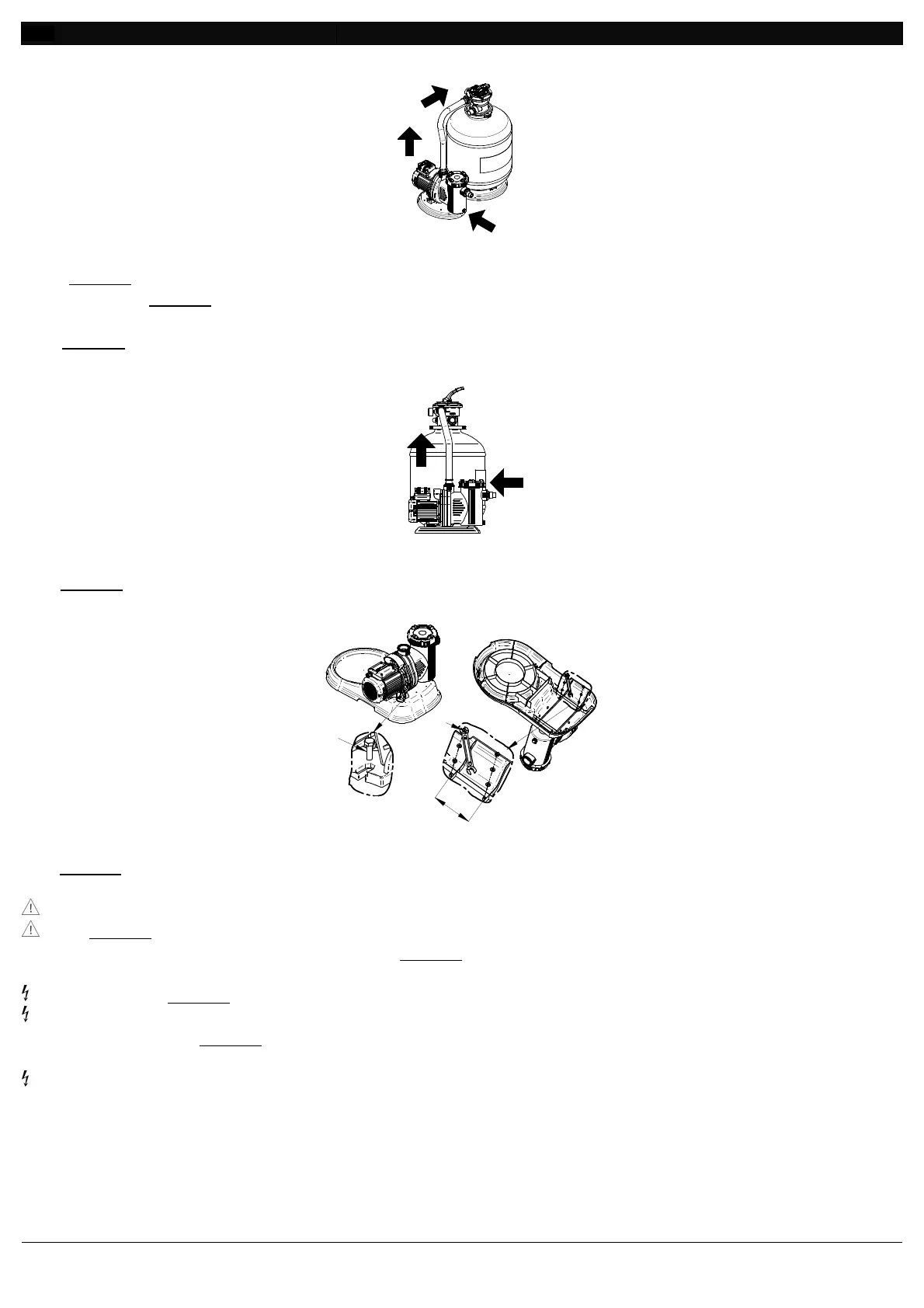

Fig. 14
If the product is placed outside it is advisable to put a simple cover to protect it from rain.
Make sure the product is positioned in a place where noise generated during normal operations does not
create disturbances.
The product must run in a horizontal position. Make sure its position is not altered once it is correctly
placed.
Fig. 15
The product must be fixed on a firm base, with screws of 6 [mm] diameter, through the prepared holes in
the foot.
Fig. 16
The product must be positioned in a shady and aerated place.
5.6 Connections and start-up.
The electrical system must meet current international and/or national regulations.
The product must be connected to an power outlet equipped with a residual current device with
sensitivity over 30 [mA]. Before starting the product make sure this device is installed in your electrical
system. Contact a technician if necessary.
Make sure the product complies with your electrical system.
The power outlet must be at a suitable distance from the water but easily accessible in order to be able
to easily turn off the product in the event of fault (electrical socket, at least 3,5 [m] from the edge of the
pool). Cutting the power cord and/or replacing the power plug is strictly prohibited.
The power cord must be positioned to avoid possible damages such as bends and/or cuts.
IN
IN
OUT
M6
M6
1
1
2
m
m
