Shott WP7000 - 10 Retail and Spare Parts and Relevant Documentation

E N
Nome file:
File name:
7528002EN - ISTRUZIONI WP7.8000 - EN.docx Rev. 1 24/05/2016
16-18
Replace any damaged and/or worn components as quickly as possible; use only original spare parts.

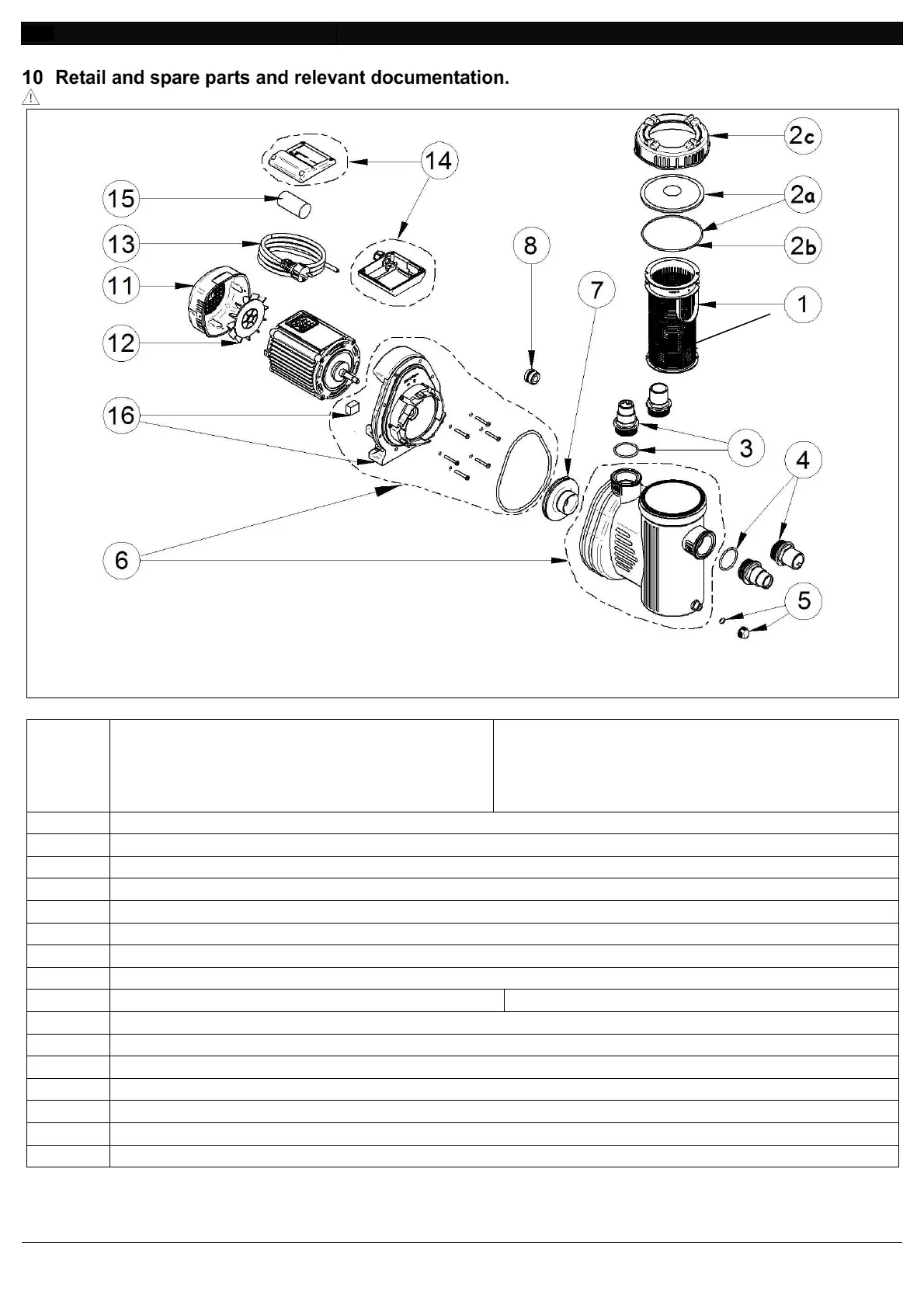

Fig. 30
#
WP7000 WP8000
1 XQ708I23
2a XQ710I23
2b XQ700I23
2c XQ709I23
3 XQ711I10 (Ø 32/38[mm])
4 XQ711I20 (Ø 38[mm])
5 XQ712I13
6 XQ713I23
7 XQ714I53 XQ714I63
8 XQ715I23
11 XQ718I23
12 XQ719I23
13 XQ720I10
14 XQ721I10
15 XQ722I13
16 XQ723I23
Tab. 3
