3.1 Product scope.
The product you purchased is a
centrifugal pool pump designed to pump
fresh and salt water.

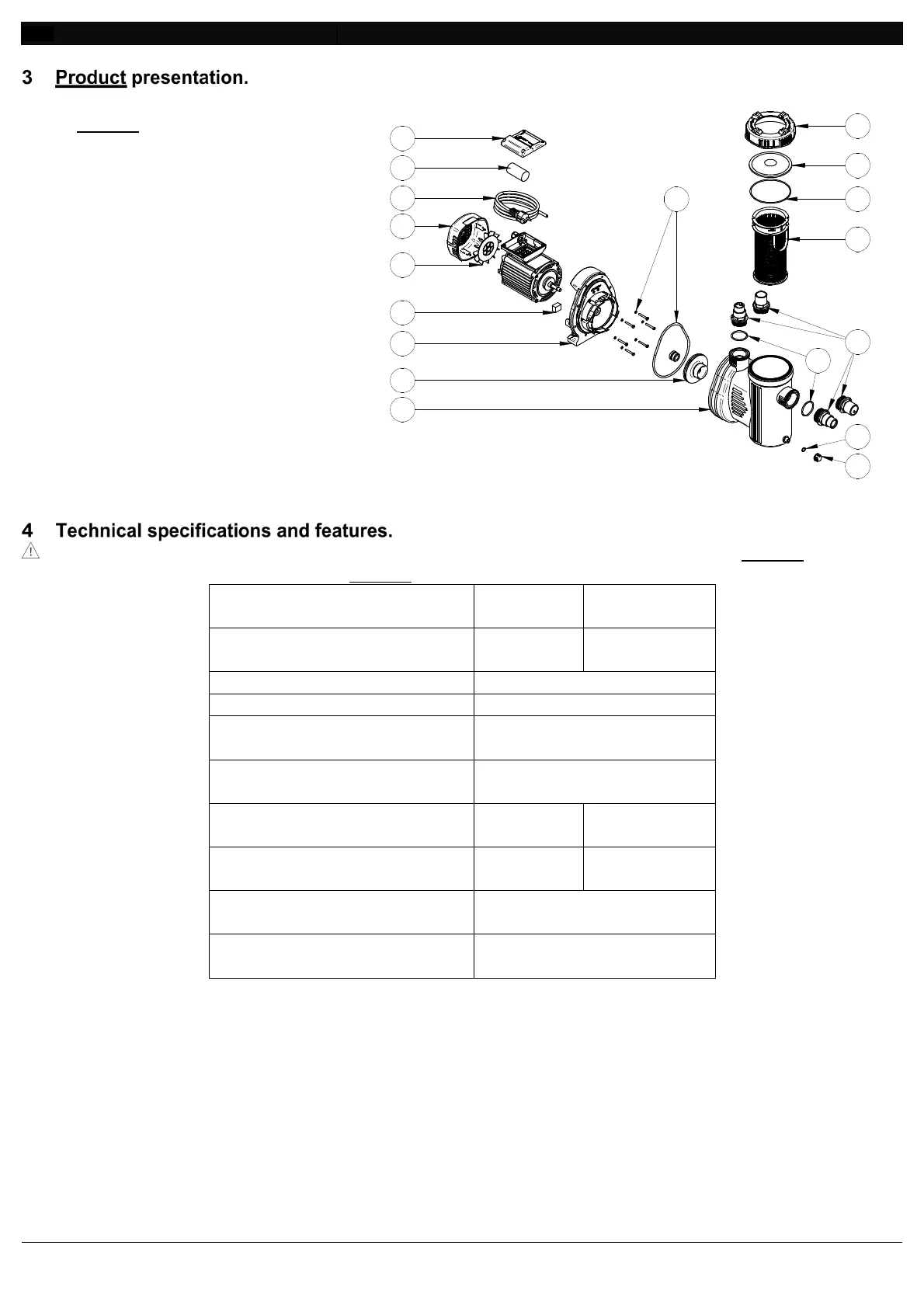

3.2 Composition.
1. Hosetail
2. O-ring
3. Draining tap
4. Frame
5. Cover
6. Lock nut
7. Prefilter
8. Impeller
9. Rubber
10. Flange
11. Fan
12. Carter
13. Power cord
14. Capacitor
15. Cover
The hydraulic parts used for the building of the system which shall include the product modify the
performance (head and flowrate) of the product.
WP
7
000
WP
80
00
Power
[kW]/[hp]
0.450/0.603 0.500/0.623
Standard voltage 220-240[V]~50[Hz]
Protection grade at water input IPX5
Inlet
[mm]
Ø 32 – Ø 38
Outlet
[mm]
Ø 32 – Ø 38
Max flowrate
[m
3
/h]/[gpm]
9.3/2044 12.0/2640
Max head
[m]/[ft]
11.50/37.6 12.00/36.6
Max water temperature
35 [°C]
95 [°F]
Minimum water temperature
4 [°C]
39 [°F]
Tab. 1
Fig. 6
1
2
22
3
2
4
5
6
7
8
9
10
11
12
13
14
15
