Operate PSA Professional Stereo Amplifiers Bridged Mode
In this mode, the channel A input signal will be output from the bridge output
Connectors (The 2 RED binding post). In this case, use the channel A volume
control to adjust the volume, keep the volume control of channel B turned completely
down (counterclockwise ). Bridged mode is intended for driving loads with a total
impedance of 4 ohms or greater. In Bridge Mode you will combine the power of
both channels into one speaker. You will have available massive amount of power
so check carefully the power handling of your speaker before operation.

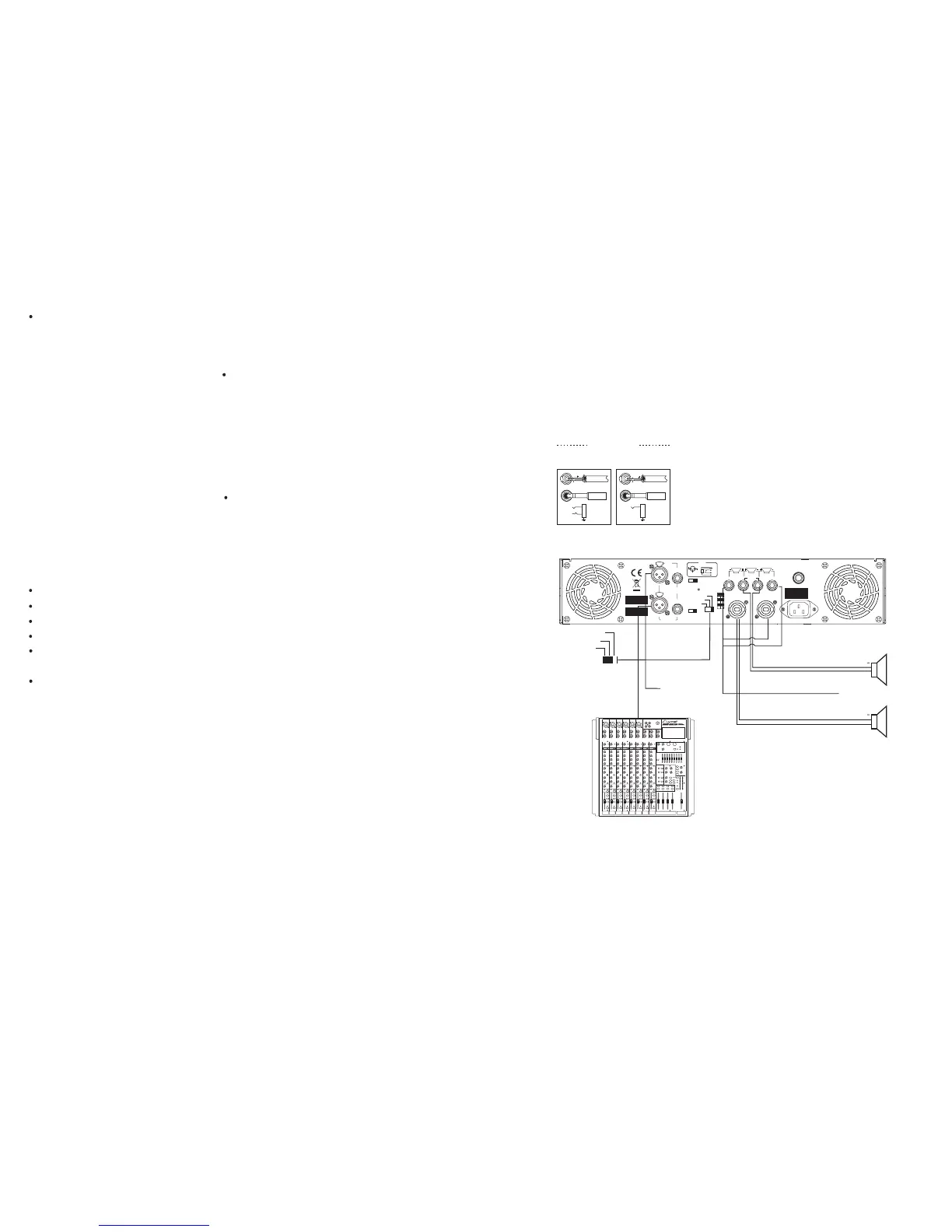

Input wiring tips
BALANCED UNBALANCED
PARALLEL
(MONO)
NO USING
STEREO
BRIDGED
1
2
3
GND
INPUT
FROM
SOURCE
1
2
3
INPUT
FROM
SOURCE
SHIELD
+ +
SHIELD SHIELD
channel A
channel B+
+
NO USING
channel A+
+
channel 2+
channel 1+
