You can also make adjustments
through the backrest cushion adjust-
ment system.
This system has been designed to offer
unrivalled flexibility and superior
comfort to suit different users by
adapting the backrest angle and
backrest height that best suits the user.
7 P1 & P2 Pediatric Conversion Kit

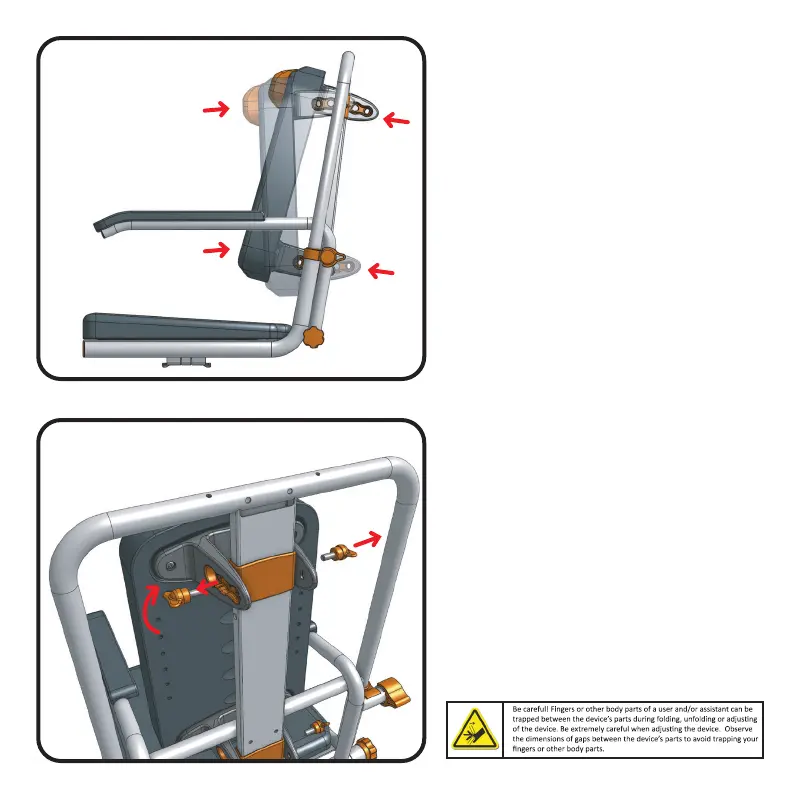

To adjust your seat back angle simply
undo the seat lock knobs (part #500-
263) and position the backrest to the
desired recline position by re-fixing the
lock knob into that desired location
hole. Screw the thread tight.
To adjust your seat backrest height
simply undo the seat lock knobs (part
#500-263) and position to the desired
height location hole in the metal spine
to give the required height. Screw the
thread tight.
These adjustments are best carried out
by adjusting the top or bottom individu-
ally while the other is still located, this
then acts as a pivot for the seat
backrest and makes alignment of holes
easier. Ensure all seat lock knobs are
tightened before use.
