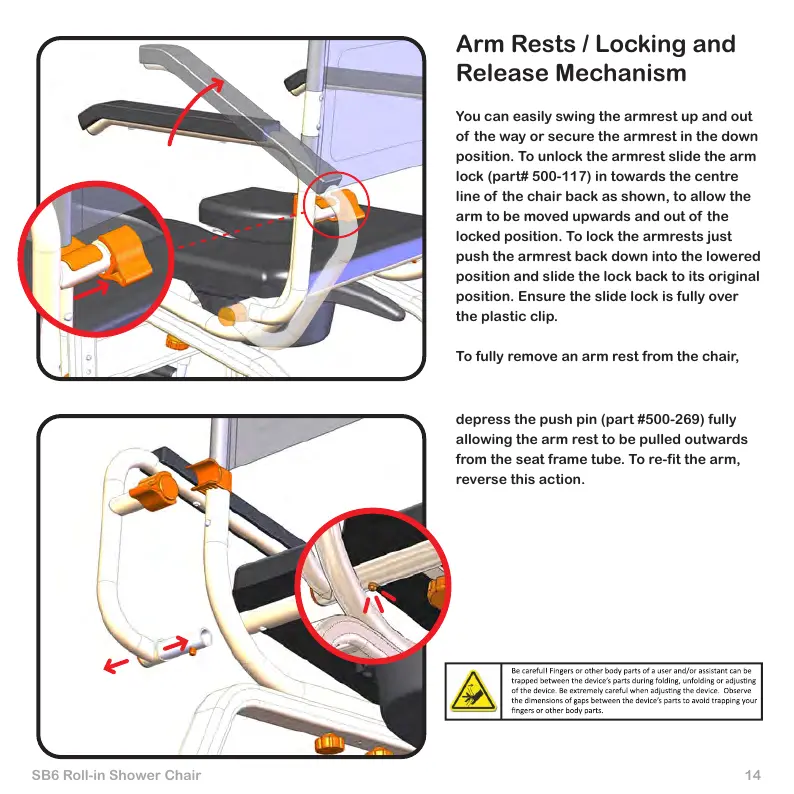

Arm Rests / Locking and
Release Mechanism
You can easily swing the armrest up and out
of the way or secure the armrest in the down
position. To unlock the armrest slide the arm
lock (part# 500-117) in towards the centre
line of the chair back as shown, to allow the
arm to be moved upwards and out of the
locked position. To lock the armrests just
push the armrest back down into the lowered
position and slide the lock back to its original
position. Ensure the slide lock is fully over
the plastic clip.
To fully remove an arm rest from the chair,
depress the push pin (part #500-269) fully
allowing the arm rest to be pulled outwards
from the seat frame tube. To re-fit the arm,
reverse this action.
SB6 Roll-in Shower Chair 14
