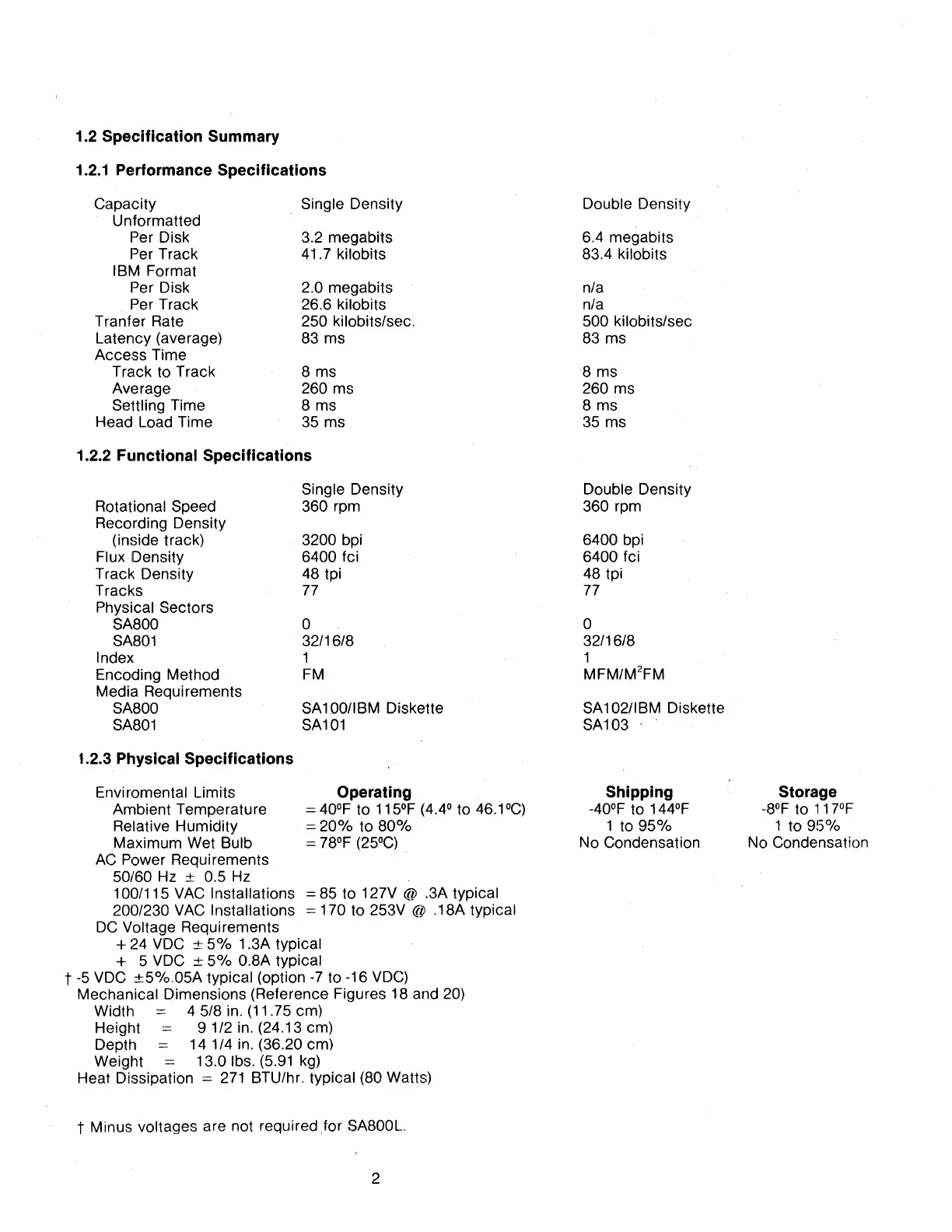

1.2 Specification Summary
1.2.1 Performance Specifications
Capacity
Unformatted
Per Disk
Per Track
IBM Format
Per Disk
Per
Track
Tranfer Rate
Latency (average)
Access Time
Track to Track
Average
Settling Time
Head Load Time
Single Density
3.2 megabits
41 .7 kilobits
2.0 megabits
26.6 kilobits
250 kilobits/sec.
83
ms
8 ms
260·ms
8 ms
35 ms
Double Density
6.4 megabits
83.4 kilobits
n/a
n/a
500 kilobits/sec
83
ms
8 ms
260 ms
8 ms
35 ms
1.2.2 Functional Specifications
Rotational Speed
Recording Density
(inside track)
Flux Density
Track Density
Tracks
Physical Sectors
SA800
SA801
Index
Encoding Method
Media Requirements
SA800
SA801
1.2.3
Physical Specifications
Single Density
360 rpm
3200 bpi
6400 fci
48 tpi
77
o
32/16/8
1
FM
SA100IIBM Diskette
SA101
Double Density
360 rpm
6400 bpi
6400 fci
48 tpi
77
o
32/16/8
1
MFM/M
2
FM
SA10211BM Diskette
SA103 .
Operating
= 40°F to 115°F (4.4° to 46.1 DC)
= 20% to 80%
=78°F (25°C) .
Enviromental Limits
Ambient Temperature
Relative
Humidity
Maximum Wet Bulb
AC Power Requirements
50/60 Hz ± 0.5 Hz
100/115 VAC Installations
= 85 to 127V @ .3A typical
200/230 VAC Installations = 170 to 253V
@ .18A typical
DC Voltage Requirements
+ :24 VDC ± 5% 1.3A typical
+ 5 VDC ± 5% 0.8A typical
t -5 VDC ±5
%
.05A typical (option
-7 to -16 VDC)
Mechanical Dimensions (Reference Figures 18 and 20)
Width = 4 5/8 in. (11.75 cm)
Height
- 9 1/2 in. (24.13 cm)
Depth
-- 14 1/4 in. (36.20 cm)
Weight
= 13.0 Ibs. (5.91 kg)
Heat Dissipation
= 271 BTU/hr. typical (80 Watts)
t Minus voltages are not required .tor SA800L.
2
Shipping
-40°F to 144°F
1 to
95%
No Condensation
Storage
-BoF to 117°F
1 to 95%
No Condensation
