Shure 520DX - Certification and Connections; Replacement Parts

4
Certification
Conforms to European EMC Directive 89/336/EEC. Meets
applicable tests and performance criteria in European Standard
EN55103 (1996) parts 1 and 2, for residential (E1) and light in-
dustrial (E2) environments.
CONNECTIONS
The RED lead is the high-impedance audio output; the
SHIELD is the audio return and case ground.
The Model 520DX Green Bullet Microphone is supplied wired
for high-impedance, unbalanced operation with the 1/4-inch
phone plug (Figure 3).

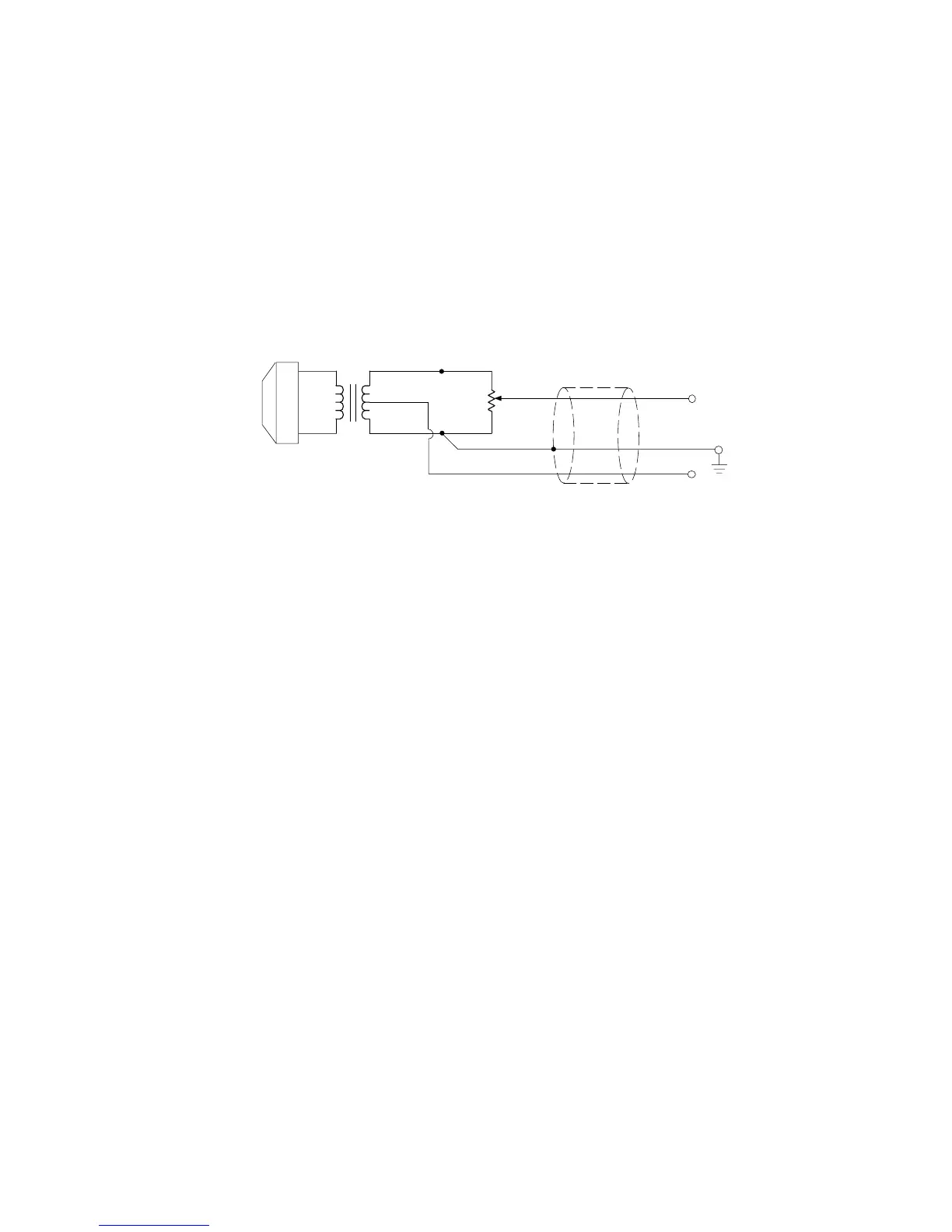

INTERNAL CONNECTIONS
UNBALANCED HIGH-IMPEDANCE OUTPUT
FIGURE 3
REPLACEMENT PARTS
Cartridge ............................................................................ R198
Cable and Plug ............................................................ 90A4486
Volume Control Knob................................................... 95A2073
Volume Control Pot...................................................... 90A4487
For additional service or parts information, please contact
Shure's Service department at 1-800-516-2525. Outside the
United States, please contact your authorized Shure Service
Center.
+
YELLOW
BLUE
WHITE
BLACK
ORANGE
RED
BROWN
RED
GRAY
BLACK
RED
SHIELD
BLACK
TIP
