Shure SM7dB User Manual

Shure Incorporated
4/12

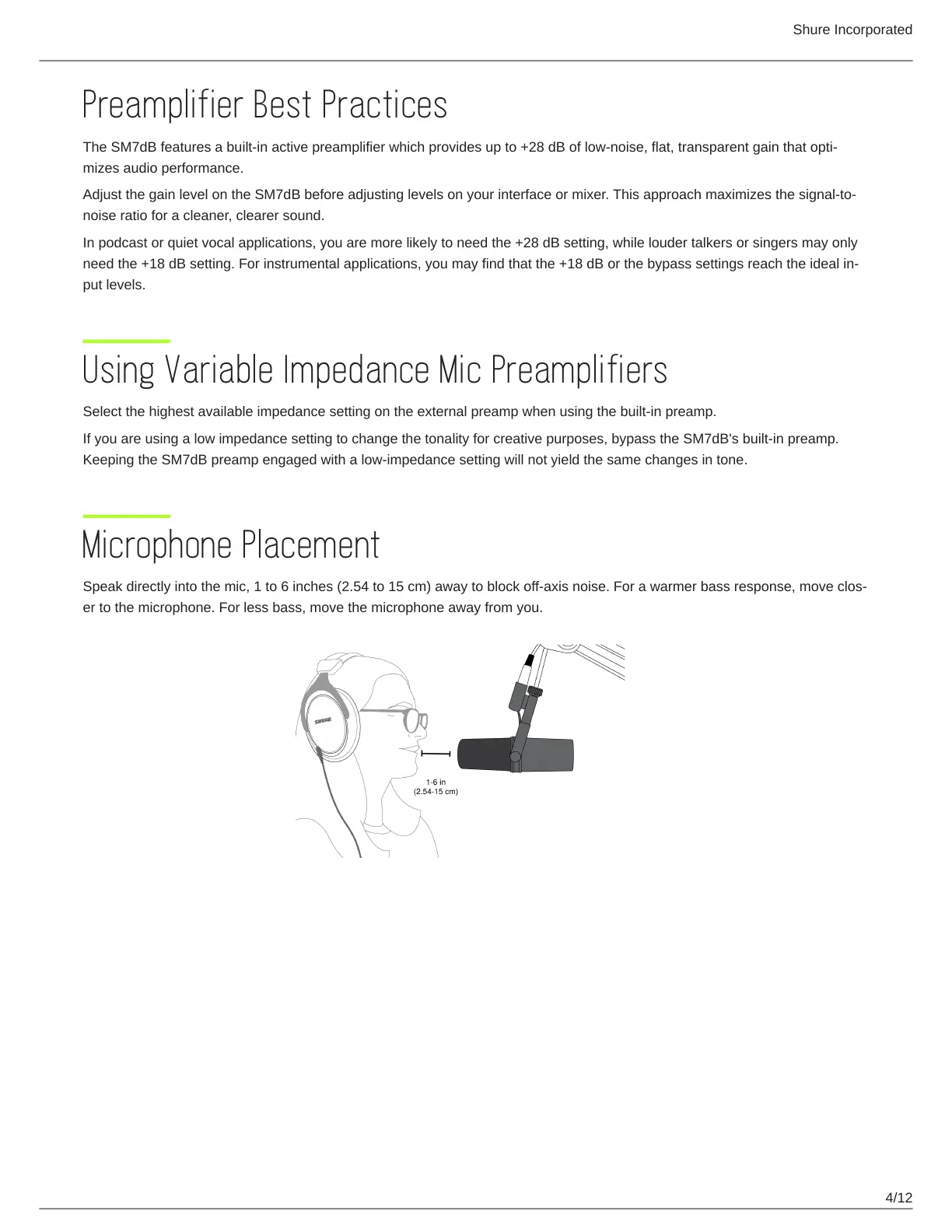

Preamplifier Best Practices
TheSM7dBfeaturesabuiltinactivepreamplifierwhichprovidesupto+28dBoflownoise,flat,transparentgainthatopti
mizes audio performance.
Adjust the gain level on the SM7dB before adjusting levels on your interface or mixer. This approach maximizes the signal-to-
noise ratio for a cleaner, clearer sound.
In podcast or quiet vocal applications, you are more likely to need the +28 dB setting, while louder talkers or singers may only
needthe+18dBsetting.Forinstrumentalapplications,youmayfindthatthe+18dBorthebypasssettingsreachtheidealin
put levels.
Using Variable Impedance Mic Preamplifiers
Select the highest available impedance setting on the external preamp when using the built-in preamp.
If you are using a low impedance setting to change the tonality for creative purposes, bypass the SM7dB's built-in preamp.
Keeping the SM7dB preamp engaged with a low-impedance setting will not yield the same changes in tone.
Microphone Placement
Speakdirectlyintothemic,1to6inches(2.54to15cm)awaytoblockoffaxisnoise.Forawarmerbassresponse,moveclos
er to the microphone. For less bass, move the microphone away from you.

Shure SM7dB Specifications

General

Type	Dynamic
Frequency Response	50 Hz to 20 kHz
Output Impedance	150 ohms
Connector	XLR
Switchable EQ	Yes
Built-in Preamp	Yes
Polar Pattern	Cardioid
Built-in Preamp Gain	28 dB
Weight	765 grams
Sensitivity	-59 dBV/Pa (1.12 mV) at 1 kHz
