Shure U1/U1L Body-Pack UHF T
ransmitter
27
25C1021 (BG)

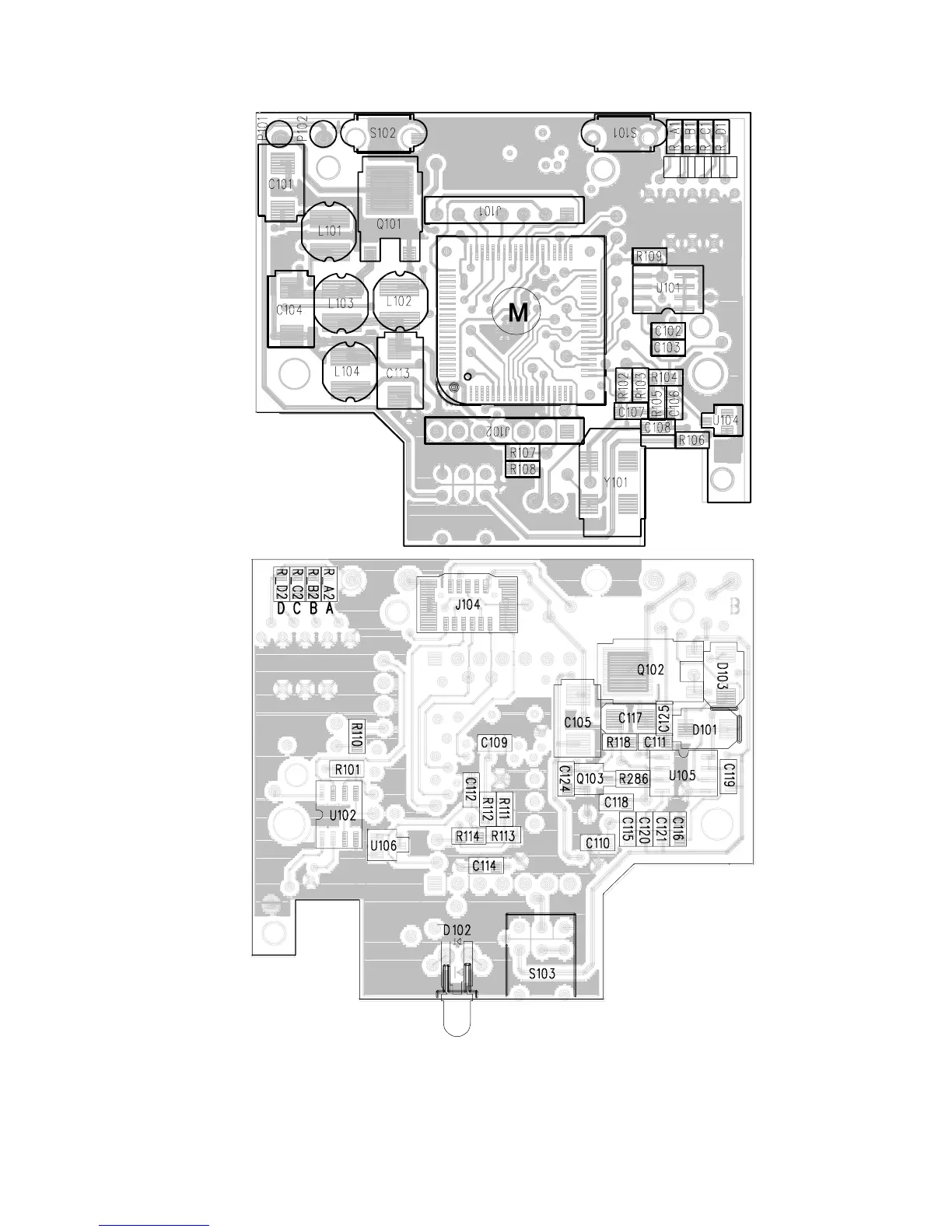

Replacement Parts and Drawings
SIDE 1
MC68H
A
B
C
D
SIDE 2
U1 / U1L Body-Pack T
ransmitter
Digital Display Board Legends and Foils
“E” and Earlier Board V
ersions
*
*Shorted with 0
Ω
resistor
.
28
30
