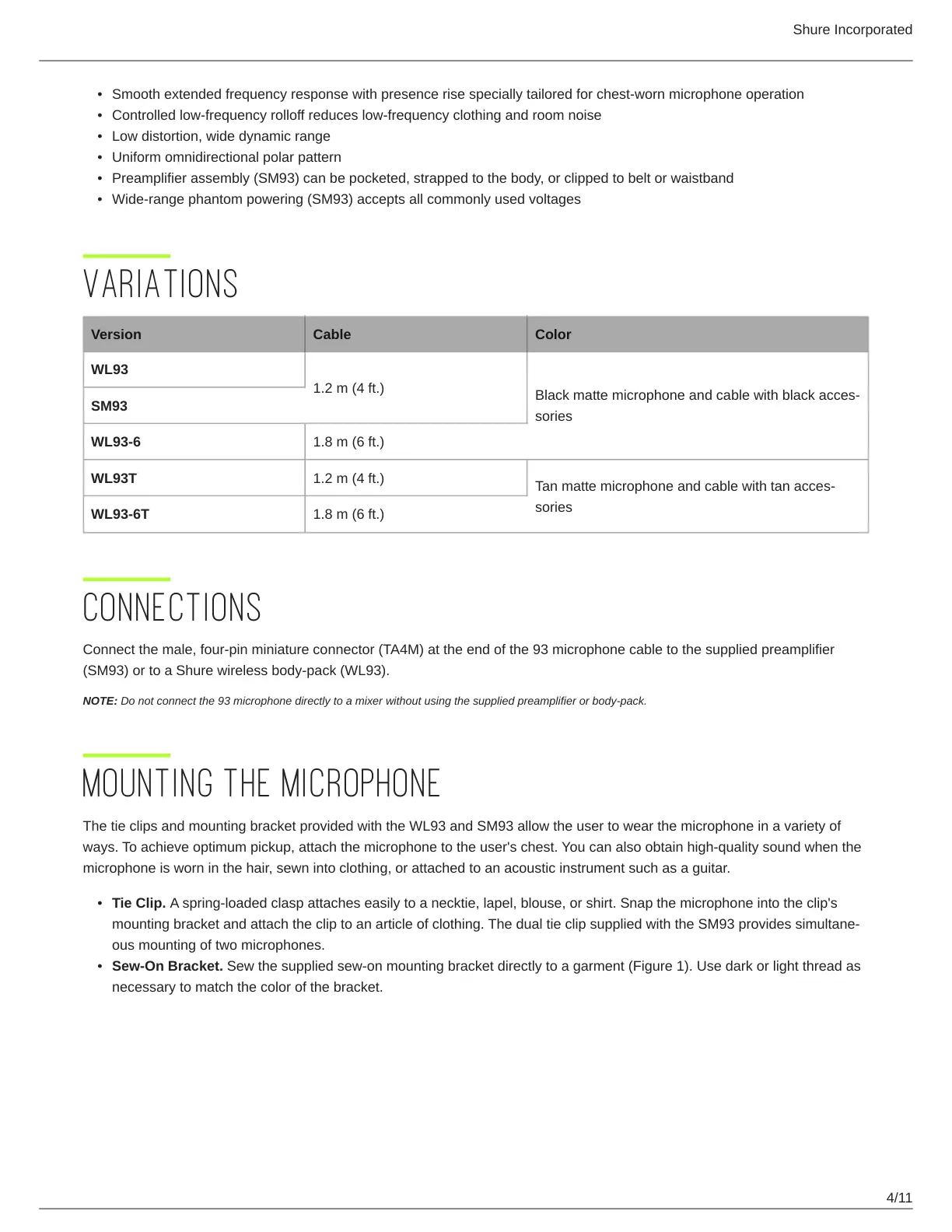

Shure Incorporated
4/11
•
•
•
•
•
•
•
•
Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
Controlled low-frequency rolloff reduces low-frequency clothing and room noise
Low distortion, wide dynamic range
Uniform omnidirectional polar pattern
Preamplifier assembly (SM93) can be pocketed, strapped to the body, or clipped to belt or waistband
Wide-range phantom powering (SM93) accepts all commonly used voltages
VARIATIONS
Version Cable Color
WL93
1.2 m (4 ft.)
Black matte microphone and cable with black acces
sories
SM93
WL93-6 1.8 m (6 ft.)
WL93T 1.2 m (4 ft.)
Tan matte microphone and cable with tan acces
sories
WL93-6T 1.8 m (6 ft.)
CONNECTIONS
Connect the male, four-pin miniature connector (TA4M) at the end of the 93 microphone cable to the supplied preamplifier
(SM93) or to a Shure wireless body-pack (WL93).
NOTE: Do not connect the 93 microphone directly to a mixer without using the supplied preamplifier or body-pack.
MOUNTING THE MICROPHONE
The tie clips and mounting bracket provided with the WL93 and SM93 allow the user to wear the microphone in a variety of
ways. To achieve optimum pickup, attach the microphone to the user's chest. You can also obtain high-quality sound when the
microphone is worn in the hair, sewn into clothing, or attached to an acoustic instrument such as a guitar.
Tie Clip. A spring-loaded clasp attaches easily to a necktie, lapel, blouse, or shirt. Snap the microphone into the clip's
mounting bracket and attach the clip to an article of clothing. The dual tie clip supplied with the SM93 provides simultane
ous mounting of two microphones.
Sew-On Bracket. Sew the supplied sew-on mounting bracket directly to a garment (Figure 1). Use dark or light thread as
necessary to match the color of the bracket.
