Shure Incorporated
6/11

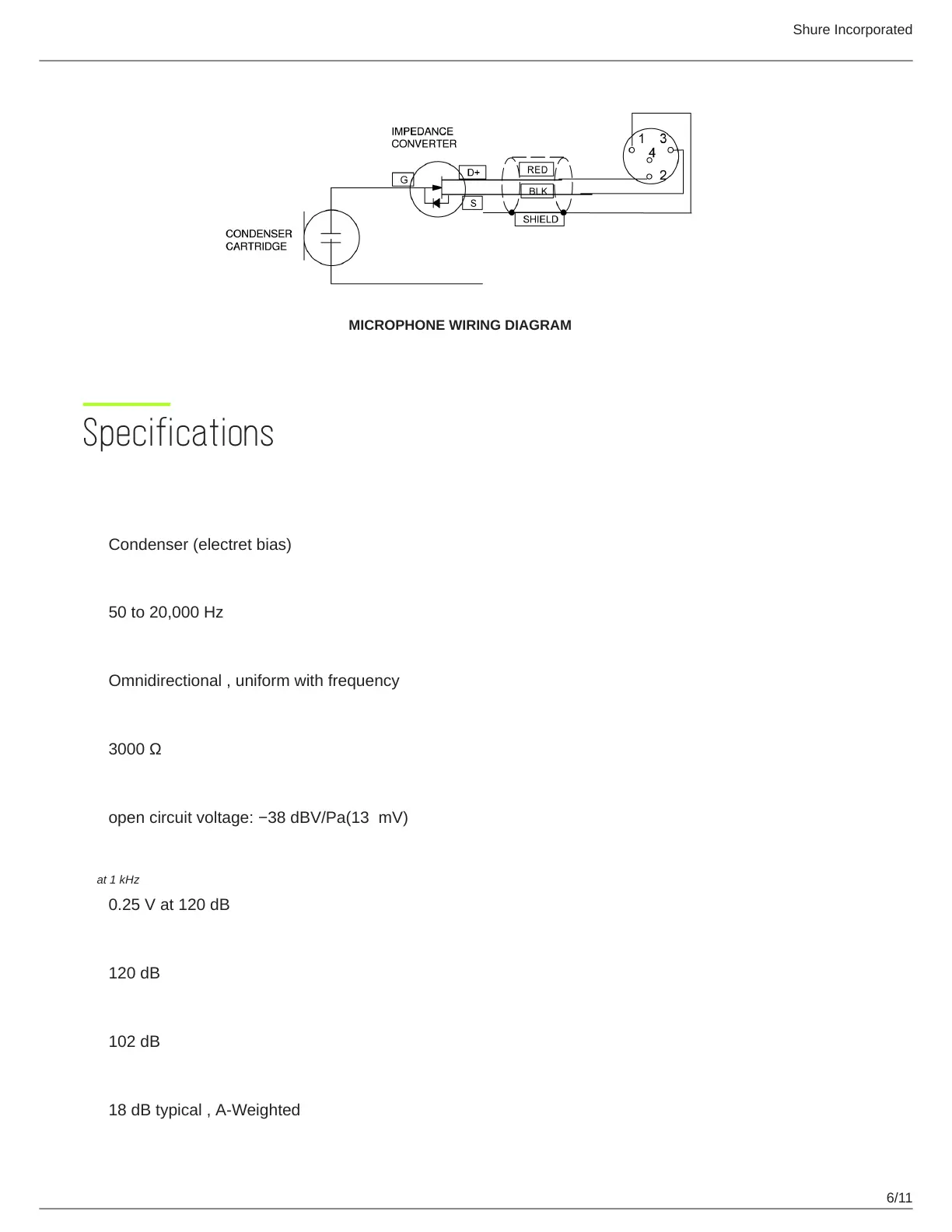

MICROPHONE WIRING DIAGRAM
Specifications
WL93 Specifications
Type
Condenser (electret bias)
Frequency Response
50 to 20,000 Hz
Polar Pattern
Omnidirectional , uniform with frequency
Output Impedance
3000 Ω
Sensitivity
open circuit voltage: −38 dBV/Pa(13 mV)
Clipping Level
at 1 kHz
0.25 V at 120 dB
Maximum SPL
120 dB
Dynamic Range (Maximum SPL, A-weighted)
102 dB
Self Noise
18 dB typical , A-Weighted

Table of Contents

Other manuals for Shure WL93

Preview: User Guide
User Guide4 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Shure WL93 and is the answer not in the manual?

Shure WL93 Specifications

General IconGeneral
Device interface-
Connectivity technologyWired
Product colorBlack
Number of products included1 pc(s)
TypeInterview microphone
Microphone frequency50 - 20000 Hz
Microphone direction typeOmnidirectional
Microphone Total Harmonic Distortion (THD)1 %
Output impedance3000 Ω
Signal-to-Noise Ratio (SNR)94 dB
Weight and Dimensions IconWeight and Dimensions
Microphone weight16 g
