Shuttle Slim-PC Barebone XH61V - Required Components for a Full System; Storage Drive Requirements; Memory Module Specifications; Processor and Operating System Needs

Product Specification
www.shuttle.eu
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
sales@shuttle.eu
Pa
g
e 12
|
3 A
p
ril 2013
©2013 Shuttle Computer Handels GmbH (Germany). All information subject to change without notice. Pictures for illustration purpose only.

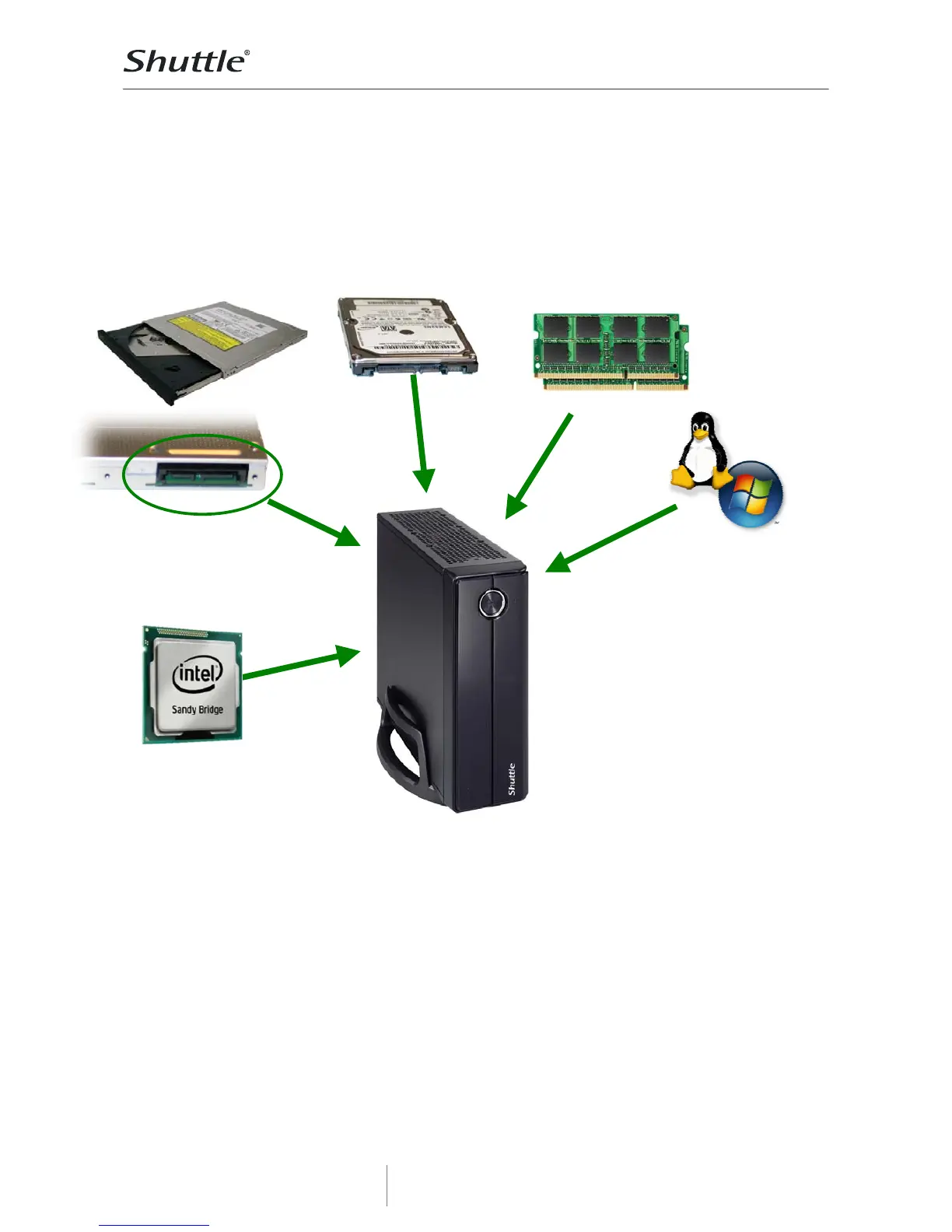

Shuttle Slim-PC Barebone XH61V – Required Components
The following components need to be added to make it a fully-configured Mini-PC:
Slim SATA DVD drive
12.7mm height
2.5” SATA-hard disk
and/or Solid State Disk (SSD)
(two drives supported,
max. height: 9.5mm and 12.7mm)
One or two DDR3-1333/1600 (SO-DIMM)
Memory modules max. 8GB each
Windows / Linux
Operating System
LGA1155 processor
TDP max. 65W
Core i7 / i5 / i3, Pentium
or Celeron
