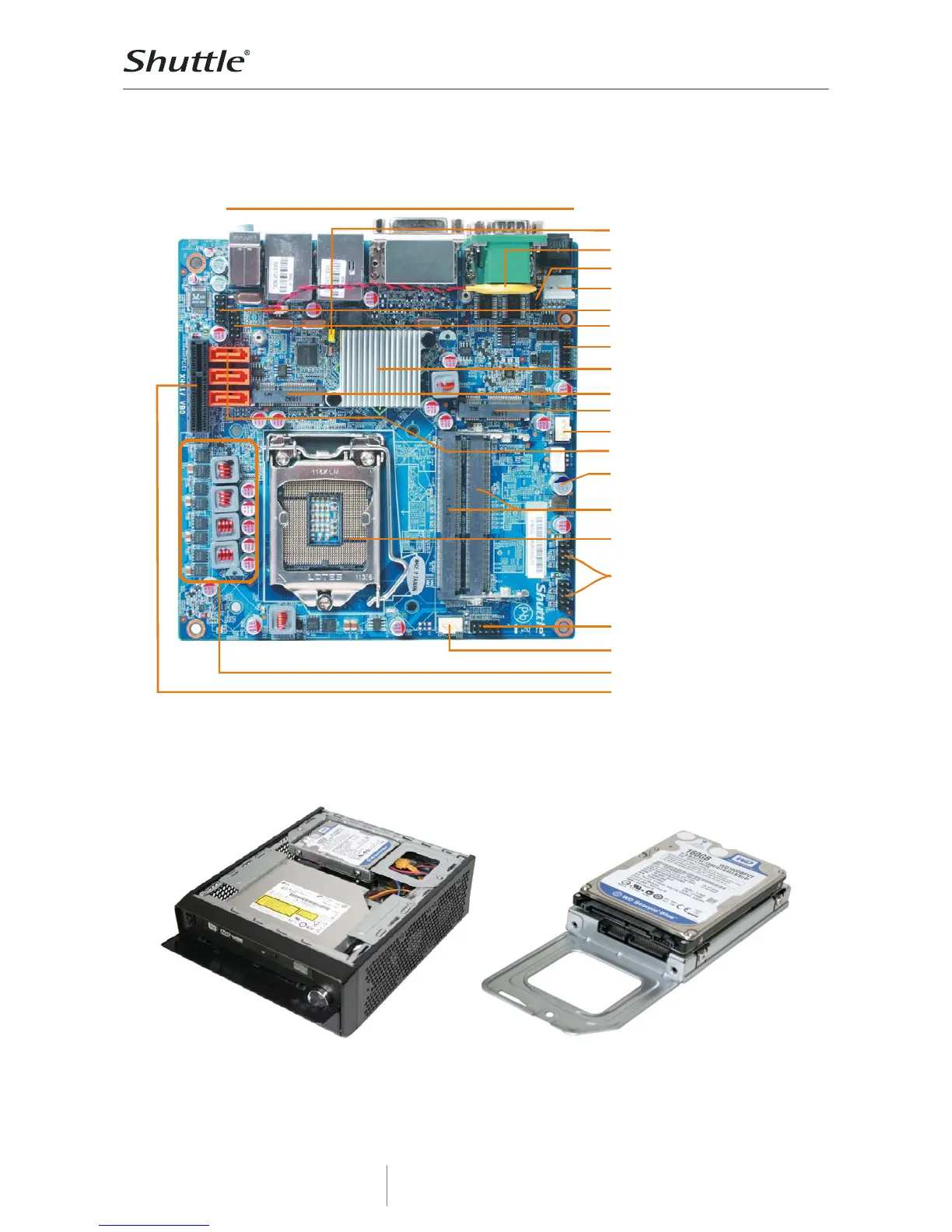

Shuttle Slim-PC Barebone XH61V – Mainboard
System fan connector
2x 204pin SO-DIMMs
support DDR3 memory
Two USB 2.0 header
Front panel connector
power button & LED
Backpanel connectors
Intel H61 chipset
CPU fan connector
19VDC power connector
CMOS battery
Mini PCIe slot (half size)
Mini PCIe slot (full size)
LGA1155 CPU socket
Voltage regulator
3x Ser. ATA connectors
LPC interface header
Audio header (front)
USB 2.0 header (front)
Solid capacitors
Clear CMOS jumper
PCI-Express X4 slot
(cannot be used)
COM port voltage jumper
Supports three drives
XH61V supports one optical drive in 5.25” slim-line format and two 2.5” drives (e.g. hard disk and SSD). For the
second 2.5” drive you will need an additional SATA cable and mounting screws.
