SiAECOSYS VOTOL EM100 User Manual

SiAECOSYS V2
11

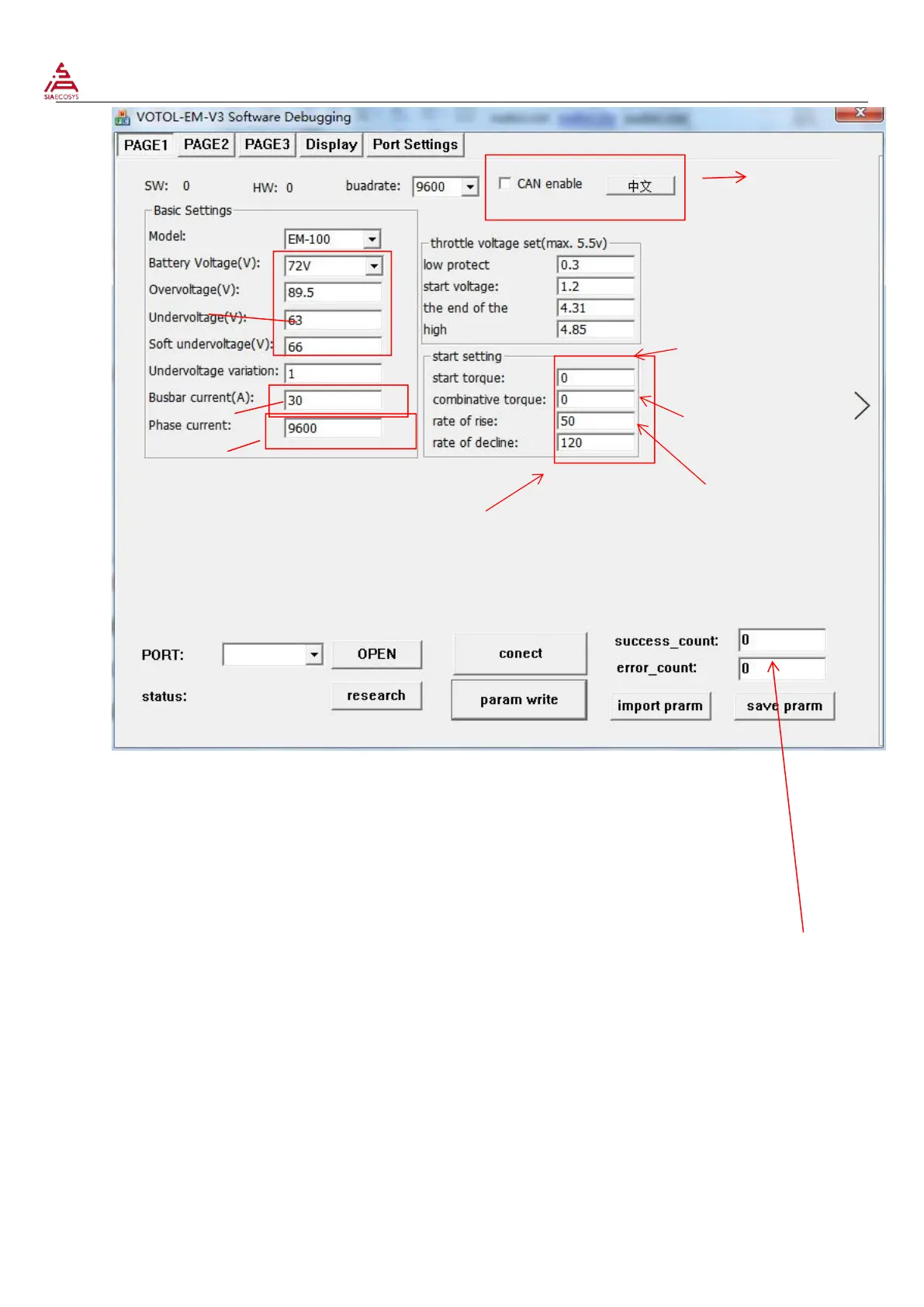

Steps to connect the upper computer：
1. Power on the controller,Connect the electric door lock, connect the serial port to the controller
adapter cable and plug it into the computer
2.Open the upper computer debugging interface, as shown in the figure above. In the setting
interface 1, click to search again. After the com? Appears on the device port, click to open the
serial port. The device status shows that it is connected. Click to connect the controller. The
corresponding number will pop up here and the connection success data will pop up. The
connection is successful.
1.1：Voltage equipment
1.1.1、Battery voltage setting: Corresponding to the ECU voltage, over pressure is not allowed.
1.1.2、Lead-acid battery over voltage, under voltage, soft under voltage basic value default: due to software
settings defects, the original voltage compensation +1V.
1.1.3、The lithium battery is set according to the actual lithium battery parameter value. Due to software
setting defects, the original voltage compensation +1V. The original lithium battery parameters are
compensated for +1V, and the total compensation is +2V.
1.1.4、Attention
1.Undervoltage,overvoltage
selected by default +1V
2.overvoltage selected by
default+2V
Busbar current≤ECU Specification
current value
No change allowed
Usually 0
does not change
0-350, the larger the start
delay, the more obvious
10-250, the greater the
acceleration, the faster
10-200, the larger the looser the inertia is
COM3
Connected
21
1. CAN debugging Switch
2. Chinese/English Switch

SiAECOSYS VOTOL EM100 Specifications

General

Brand	SiAECOSYS
Model	VOTOL EM100
Category	Controller
Language	English
