I - ASSEMBLING THE INLET VALVE
II - ASSEMBLING THE OUTLET VALVE

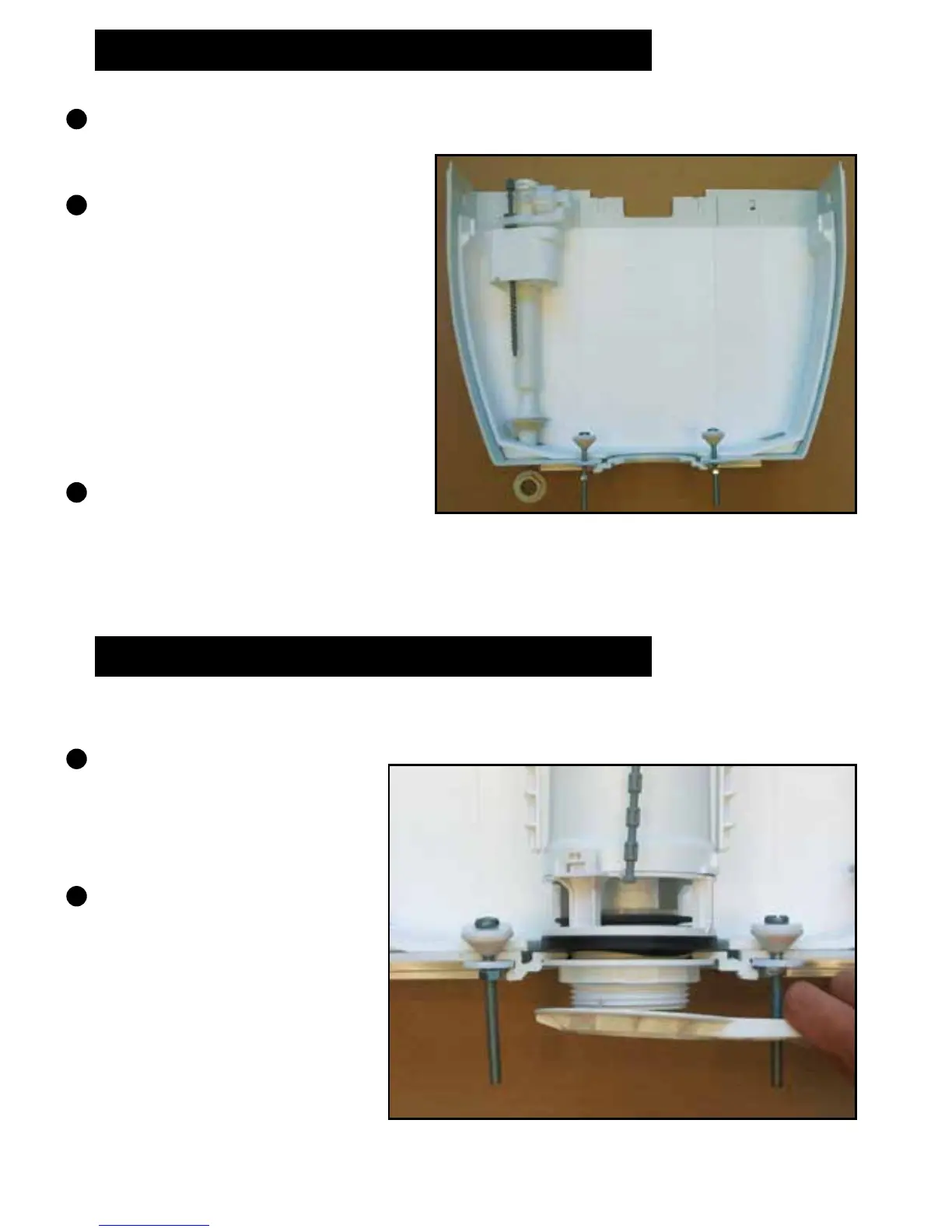

Place Inlet valve (F) through Inlet
hole with inlet Rubber Washer
(G) inside the cistern.
Secure with backnut (H) but
ensure float moves freely up
and down valve body.
NB : Manually screw the backnut
until it is in contact with the
ceramic. If necessary give an
extra quarter turn (maximum).
Excessive tightening can
damage the mechanism and
would not be covered by the
guarantee.
Slide bolt (J) through washer
(K) and sealing washer (L) then
place through cistern and secure
with washer (K) and nut (M)
using adjustable spanner.
Assemble the valve body
(B) through cistern with
rubber washer (C) on
inside of the cistern.
Secure Fixing nut (D).
NB : Manually screw the
flush valve nut until it is in
contact with the ceramic.
If necessary give an extra
quarter turn (maximum)
with the spanner (I).
Excessive tightening can
damage the mechanism
and would not be covered
by the guarantee.
1
2
3
1
2
An approved double check valve or some other no
less effective backflow prevention device shall be
fitted at the point of connection(s) between the
supply and the fitting.
