Siamp STORM 33A - Assembly - Cistern to Pan; Valve Height Adjustment

Try the lid on the cistern to see if
the valve is too high or too low :
To adjust :
Remove clips (x2) (1)
Unclip rod (2)
Adjust to correct height
Replace clips (x2) (1)
Push down at point (3) and clip
rod in at (2).

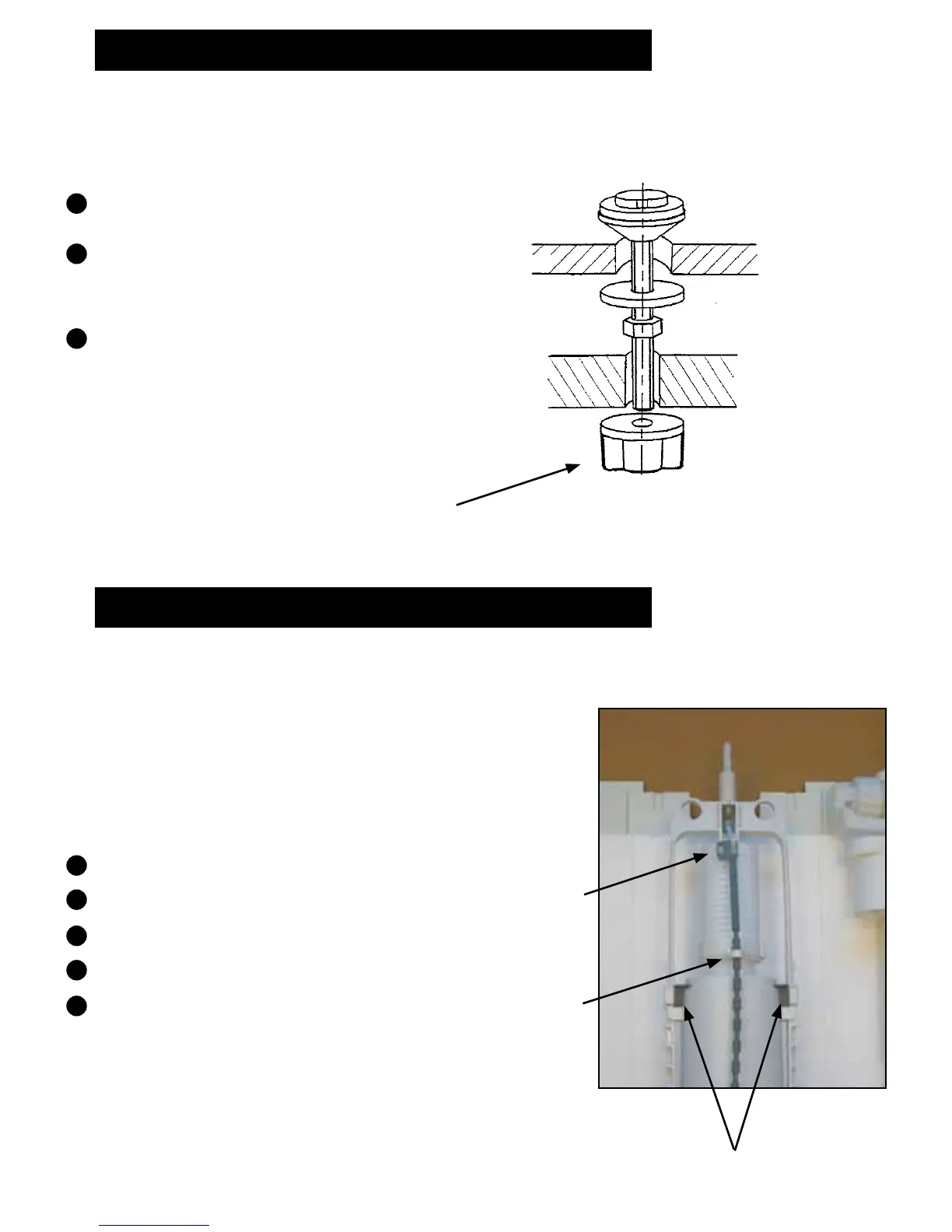

III - ASSEMBLING CISTERN TO PAN
Slide sealing gasket (E) over fixing nut
Slide cistern onto W.C. backplate by
locating screws through W.C.
Secure using butterfly nut (N).
IV - ADJUSTMENT OF VALVE HEIGHT
4
5
Butterfly
nut (N)
Cistern
Pan
(3)
(2)
(1)
5
1
2
3
1
2
3
