13. FIRE-FIGHTING
WARNING!
If this machine catches fire, only use powder extinguishers or, alternatively, CO
2
extinguishers to put out the
flames.

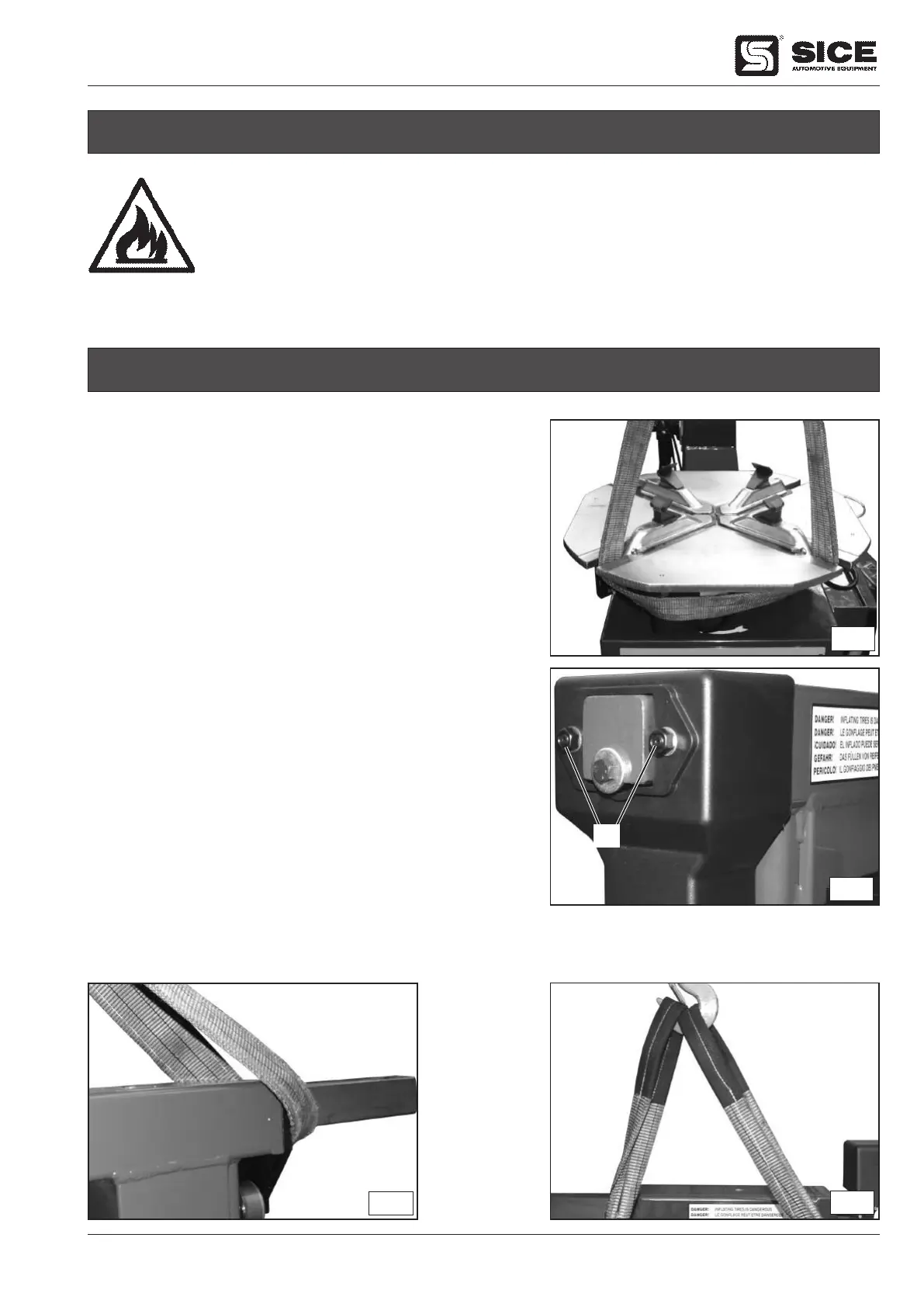

14. MOVING THE MACHINE
Follow the procedures outlined below when moving the machine:
1) Close the turntable grippers all the way towards the centre.
2) Turn the table so that the its straight sides are lined up the projected line
of the side panels (See Fig. O/1).
3) Disconnect all power sources.
4) Clamp the pedal (7, Fig. G) with a wedge underneath it.
5) Remove the horizontal arm casing by unscrewing the fixing nuts (1, Fig.
O/2).
6) Move the horizontal arm (11, Fig. G) all the way back.
7) Sling the machine with lifting straps at least 60 mm wide.
8) Pass the first strap behind the horizontal arm as shown in Fig. O/3.
9) Pass the second strap between the two front slots on the turntable plate as
shown in Fig. O/1.
10) Gather the ends of the slings in a suitable ring above the machine (see
Fig. O/4).
11) Hoist and move the machine with a sufficiently strong lift truck.
O/1
1
O/2
O/3
O/4
