31
Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350

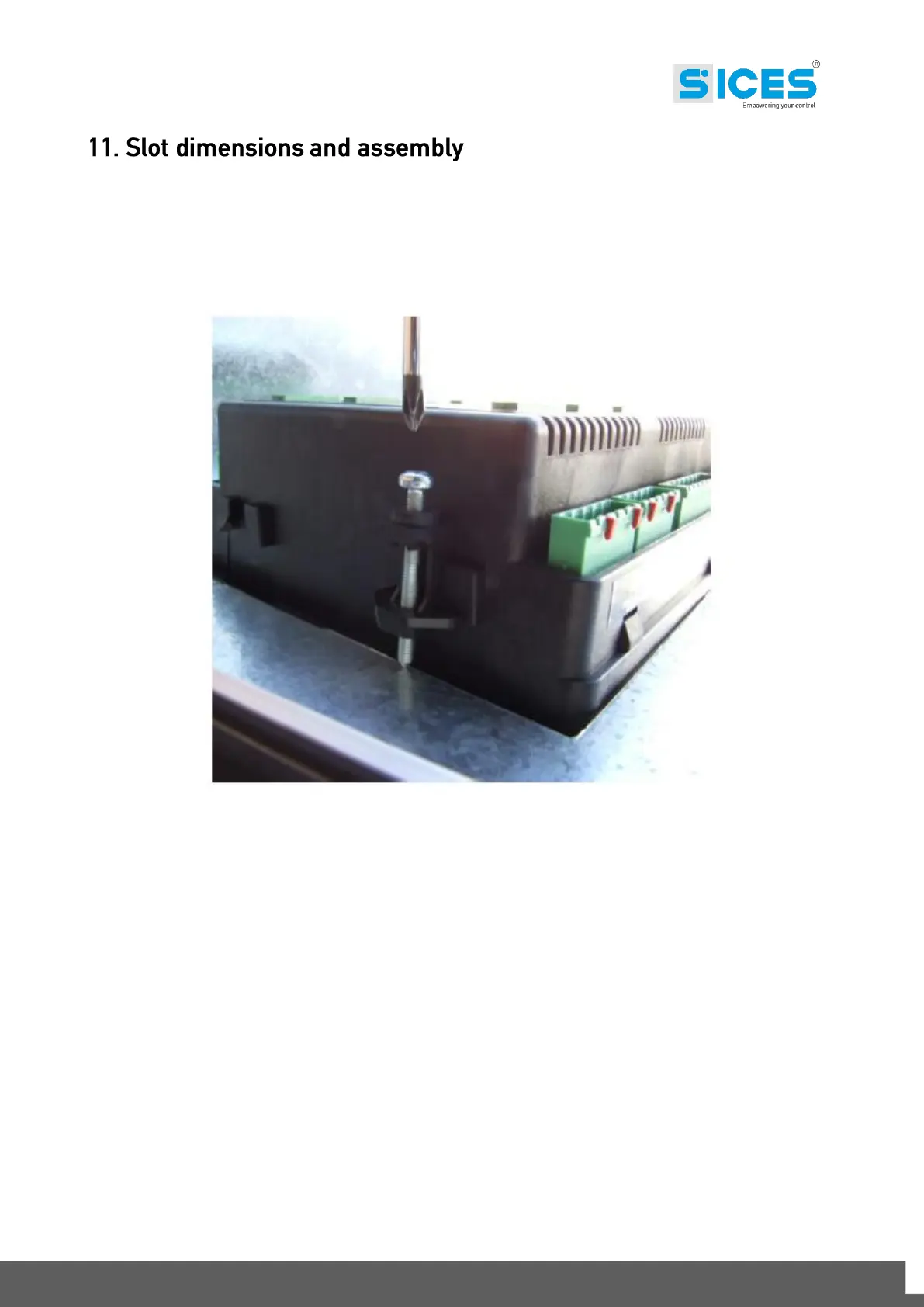

The slot dimensions for the fastening are 218x159mm. The assembly is carried out by means of four
hooks with tightening screws: once the device is installed, insert the hooks in the slots on the sides
and tighten the screws. Pay attention not to tighten the screws excessively in order to avoid the
damage of the hook slots on the device case.
