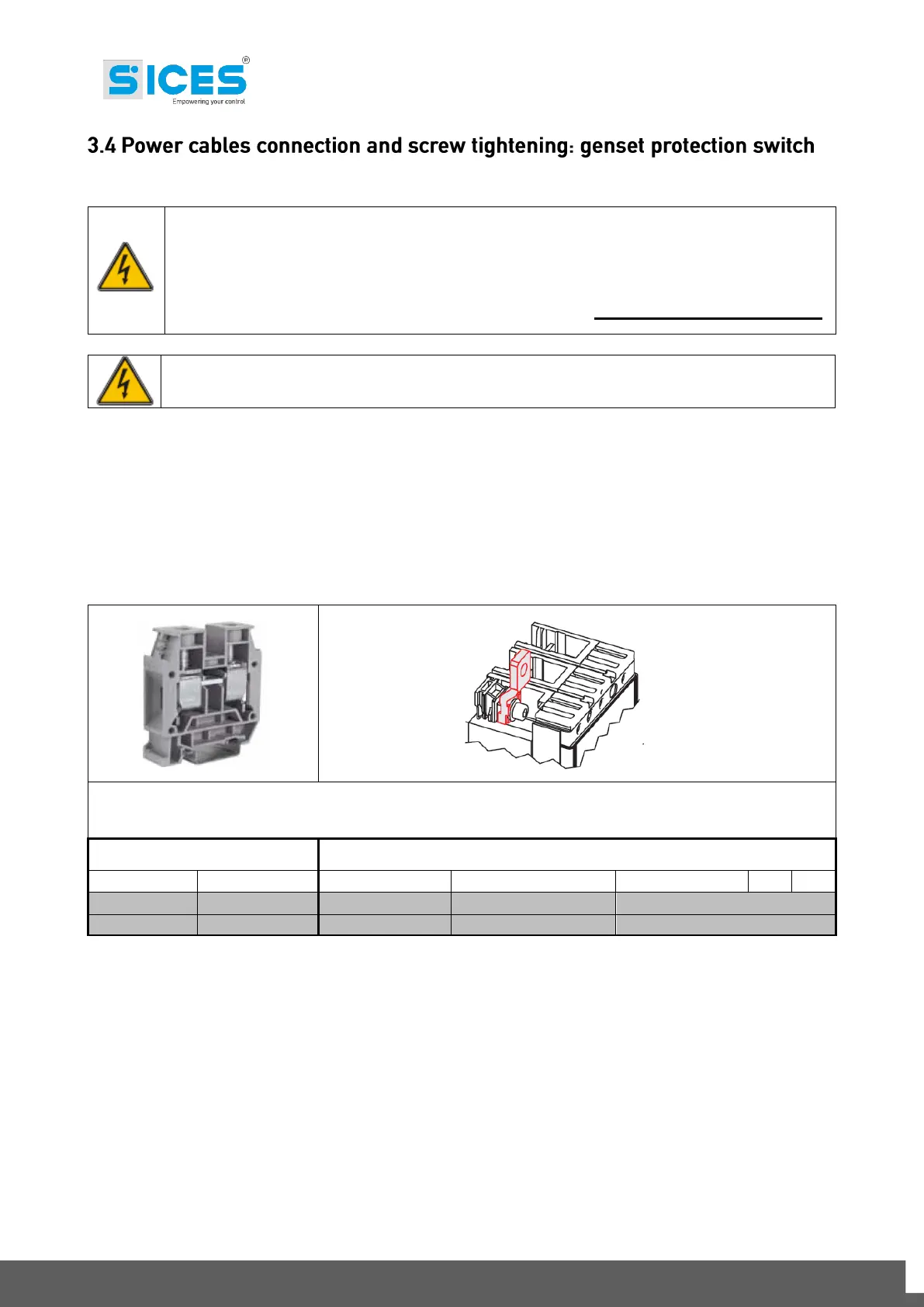

Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350
WARNING: Before connecting the phase and neutral conductors of MAINS,
GENSET and LOAD to the control panel, it is the installer responsibility to check
the type of distribution system of the plant.
Pay special attention to check the function of the neutral conductor. If it takes on
the combined neutral and protection function (PEN), IT MUST NOT BE SELECTED.
A wrong or missed neutral conductor connection may cause serious damages to
the Control Panel and to the distribution plants connected to it.
For powers (35÷80kVA), the power cables connection has to be carried out in the terminal board.
For the remaining powers (100÷1580kVA), the power cables connection has to be carried out in the
extension bars.
During the closing phase of the screws that tighten the cable or connection terminals on the bars,
look out not to overtighten the screws, but follow the values of the following table:
SCREW TIGHTENING TORQUE (MAX)
TERMINAL BOARD (35÷80kVA)
ABB AUTOMATIC SWITCH (100÷1580kVA)
16mm
2
35mm
2
XT2
T5 (200-250kVA)
T5 (300-400kVA)
T7
T8
M8
M10
M12
2 Nm
2.5 Nm
20 Nm
35 Nm
65 Nm
