User’s Manual GC315xx-GC400xx 15
The top status bar contains information on navigation, times and/or some status information.
The current mode is shown in the relevant field of the top status bar (1a).
The mode identifier (1a), and the page identifier (1b) identify and refer to the page so there is no chance
of error.
The system status (2) displays part of the information of page S.01(STATUS) that is useful to the
operator, as it can be displayed even if other pages or display mode are being accessed.
In some pages, pressing the Esc/SHIFT button replaces the upper status bar with a System
Status message all the time the button is held down. By double clicking the Esc/SHIFT button,
the upper status bar is replaced with a System Status message so long as you remain on that page. If
the message is unavailable, the bar is cleared and restored when the button is released.
E.01 ENGINE
Oil Press. (bar):
XX
Coolant Temp. (°C):
XX
XX
1
2
KEY:
1 - Status bar
2 - Data area

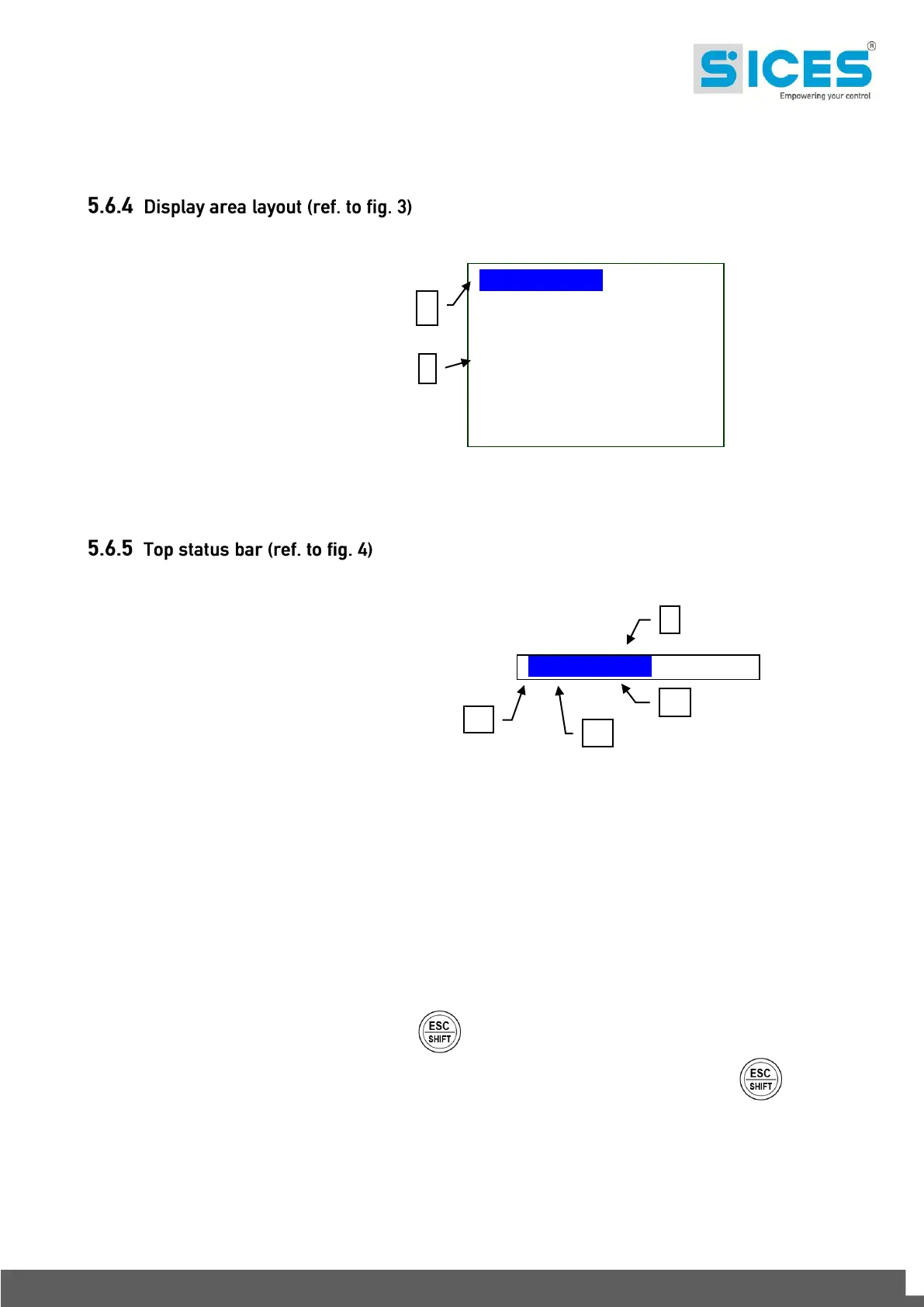

Fig. 3 - Display areas
Fig. 4 - Top status bar
1b
1c
1a
KEY:
1a - Mode identifier
1b - Page identifier
1c - Page title
2 – System status
E.02 ENGINE
2
