18 User’s Manual GC315xx-GC400xx

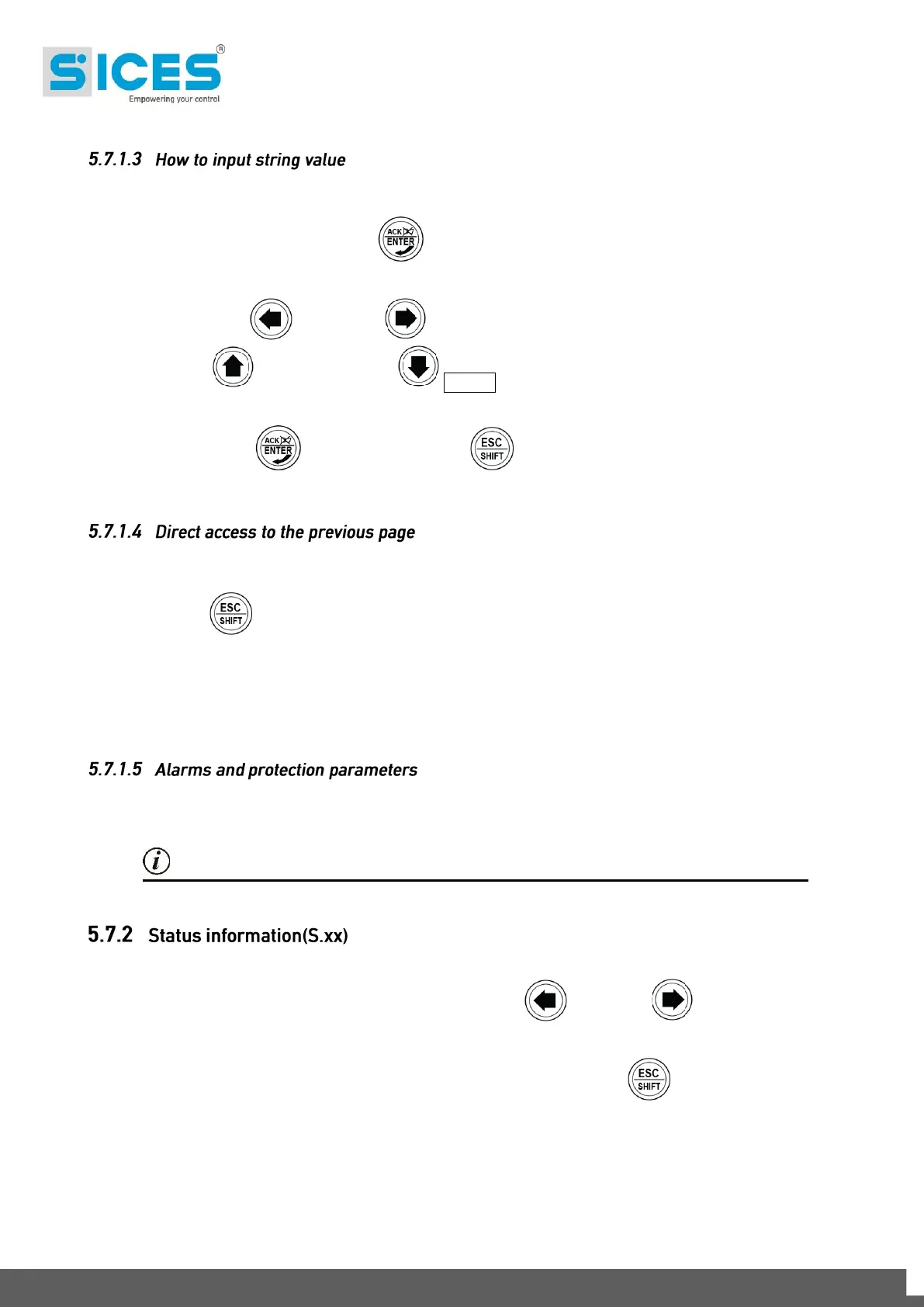

Some parameters require the setting or modification of the alphanumeric strings.
In this case, pressing ACK/ENTER makes the square brackets [...] around the variable flash,
and a cursor appears under the first character of the string.
Using the LEFT and RIGHT buttons, you can select which character to change. Then,
use the UP Ref. 1a and DOWN Ref. 1a buttons to change the character selected. Repeat
the procedure for each character that needs changing.
Use ACK/ENTER (confirm) or Esc/SHIFT (abort) to end the procedure.
You can open the last programming page displayed directly. This is possible if, when exiting
programming mode, instead of going back though the menus until you exit programming, you hold down
Esc/SHIFT for approximately 2 seconds.
It is also possible to obtain the same result entering programming mode after Gen-set automatically
exited programming. This occurs if, for 60 consecutive seconds, no operations are
performed on the programming or if the operating mode is changed to “MAN” or “AUTO”.
Protections and alarms can generally be configured using dedicated variables. Generally, the trip
time can also be configured.
INFORMATION! Setting the trip time of the parameters to 0 disables the protection.
In this mode, the information on the system status are supplied.
You can scroll through the various pages using the LEFT and RIGHT buttons.
Page S.01 (STATUS) shows system status information. Part of this information are displayed
in the upper title bar if you press and hold the ESC/SHIFT button.
The page S.02 (ANOMALIES) is automatically displayed in case a new anomaly arises. For
every anomaly, it is shown:
A letter that identify the type:
o “A”: Alarm (block).
