KTX-WB9114125AZZZZ | KTX Prime
콘트라스트 센서
결선도
Cd-387
+(L+)
Q/IN1
-(M)
BN
WH
BU
1
2
3
Q/C
BK
4
IN2
GY
5
조작 컨셉

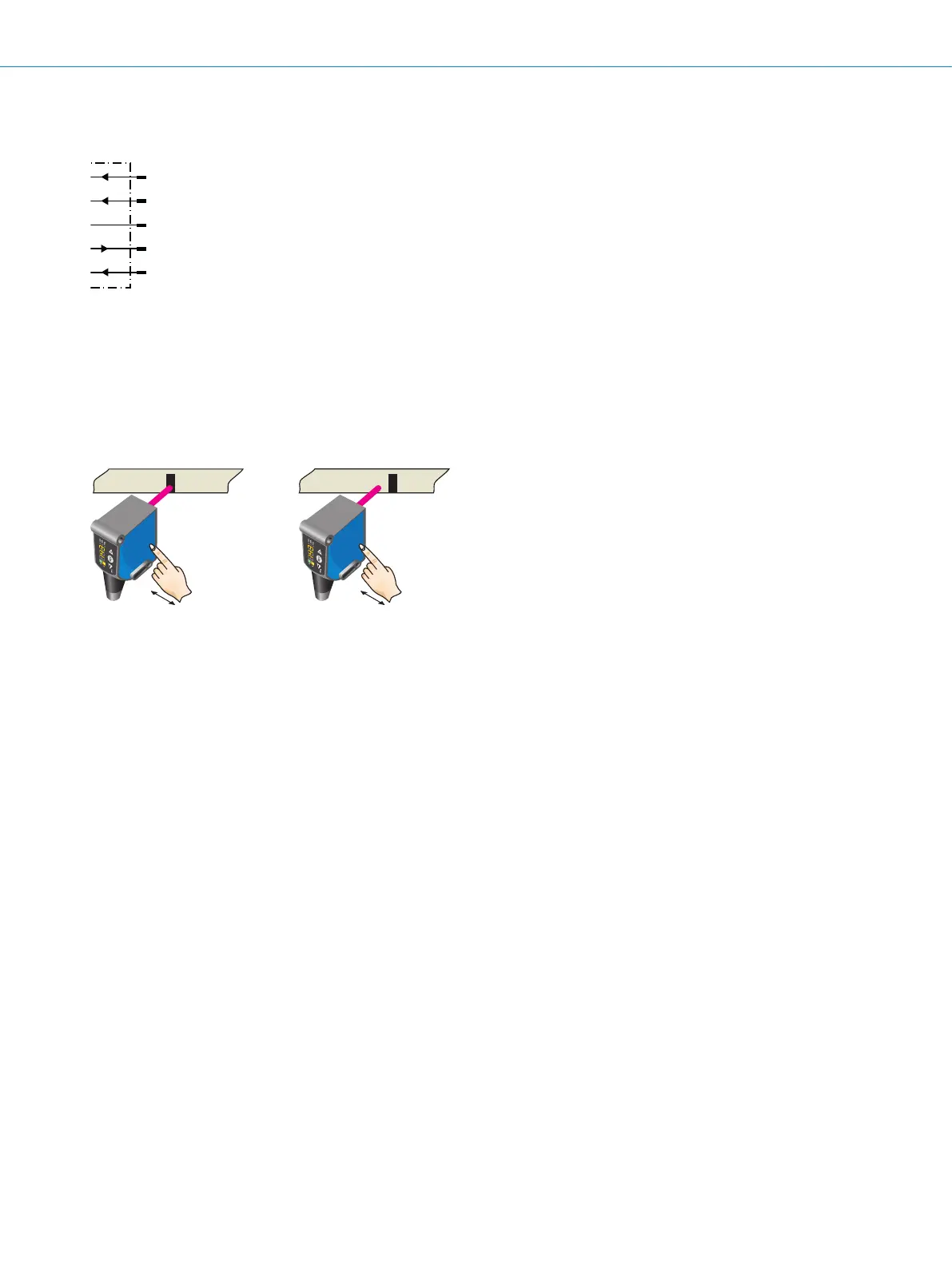

KTS/KTX Prime - 스위칭 임계치 조정(2점 티치인)
When setting the contrasts to be
detected, “1st” flashes.
Press set button.
When setting the contrasts to be
detected, “2nd” flashes. Press set button.
The Quality of Teach is displayed.
Suitable for manual positioning of the object to be detected, e.g. marks and background.
1. Position mark 2. Position background
6 레지스트레이션 센서 | SICK 제품 데이터 시트 | 2023-03-06 17:00:49
예고 없이 변경 가능

SICK KTX-WB9214125A Series Specifications

General

Brand	SICK
Model	KTX-WB9214125A Series
Category	Security Sensors
Language	English
