1. Ensure the voltage supply is not connected.
2. Connect the device according to the connection diagram.

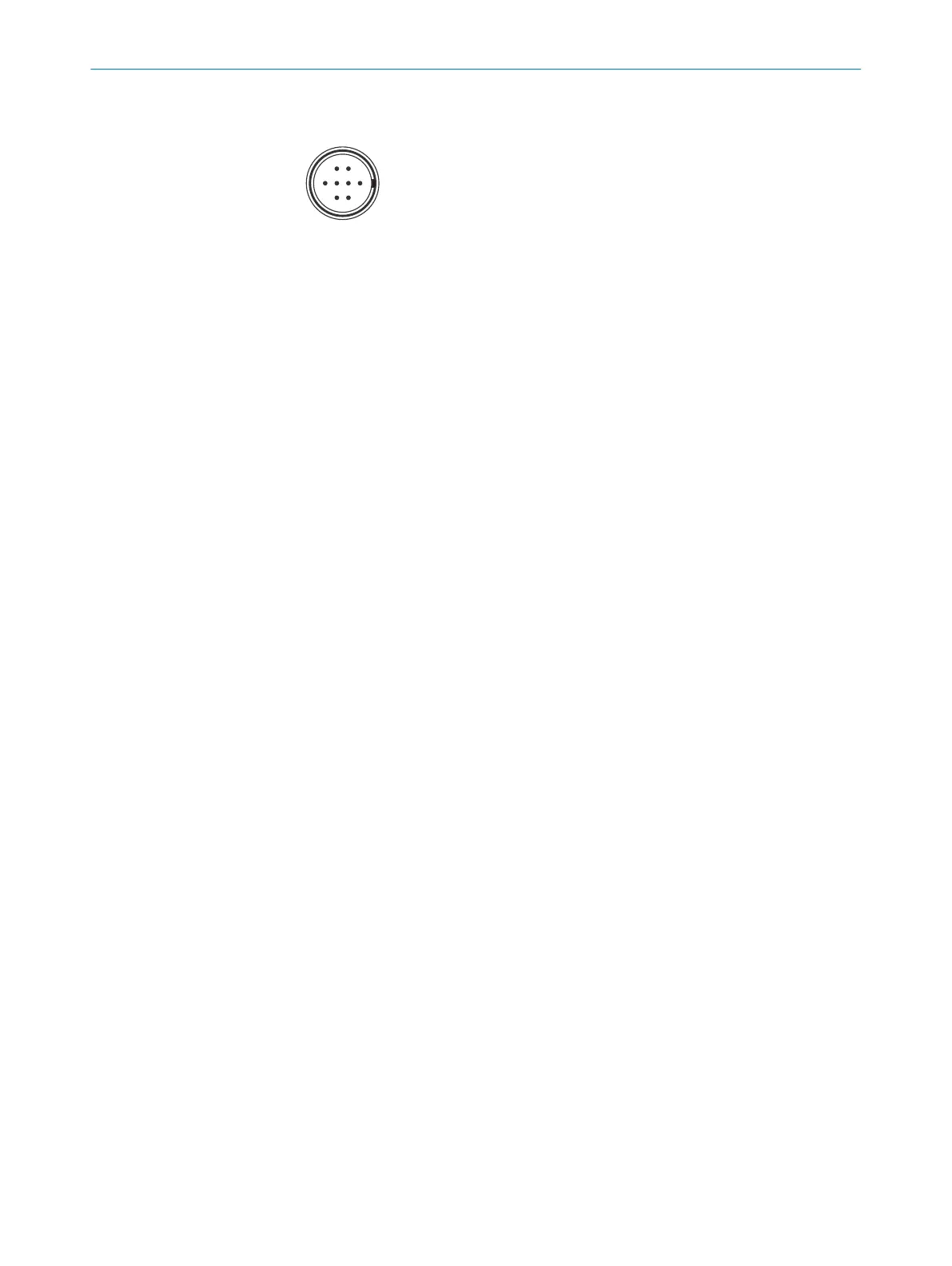

Figure 2: Pin assignment of the 8-pin connection (Hirose HR25)
1
Ground (GND)
2
Flash output, with optocoupler (-)
3
General Purpose I/O (GPIO) 1
4
Trigger input, with optocoupler (-)
5
Flash output, with optocoupler (+)
6
General Purpose I/O (GPIO) 2
7
Trigger input, with optocoupler (+)
8
Supply voltage input (V) 12-24 V
ELECTRICAL INSTALLATION 6
8025786/0000/2020-07 | SICK O P E R A T I N G I N S T R U C T I O N S | picoCam2
