10 Technical data
NOTE
The relevant online data sheet for your product, including technical data, dimensional
drawing, and connection diagrams can be downloaded, saved, and printed from the
Internet:
•
www.sick.com/picoCam2
Please note: This documentation may contain further technical data.
10.1
Dimensional drawing
1
2
3
4
5.5 (0.22)
9 (0.35)
29
(1.14)
+0.50
(0.02)
0
24 (0.94)
42.6 (1.68)
13.6 (0.54)
49.4 (1.94)
47.8 (1.88)
(5.2 (0.20))
7.4 (0.29)
0.2 (0.01)
25 (0.98)2 (0.08)
15.6
(0.61)
29 (1.14)
14.5 (0.57)
20 (0.79)
7.4 (0.29)
10 (0.39)

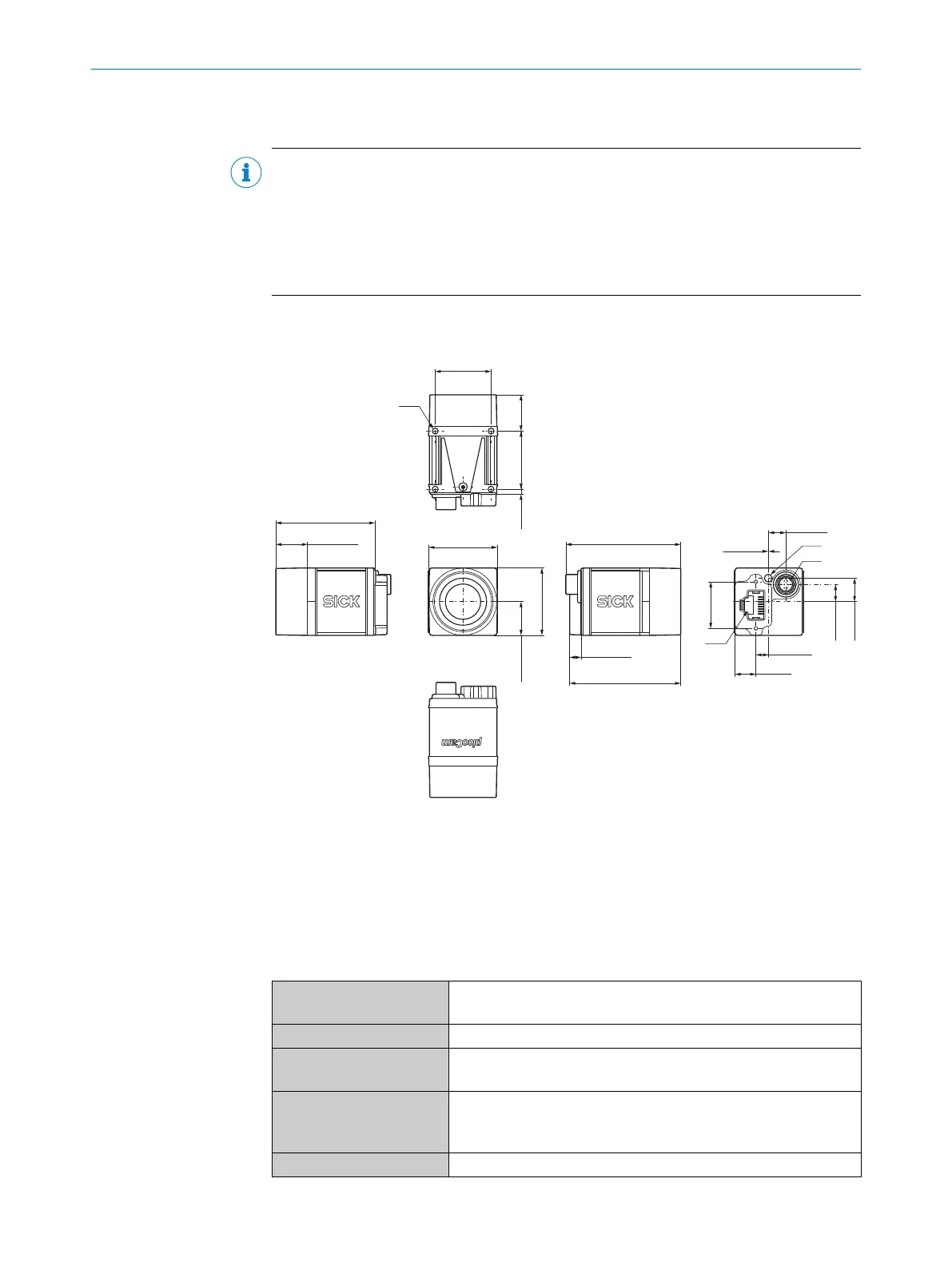

Figure 3: Device dimensions; unit: mm (inch), decimal separator: period
1
M3 blind-hole thread, 3 mm deep (4x), for mounting
2
LED for status display
3
Power I/O connection, male connector, M12, 6-pin, Hirose
4
Gigabit Ethernet connection, RJ45, 8-pin
10.2 Features
Technology 2D snapshot
Color for I2DxxxC
Product category Streaming, flexible
Sensor I2DxxxC: CMOS Color
I2DxxxM: CMOS Monochrome
Sensor used I2Dx01x: Sony IMX273
I2Dx03x: Sony IMX265
I2Dx05x: Sony IMX264
Shutter technology Global shutter
