SICK SKS36S User Manual

SKS36S
Conical
Shaft
SKM36S
Conical
Shaft
SKS36S
Stand
Alone
SKM36S
Stand
Alone
Permissible shaft movement (see mounting
suggestion)
-
Static (radial/axial) ± 0.1 mm/–0.4
mm, +0.2 mm
-
Dynamic (radial/axial) ± 0.05 mm/± 0.1
mm
-
Shaft loading capacity (radial/axial) - 10 Nm/5 Nm
Mission time of ball bearings
2
3,6 x 10
9
revolutions 2 x 10
9
revolutions
Working temperature range -20 … + 110 °C -20 … + 100 °C
Storage temperature range (without pack‐
aging)
-40 … + 125 °C
Permissible relative humidity (without con‐
densation)
90%
Resistance to shocks
1
100 g/6 ms
Resistance to vibrations
2
50 g/10 … 2000 Hz
30 g/10 … 2000 Hz (applies to SKM36S-
HFA0-S01, SKS36S-HFA0-S01)
Protection class
3
IP 50 IP 65
EMC
4
Operating voltage 7 … 12 V
Recommended operating voltage 8 V
Max. operating current w/o load 60 mA
Available storage area in EEPROM
5
1,792 byte
Interface signals, process data channel analog, differential
Interface signals, parameter channel (RS
485)
digital
Type identifier (HIPERFACE® command
52h)
32h 37h 32h 37h
Safety characteristics
Safety integrity level
6
SIL2 (IEC 61508), SILCL2 (EN 62061)
Category 3 (EN ISO 13849)
Test rate Not required
Maximum demand rate continuous (analog signals)
Performance level
6
PL d (EN ISO 13849)
PFH
D
: probability of dangerous failure
per hour
7
1,3 x 10
-8
revolutions
T
M
(mission time)
2
20 years (EN ISO 13849)
MTTF
D
: Mean time to dangerous failure 874 years (EN ISO 13849)
1
In accordance with EN 60068-2-27
2
In accordance withEN 60068-2-6
3
In accordance with IEC 60529, with mating plug inserted and cover closed
4
In accordance with EN 61000-6-2, EN 61000-6-4 and EN 61326-1. EMC is ensured if
the motor feedback system is fitted in a conductive housing connected to the central
grounding point of the motor controller via cable shielding. The GND-(0V) connection of
the supply voltage is also grounded. If other shielding concepts are used, the user must
perform his own tests.
5
If the electronic type label is used in effective combination with numeric controls, patent
EP 425 912 B 2 must be observed; that does not apply if the effective connection is
established using speed controllers.
6
For more detailed information on the exact configuration of your machine/unit, please
consult your relevant SICK branch office.
7
The values displayed apply to a diagnostic degree of coverage of 90%, which must be
achieved by the external drive system.
2
The mission time can also be limited by the bearing service life specific to the application.

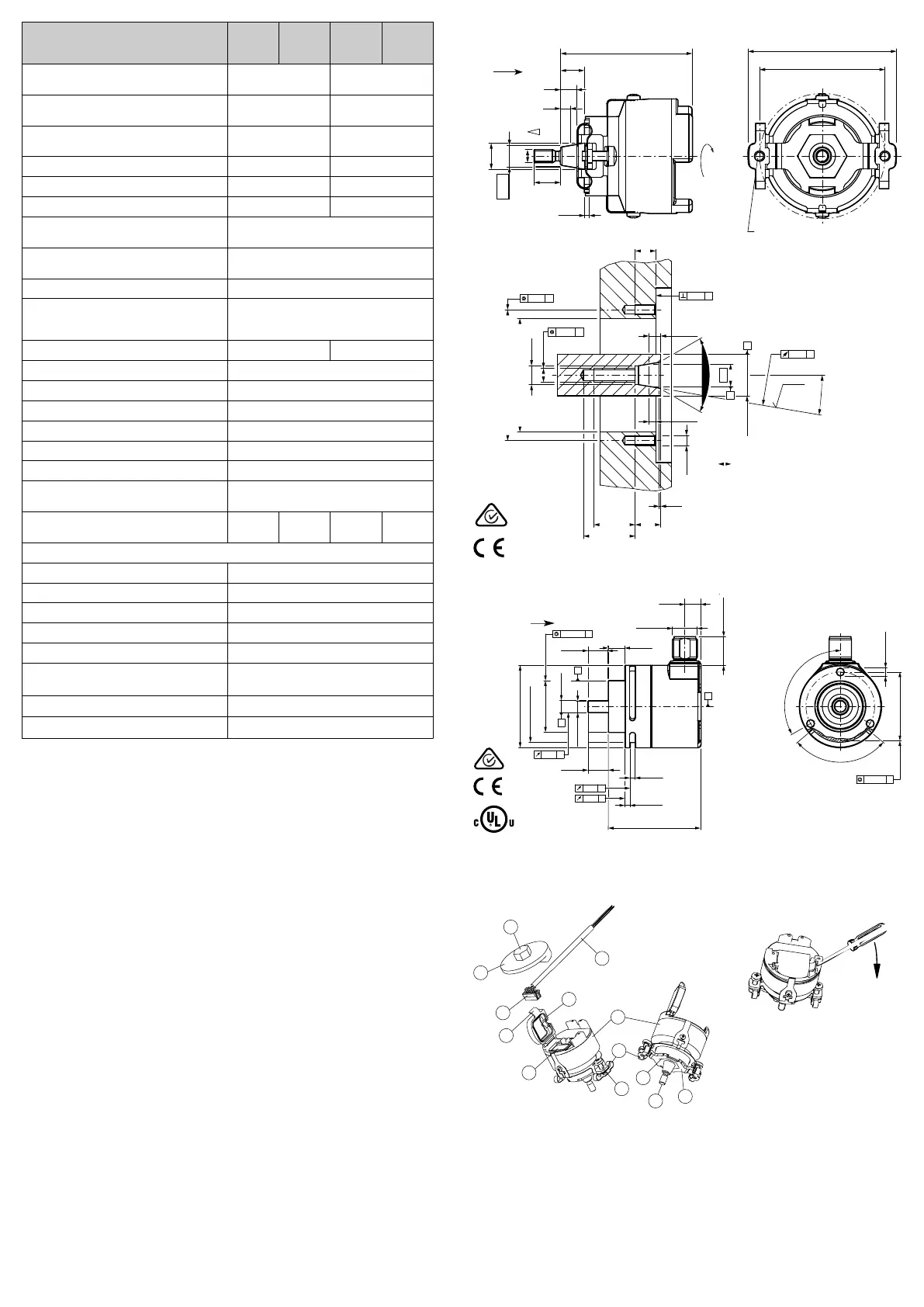

8.1 Dimensional drawings (all dimensions in mm)
A
40-2
7.2
5
3
1:3
Ø 8
Ø 6.5
M4
8
1.5
Ma 4 Nm.
Ø 45
Ø 38
Oval.head screw M3 x 8 (2x)
DIN 7985 with Torx head
Thread-forming as per DIN 7500
A
6.5
A
A
B
*
A
Ø 0.1
B
*
Ø 38
±0.1
180°
±1°
Max. Ø 33
Ø 5.5
M4
6
3.4-0.2
60°
2-0.4 **
+0.2
2 x M3
Min. 10
13
7.4
+0.2
0.4
Min. Ø 8
Max. Ø 12
RZ6.3
9.462° –3‘
*
** ±+0.2 -0.4
*) The size of the tolerance reduces the permis-
sible wave movement. See technical data.
General tolerances as per DIN ISO 2768-mk
Mounting suggestion
Figure 3: Dimension illustration and mounting suggestion for SKS36S/SKM36S
tapered shaft
A
B
Ø 0.05
B
C
7.8
1 x M12
Max. Ø 14
9.5
8
Ø 40
Ø 35-0.2
Ø 25
Ø 6
5.7-0.1
10
±0.3
2.5
2.5
+0.2
45
3 x 120°
3 x 100°
3 x M4 10 deep
Ø 33.5
±0.1
A
Ø 0.05
C
A
A
A
0.08
0.08
0.02
General tolerances as per DIN ISO 2768-mk
Figure 4: Dimension illustration and mounting suggestion for SKS36S/SKM36S
tapered shaft
8.2 Assembly figures
13
11
8
4
1
2
3
6
12
10
7
5
9
Removal (Fig. A)
Figure 5: Assembly figure for SKS36S/SKM36S tapered shaft
