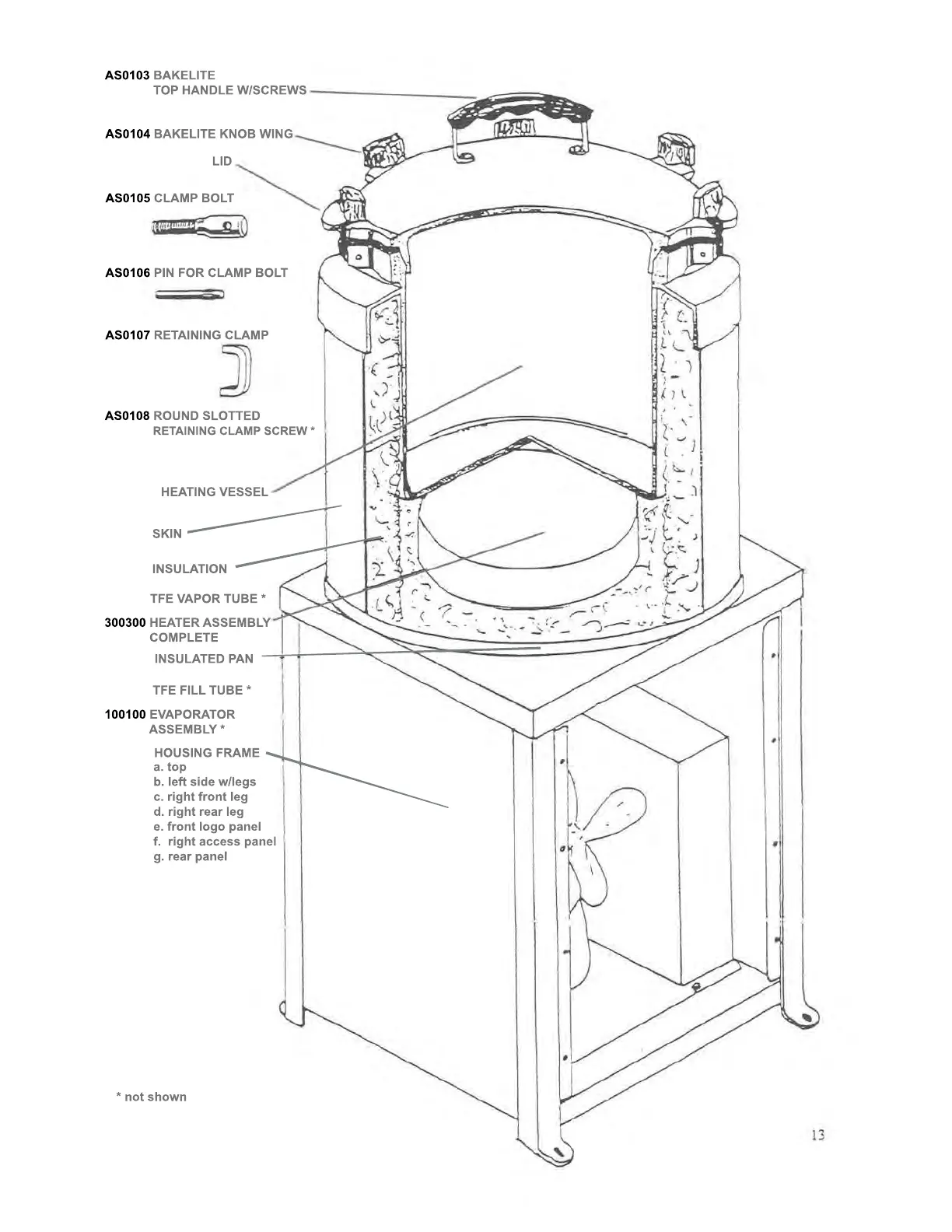

Sidewinder M-2 - Page 14

SKIN
INSULATION
TFE VAPOR TUBE *
TFE FILL TUBE *
HOUSING FRAME
a. top
b. left side w/legs
c. right front leg
d. right rear leg
e. front logo panel
f. right access panel
g. rear panel
g. rear panel
100100 EVAPORATOR
ASSEMBLY *
INSULATED PAN
AS0103 BAKELITE
TOP HANDLE W/SCREWS
* not shown
AS0104 BAKELITE KNOB WING
AS0105 CLAMP BOLT
LID
AS0106 PIN FOR CLAMP BOLT
AS0107 RETAINING CLAMP
HEATING VESSEL
300300 HEATER ASSEMBLY
COMPLETE
AS0108 ROUND SLOTTED
RETAINING CLAMP SCREW *
