Siegenia GENIUS 2.1 A - Wiring Diagram; Diagram Components

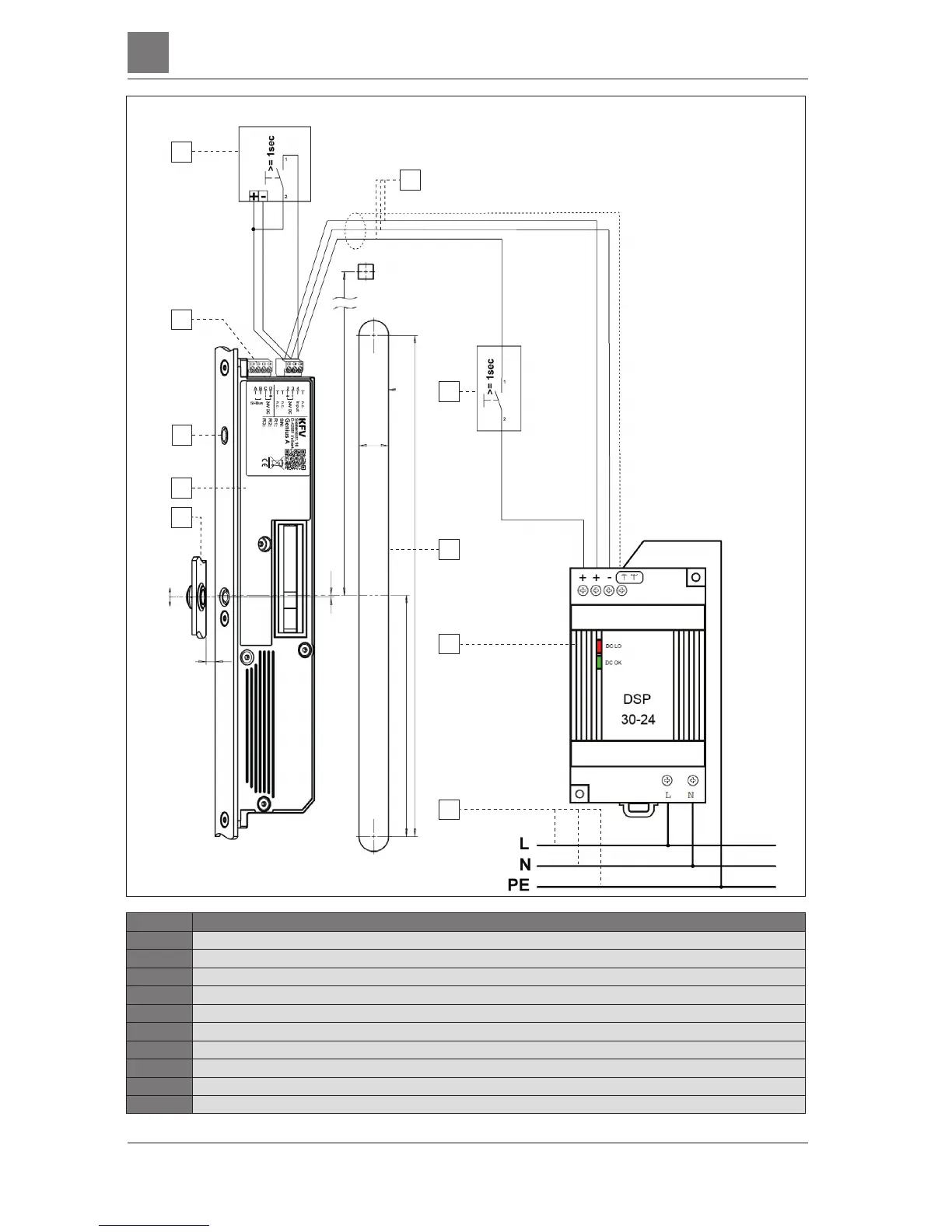

Wiring diagram GENIUS 2.1 A
9
7
8
1
2
6
10
4
5
3
min. 4 + 3
± 3
130
380
1
270
Recommended timber route depth 55 mm
16
Item Designation
1
Unlocking via the optional access control system
2
Data interface SI - RS 485
3
Buttons with menu LED
4
GENIUS 2.1 A multi-point lock
5
Position of magnet
6
Feed (shielded)
7
External unlocking feature (optional)
8
Routed pocket GENIUS 2.1 A (reference point spindle square)*
9
Power supply
10
230 V AC/50 Hz (L; N; PE)
*Information on the complete routing template can be obtained from the assembly instructions.
2
02.2017
KFV
GENIUS 2.1 A
EN
