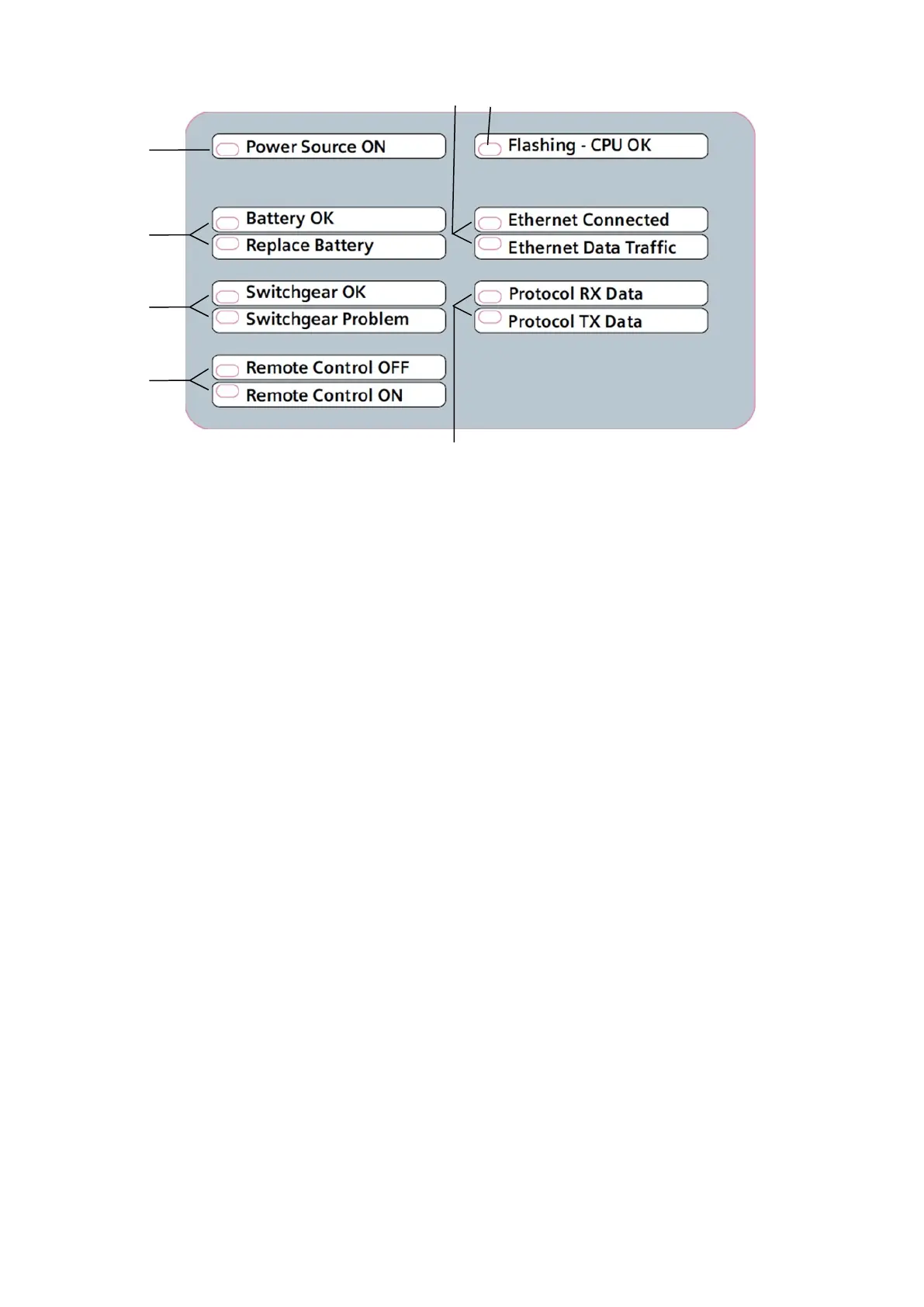

Fig. 6 LED Indicator Display
1 GREEN light ON – Power source (solar or mains)
providing power
Light OFF – No incoming power
2 GREEN light ON – Battery is OK
Light OFF – Battery off or disconnected
RED light ON – Battery needs replacing
3 GREEN Light ON – Switchgear OK
GREEN Light Flashing – Searching for
switchgear
RED light ON – Switchgear configuration or
communication problem
4 GREEN light ON – Remote Control Off.
RED light ON – Remote Control On.

5 GREEN FLASH – Microprocessor OK.
GREEN Light ON or OFF – Microprocessor
problem
6 GREEN light ON – Ethernet Connected
RED FLASH – Network traffic
7 GREEN FLASH – SCADA message received
RED FLASH – SCADA message
sent
