Siemens 3AD8 User Manual

KMS-0021
19
2022-02-10
1
2
3
4
5

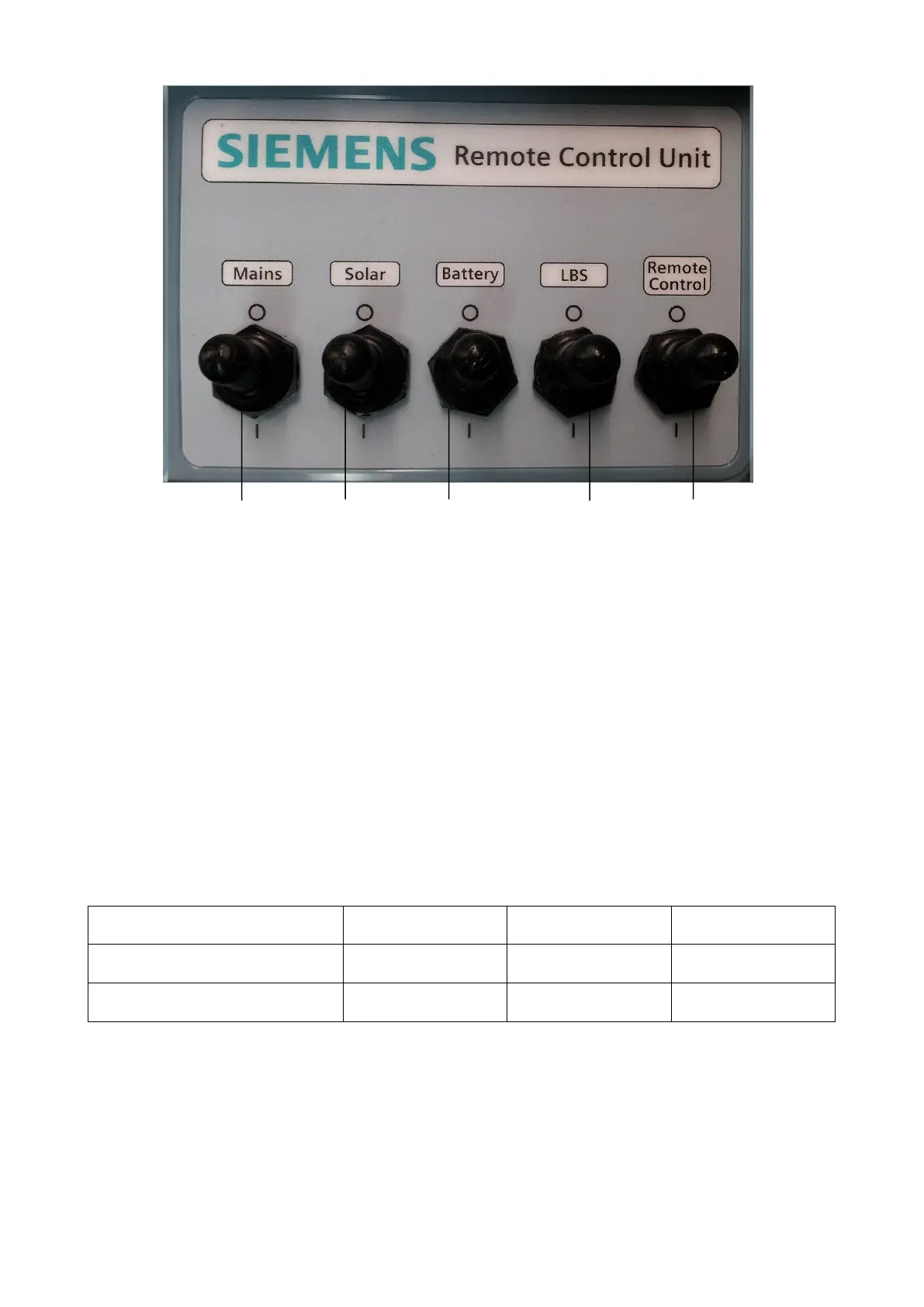

Fig. 7 User Toggle Switches
1 Mains supply ON/OFF – no effect for solar installations
2 Solar panel supply ON/OFF – no effect for mains installations
3 Battery ON/OFF – used when replacing battery
4 LBS ON/OFF – For future use, leave OFF
5 Remote Control ON – remote control is enabled so that remote SCADA operator can control switchgear
Remote Control OFF – remote control is disabled so that remote SCADA operator cannot control
switchgear. This switch also affects control from an Operator Control Panel if fitted, see page 31
3.3.2 Radio Tray and Operator Control Panel
The radio tray is used to accommodate the long range radio and the optional Operator control panel.
The radio tray hinges down and allows access to the radio behind. When in the hinged up position,
the tray provides a degree of protection from driving rain.
The maximum allowable dimensions of the radio are as follows:
Width
Height
Depth
Without Cubicle Heater
200 mm
160 mm
105 mm
With Cubicle Heater Fitted
200 mm
160 mm
70 mm
