Siemens 3AD8 User Manual

KMS-0021
66
2022-02-10

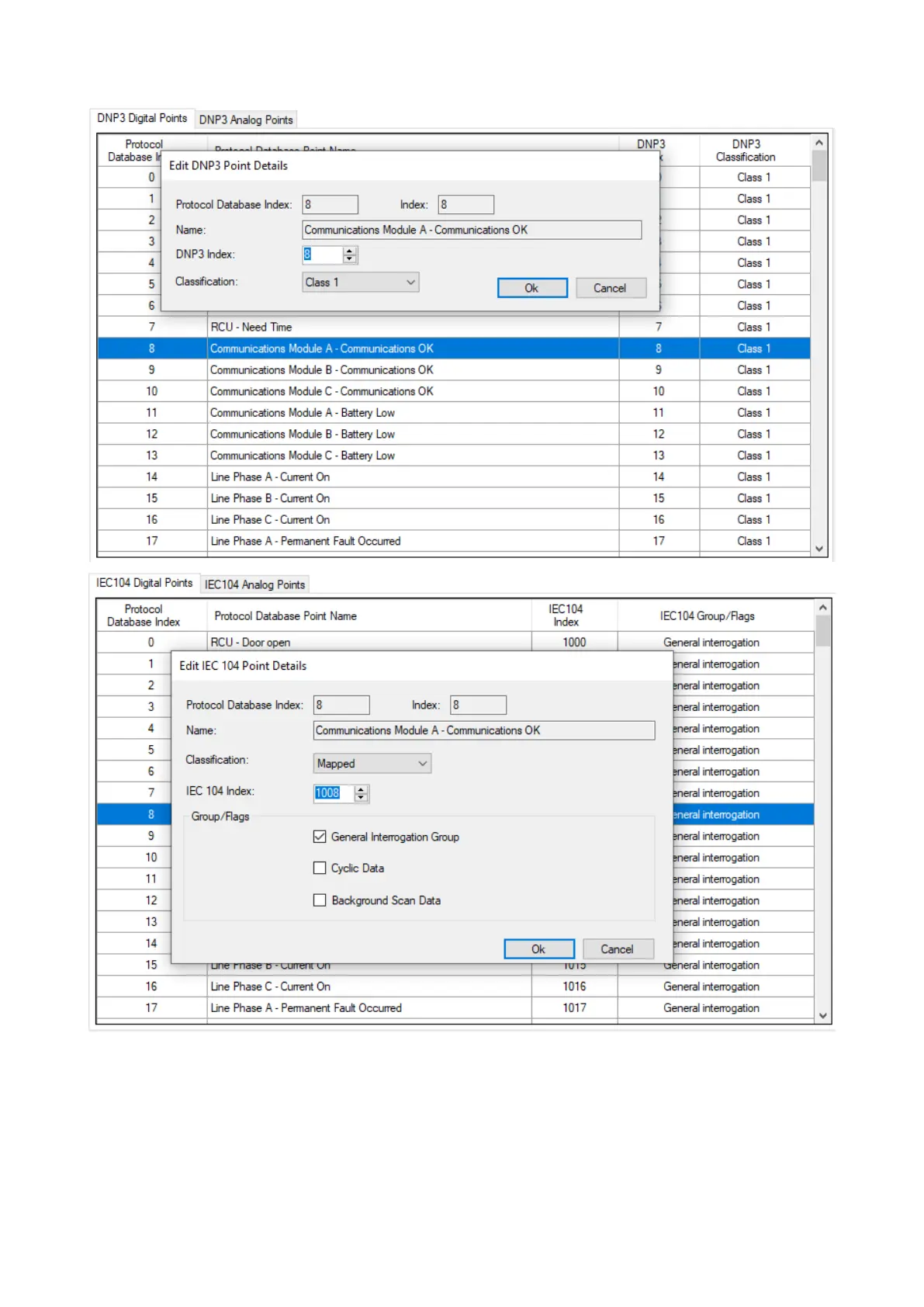

Fig. 41 RCU Connect – Edit Protocol Screen. Top
is a DNP3 example. Bottom is an IEC104
example.
From this screen, the user can change the protocol database point mapping. Double clicking on a
protocol database point will reveal the settings for that specific protocol database point, and right
clicking on a protocol database point (or points if more than one is selected) will quickly allow the
