Technical specifications

6.1 Circuit diagrams

3VA molded case circuit breakers

Manual, 04/2015, A5E03603177010-02

433

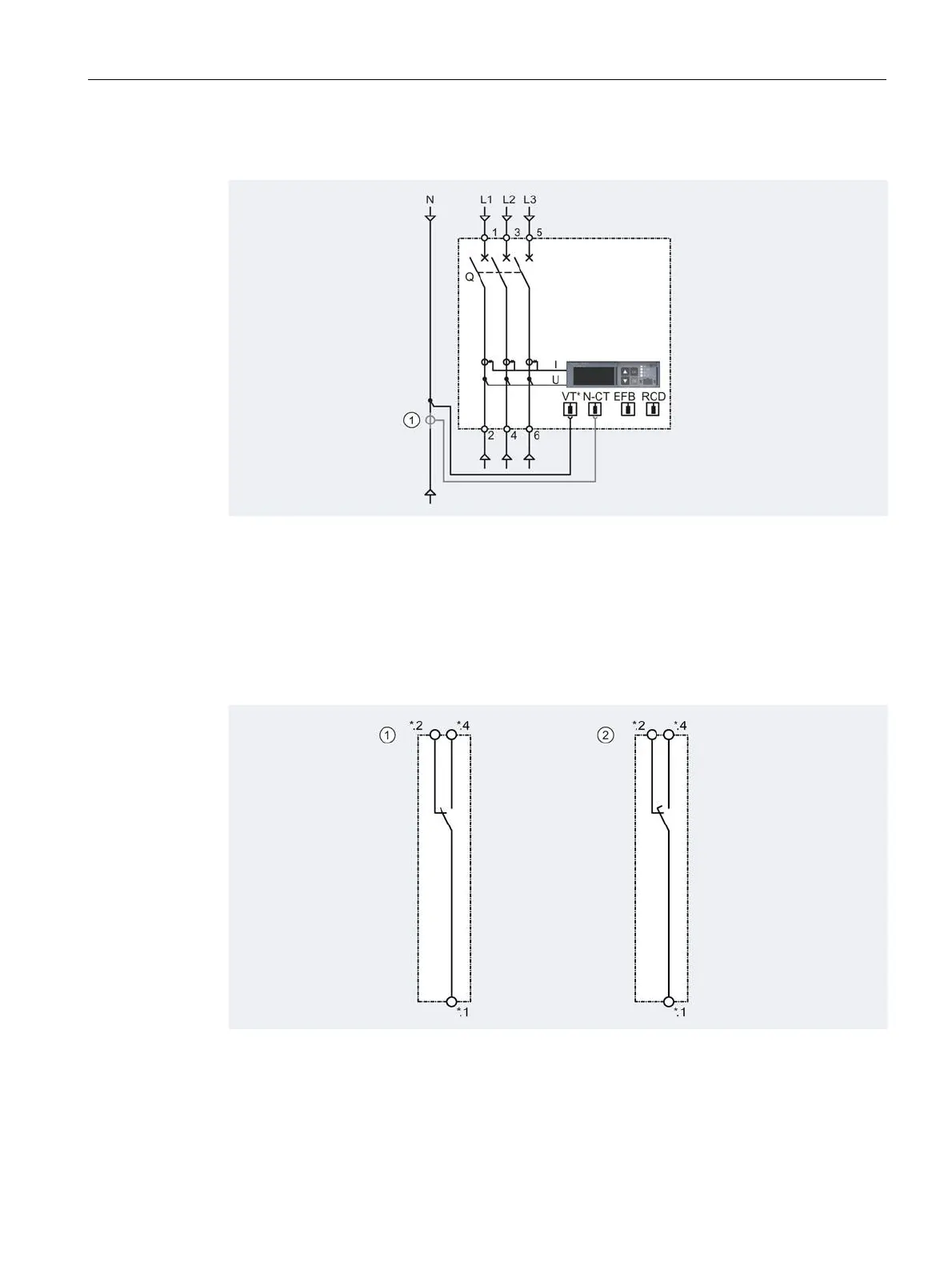

Fixed mounting, 3-pole 3VA2 molded case circuit breaker in 5-wire system

①

Optional external current transformer for N conductor (gray line)

* Voltage tap

6.1.2.2

Accessories

Auxiliary switches, alarm switches and position signaling contacts

①

Changeover contacts for auxiliary switches AUX, trip alarm switches TAS and electrical alarm

switches EAS, position signaling switches for plug-in and draw-out units

②

Leading changeover contacts for leading changeover switch LCS
