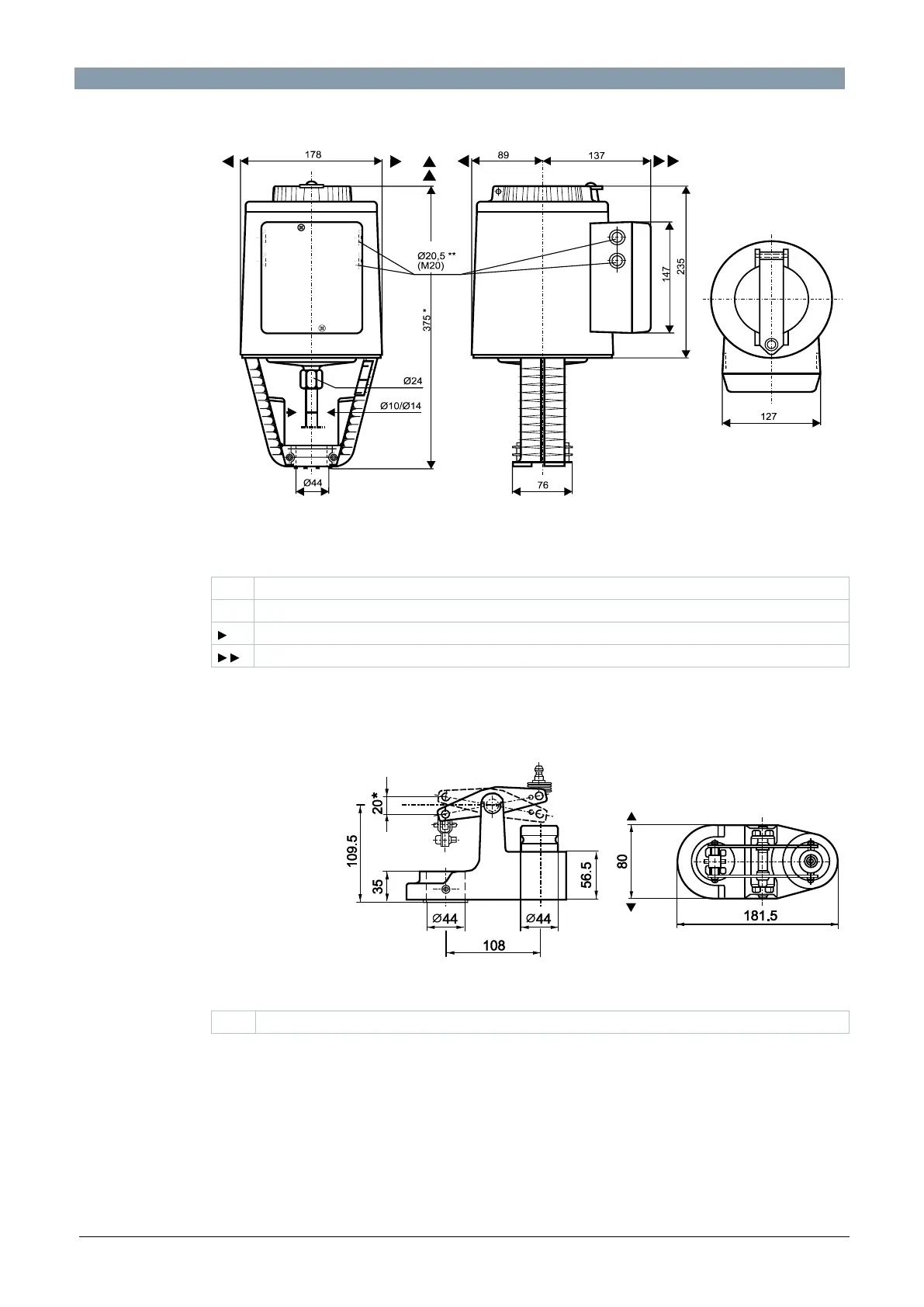

Dimensions
Actuator
All dimensions in mm
*
Height of actuator from plate with stroke inverter ASK51 = 432 mm
**
SKB..U: with knockouts for standard ½" conduit connectors (∅ 21.5 mm)
> 100 mm, minimum clearance form ceiling or wall for mounting
> 200 mm, connection, operation, maintenance, etc.
Stroke inverter ASK51
All dimensions in mm
*
Maximum stroke = 20 mm
