Siemens AD2-P User Manual

P/N 315-049708-5
Siemens Industry, Inc.
Building Technologies Division
8
LOOP WIRES.
SEE COMPATIBLE
CONTROL
EQUIPMENT TABLE.
NO
COM
NC
LOOP WIRES.
SEE COMPATIBLE
CONTROL
EQUIPMENT TABLE.
TO NEXT DETECTOR OR EOL DEVICE
(1A)
TO REMOTE DEVICE
(6)
CNTL
+ -
(5)
-+
+
-
ALARM CONTACTS
125 VAC, 24 VDC, 2.5A
SEE NOTE 2
DEVICE
REMOTE
DEVICE LOOP -
DEVICE LOOP +
LOOP/REM -
DEVICE
CONTROL
NOT USED
LOOP/REM +
MODEL AD2-P
TO NEXT DETECTOR OR EOL DEVICE
+
-
TO SECOND REMOTE DEVICE (SEE MULTIPLE REMOTE DEVICES)
REM+
-
+
REM-
CONTL
REMOTE
ALARM
RELAY
COMNC NO
+
-
CNTL
-
+ +
DEVICE
LOOP
MODEL AD2-PR
NOTE: EOL DEVICE MUST BE COMPATIBLE WITH SYSTEM INITIATING CIRCUIT. OBSERVE PROPER POLARITY WHERE APPLICABLE.
(6)
(5)
(1A)
TB1
TB1
PE-11
PE-11C
PE-11
PE-11C
NOTES: 1. Up to 30 air duct housings can be
installed on one initiating circuit, except as noted in Note 2.
2. When an AD2-PR is used to control a
fire safety function, the AD2-PR must be the ONLY device on the initiating circuit.
3. Do not use looped wire under base
terminal.
4. Break wire run to provide supervision
of connection.
5. The green grounding screw in the
wiring compartment of the air duct housing is not used.

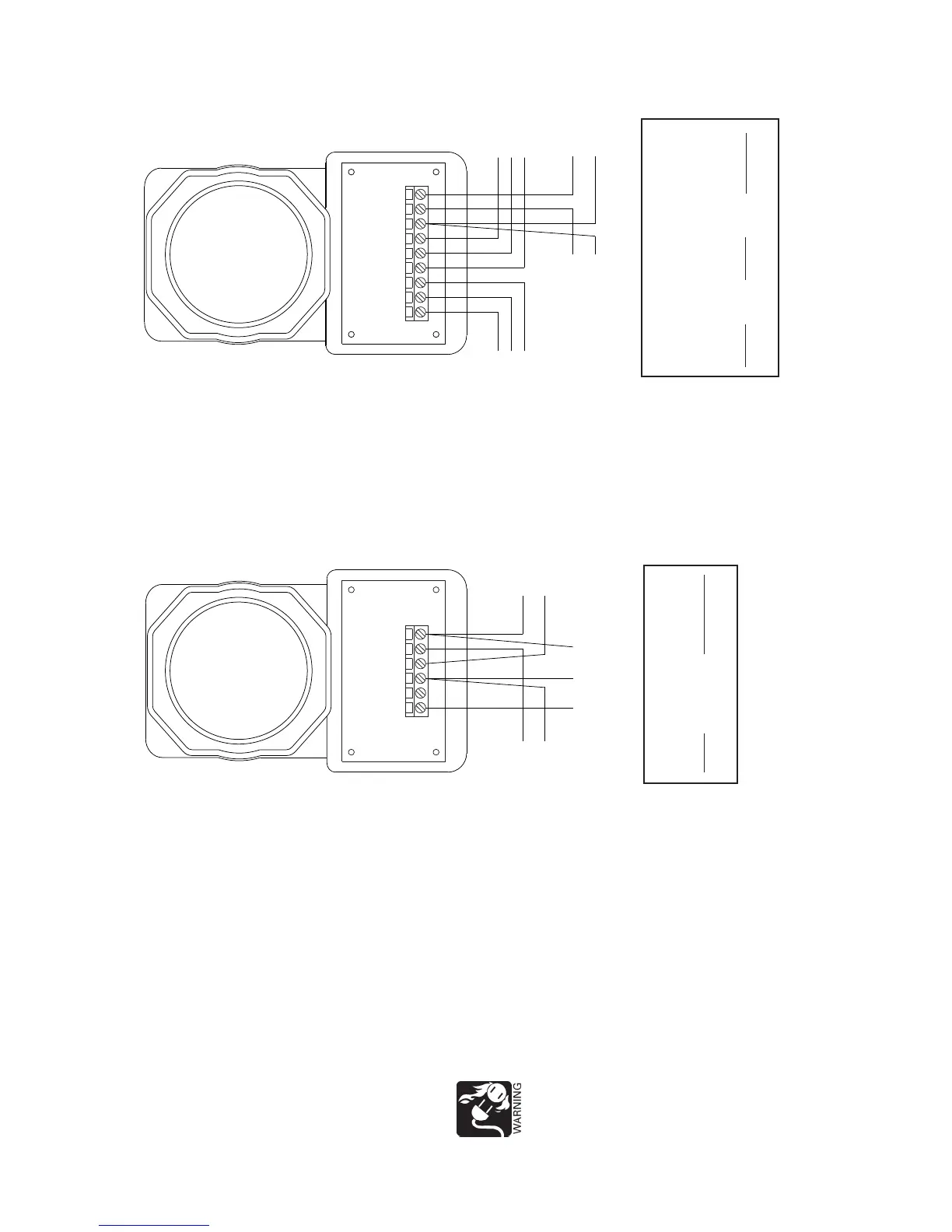

Figure 5 Typical Connections for the AD2-P / AD2-PR Using PE-11 / PE-11C Detectors
If remote devices are supported by the initiating circuit, each detector/base may have up to 2 remote devices with the following configurations and restrictions only:
MULTIPLE REMOTE DEVICES
Remote
Device 1
AD2-P AD2-P
Remote
Device 2
RLC-11, RLW-11
RSAC-11, RSAW-11
Restrictions See Note 2 See Note 2
SEE REMOTE DEVICE INSTRUCTIONS FOR WIRING DETAILS:
DEVICE RLC-11, RLW-11 RSAC-11, RSAW-11
INSTALLATION
INSTRUCTIONS
P/N 315-094925 P/N 315-094926
If the relay contacts are being used to control 120 VAC operated equipment, ensure that the conduit is properly attached to the internal metal ground strap, using the proper conduit locking nuts. Failure to provide proper grounding may result in fatal electrical shock and violation of national and local codes.
