3. Close the inner door and secure with the ¼ turn fastener. (Refer to Figure
2.) The inner door can also be secured with a screw, if desired.
Install the Outer Door: 1. Insert the hinge pins on the outer door in the hinges on the backbox.
2. Install clear, blank, or vented removable panel(s) as required and secure
with 10-32 nuts. (Refer to Table 2 and Figure 8.)
Figure 7

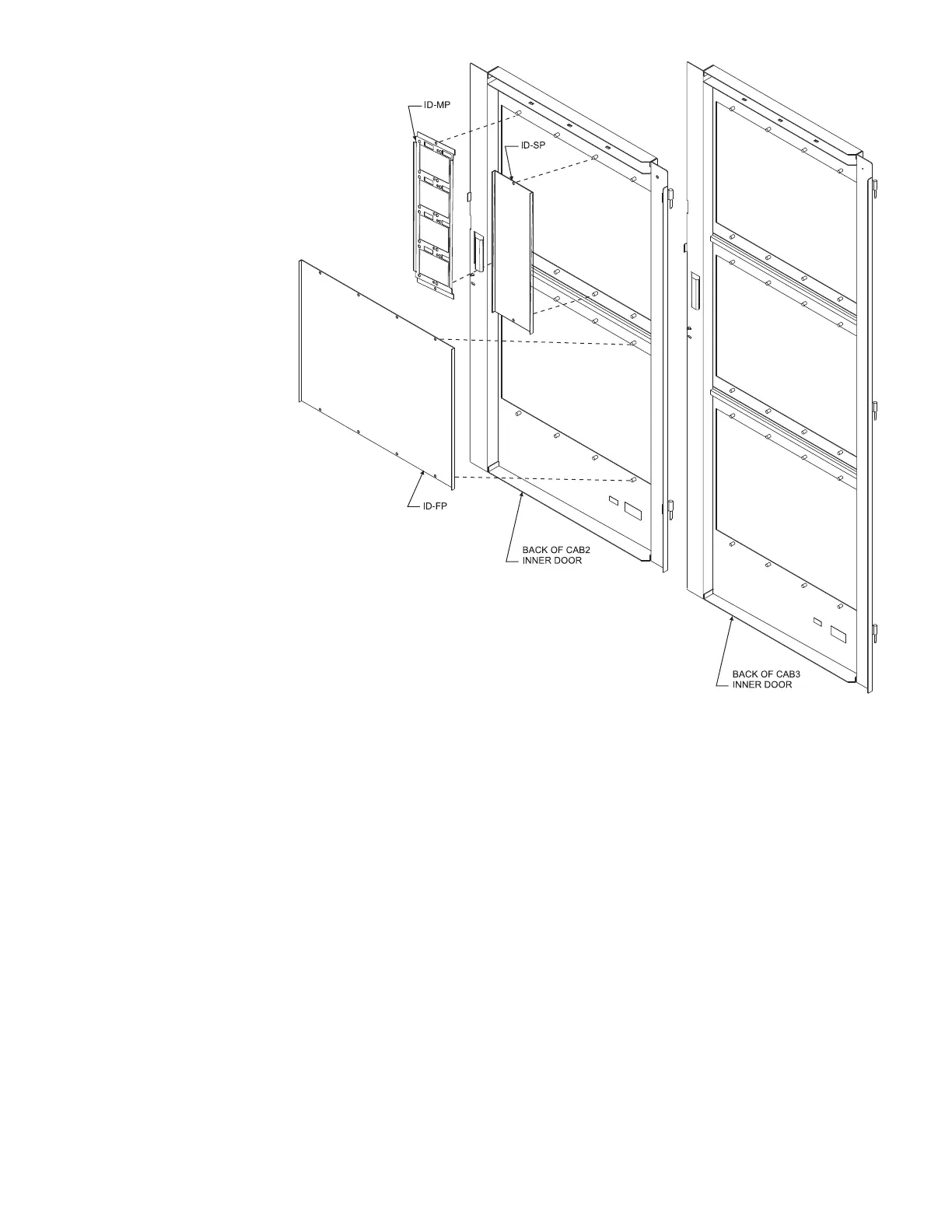

Installing Blank Plates In CAB2 And CAB3 Inner Doors
