Application planning

6.3 Configuration versions

S7-1500R/H redundant system

System Manual, 01/2024, A5E41814787-AF

143

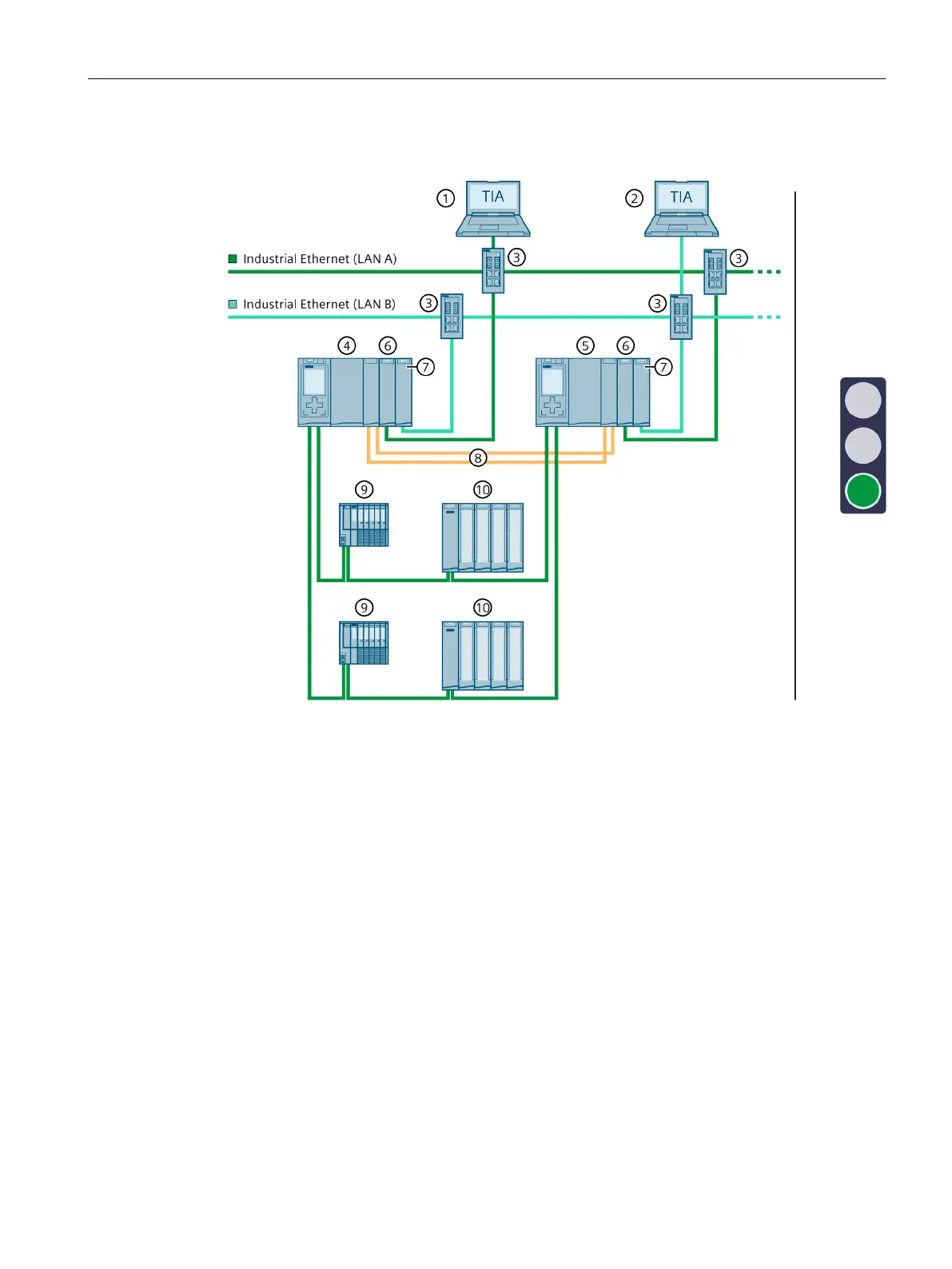

S7-1500H configuration

①

Engineering station to LAN A

②

Engineering station to LAN B

③

Switch

④

CPU 1

⑤

CPU 2

⑥

CP 1543-1 with connection to LAN A

⑦

CP 1543-1 with connection to LAN B

⑧

Two fiber-optic cables (redundancy connections)

⑨

IO device ET 200SP

⑩

IO device ET 200MP

Figure 6-9 S7-1500H configuration with CP 1543-1 on Industrial Ethernet LAN A, LAN B
