Installation

7.4 Installing the standard rail adapter

S7-1500R/H redundant system

System Manual, 01/2024, A5E41814787-AF

247

• To ensure optimal stability, the clearance between the two DIN rail adapters must be no

more than 250 mm.

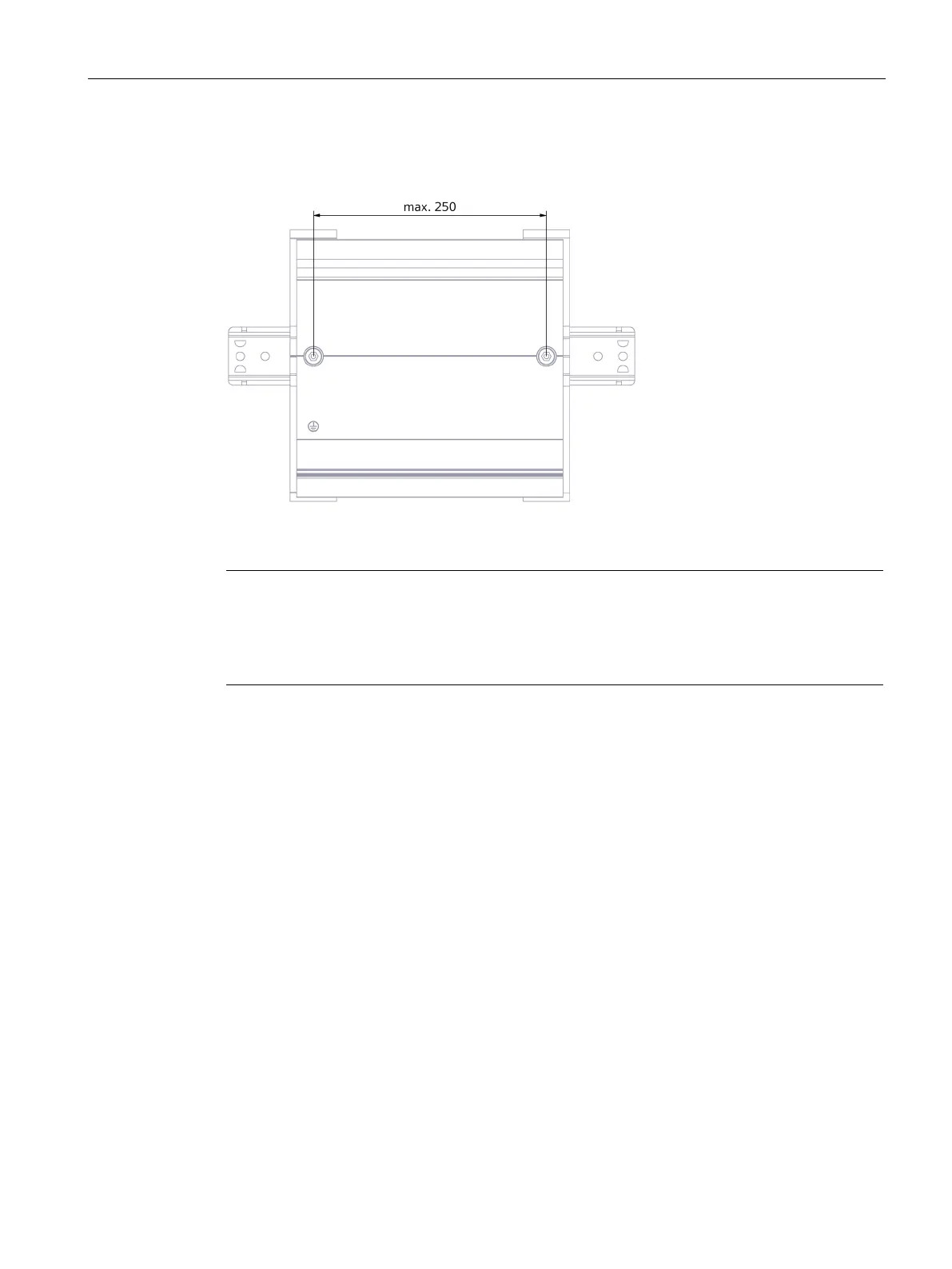

Figure 7-6 Distance between two DIN rail adapters

Note

Note that, depending on the mounting rail width, the mounting rail adapter can protrude up

to 4

mm on each side due to the drill holes.

You can find an overview of the protrusion dimensions for the various DIN rails in the table

below.
