Disassembling the enclosure

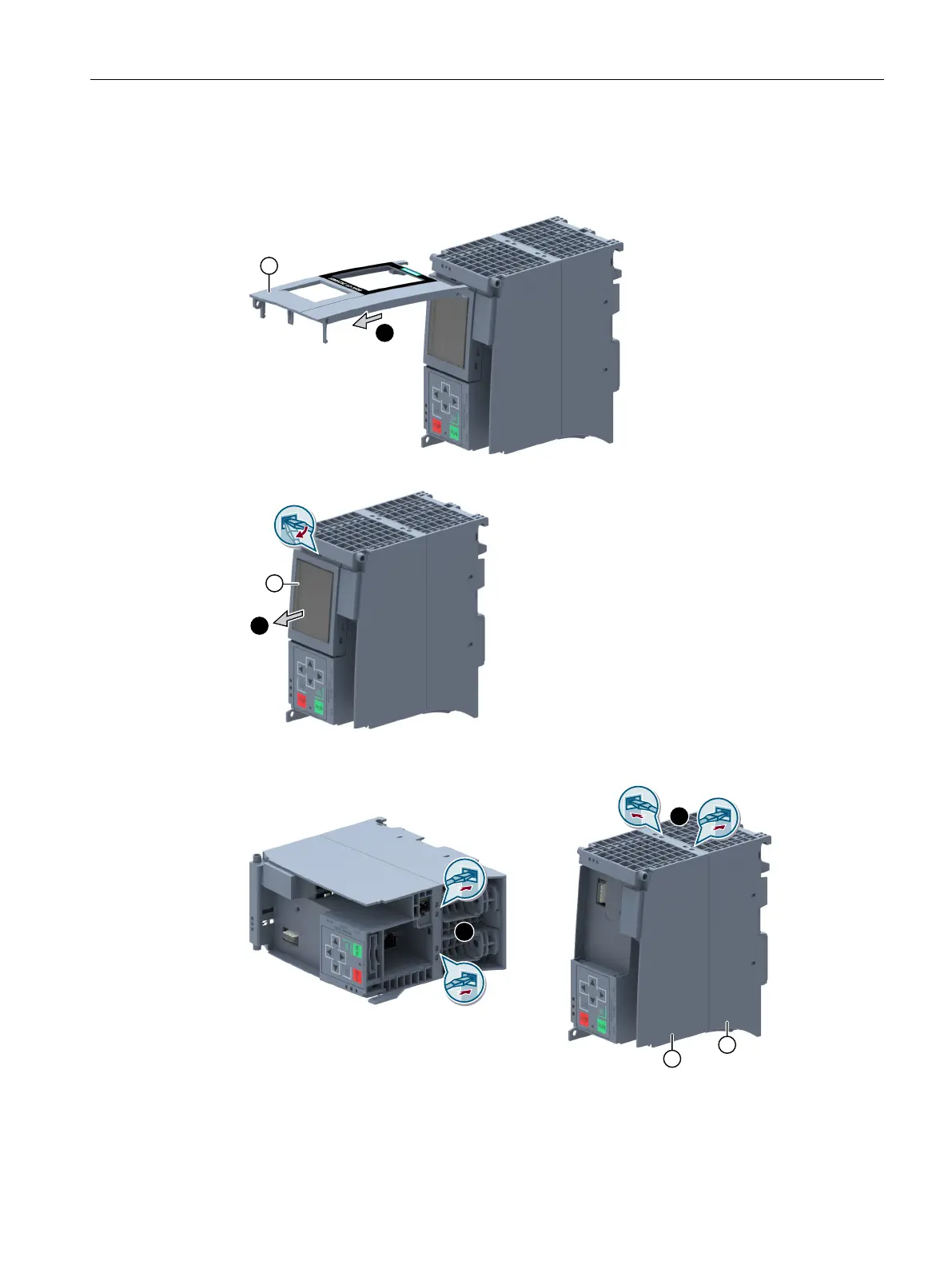

Follow these steps for disassembly:
1.
Pull the front flap (4) up 90 degrees. Pull off the front flap.
2.
Remove the display (3) with a flat-tip screwdriver.
3.
To open the enclosure (1a, 1b), use a flat-tip screwdriver to press the snap locks on the
top and bottom.
C
B
9
Disassembly instructions
Recycler Guide for S7-1500 CPUs (6ES7515-2.N03-0AB0, 6ES7516-3.P03-0AB0, 6ES7511-1.L03-0AB0, and
6ES7513-1.M03-0AB0)
Product Information, 03/2024, A5E53705324-AA
