Recycler Guide for S7-1500 CPUs (6ES7515-2.N03-0AB0, 6ES7516-3.P03-0AB0, 6ES7511-1.L03-0AB0, and 6ES7513-1.M03-0AB0)
Product Information, 03/2024, A5E53705324-AA
8
Disassembly instructions
4
The following guide provides detailed information on how to disassemble the product at the
end of its service life and on what materials you can collect and recycle. In doing so, you
support the recycling economy.

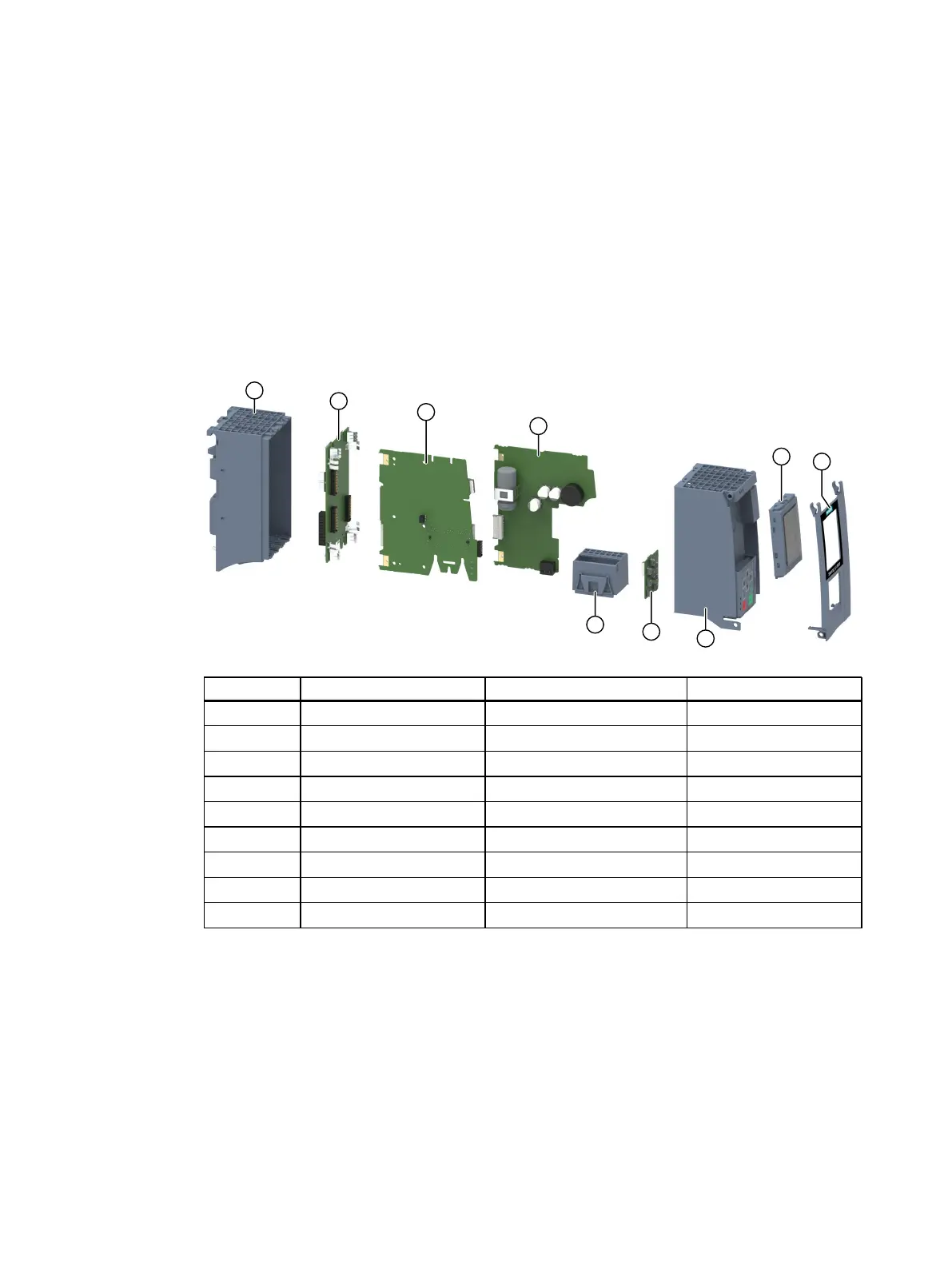

Components of the product
B
B
C
D
D
E
C
Position Part Material Disassembly step
1a Rear of enclosure Thermoplasts Enclosure, step 4
1b Front of enclosure Thermoplasts Enclosure, step 3
1c Spacer frame Thermoplasts Enclosure, step 5
2a Assembled PCB Electronics Printed boards, step 1
2b Assembled PCB Electronics Printed boards, step 2
2c Assembled PCB Electronics Printed boards, step 4
2d Assembled PCB Electronics Printed boards, step 6
3 Display Electronics Enclosure, step 2
4 Front flap Thermoplasts Enclosure, step 1
