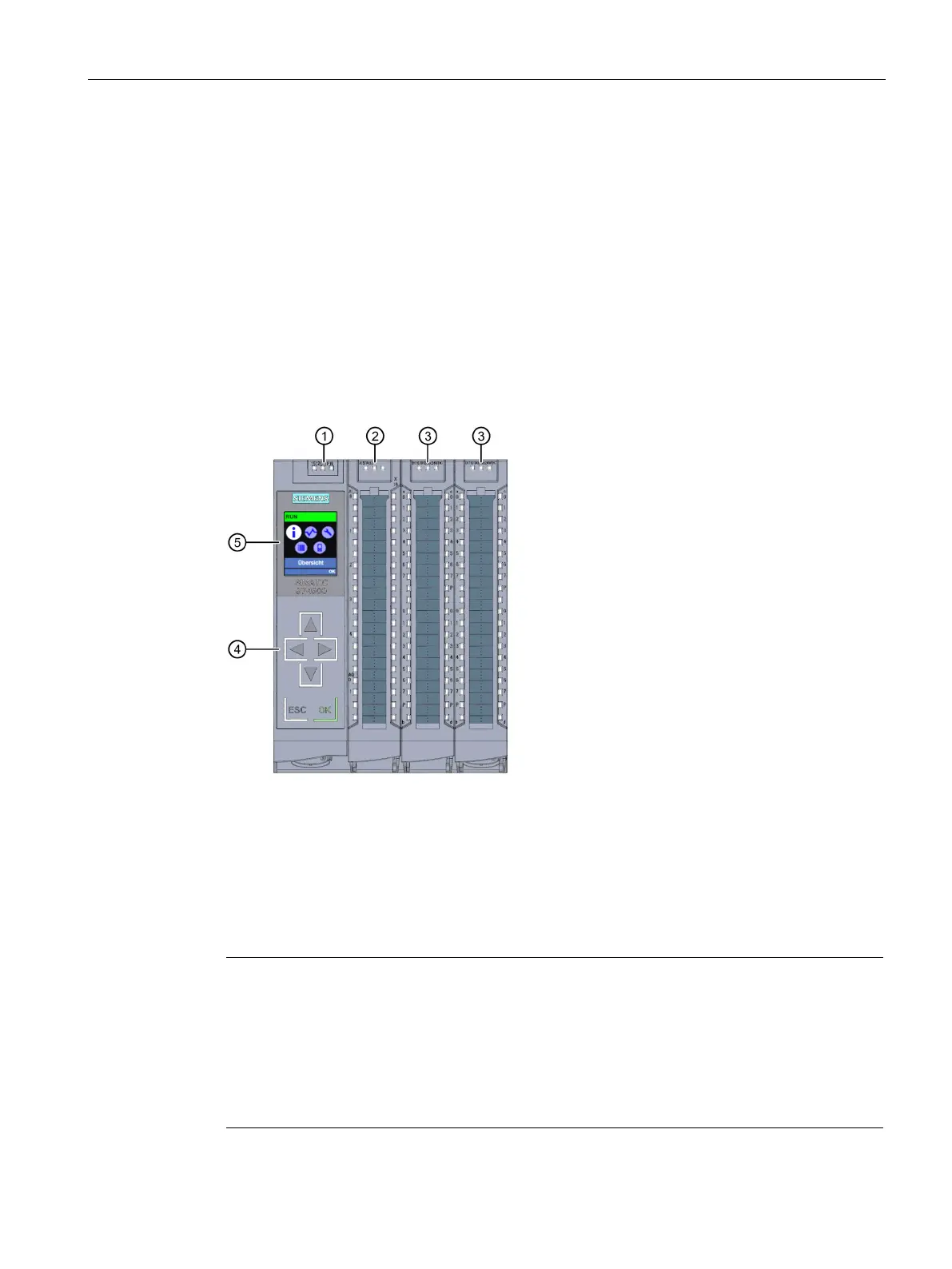

Connecting up
CPU 1518-4 PN/DP ODK (6ES7518-4AP00-3AB0)
Manual, 09/2016, A5E35681108-AA
31
Reference
You can find additional information on the topics of "Connecting the CPU" and
"Accessories/spare parts" in the S7-1500, ET 200MP
(http://support.automation.siemens.com/WW/view/en/59191792
) system manual.
Assignment of the MAC addresses
CPU 1518-4 PN/DP ODK has three PROFINET interfaces. The first interface is an interface
with 2-port switch. The PROFINET interfaces each have a MAC address, and each of the
PROFINET ports has its own MAC address. The CPU 1518-4 PN/DP ODK therefore has
seven MAC addresses in total.
The MAC addresses of the PROFINET ports are needed for the LLDP protocol, for example
for the neighborhood discovery function.
The number range of the MAC addresses is sequential. The first and last MAC address are
lasered on the rating plate on the right side of each CPU 1518-4 PN/DP ODK.
The table below shows how the MAC addresses are assigned.
Table 3- 2 Assignment of the MAC addresses
Assignment
Labeling
MAC address 1
PROFINET interface X1
(visible in STEP 7 for accessible devic-
es)
• Front, lasered
• Right side, lasered
(start of number range)
MAC address 2
Port X1 P1 R (required for LLDP, for
example)
• Front and right side, not lasered
MAC address 3
Port X1 P2 R (required for LLDP, for
example)
• Front and right side, not lasered
MAC address 4
PROFINET interface X2
(visible in STEP 7 for accessible devic-
es)
• Front, lasered
• Right side, not lasered
MAC address 5
Port X2 P1 (required for LLDP, for
example)
• Front and right side, not lasered
MAC address 6
PROFINET interface X3
(visible in STEP 7 for accessible devic-
es)
• Front, lasered
• Right side, not lasered
MAC address 7
Port X3 P1 (required for LLDP, for
example)
• Front, lasered
• Right side, lasered
(end of number range)
