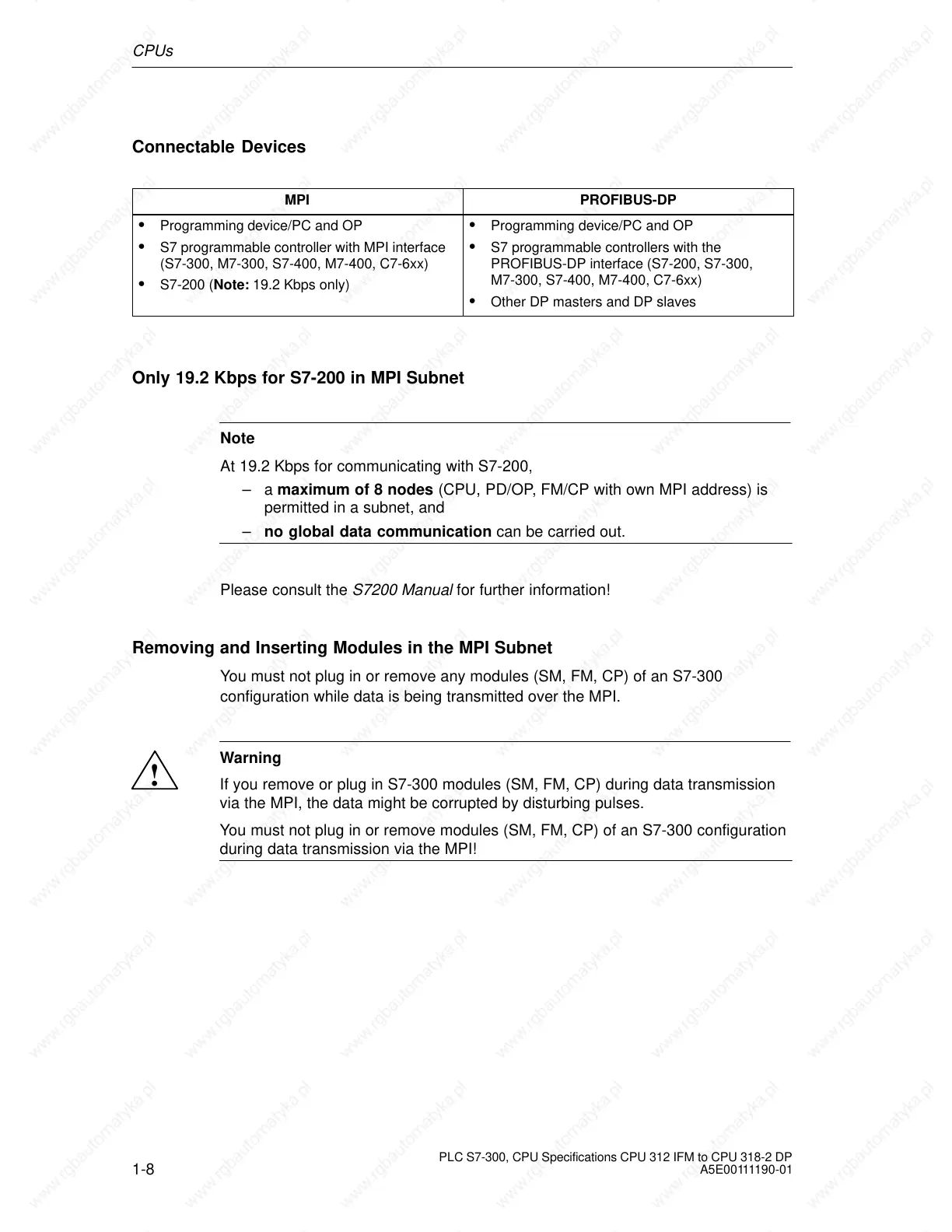

CPUs
1-8
PLC S7-300, CPU Specifications CPU 312 IFM to CPU 318-2 DP
A5E00111190-01
Connectable Devices
MPI PROFIBUS-DP
Programming device/PC and OP
S7 programmable controller with MPI interface
(S7-300, M7-300, S7-400, M7-400, C7-6xx)
S7-200 (Note: 19.2 Kbps only)
Programming device/PC and OP
S7 programmable controllers with the
PROFIBUS-DP interface (S7-200, S7-300,
M7-300, S7-400, M7-400, C7-6xx)
Other DP masters and DP slaves
Only 19.2 Kbps for S7-200 in MPI Subnet
Note
At 19.2 Kbps for communicating with S7-200,
– a maximum of 8 nodes (CPU, PD/OP, FM/CP with own MPI address) is
permitted in a subnet, and
– no global data communication can be carried out.
Please consult the S7200 Manual for further information!
Removing and Inserting Modules in the MPI Subnet
You must not plug in or remove any modules (SM, FM, CP) of an S7-300
configuration while data is being transmitted over the MPI.
!
Warning
If you remove or plug in S7-300 modules (SM, FM, CP) during data transmission
via the MPI, the data might be corrupted by disturbing pulses.
You must not plug in or remove modules (SM, FM, CP) of an S7-300 configuration
during data transmission via the MPI!
