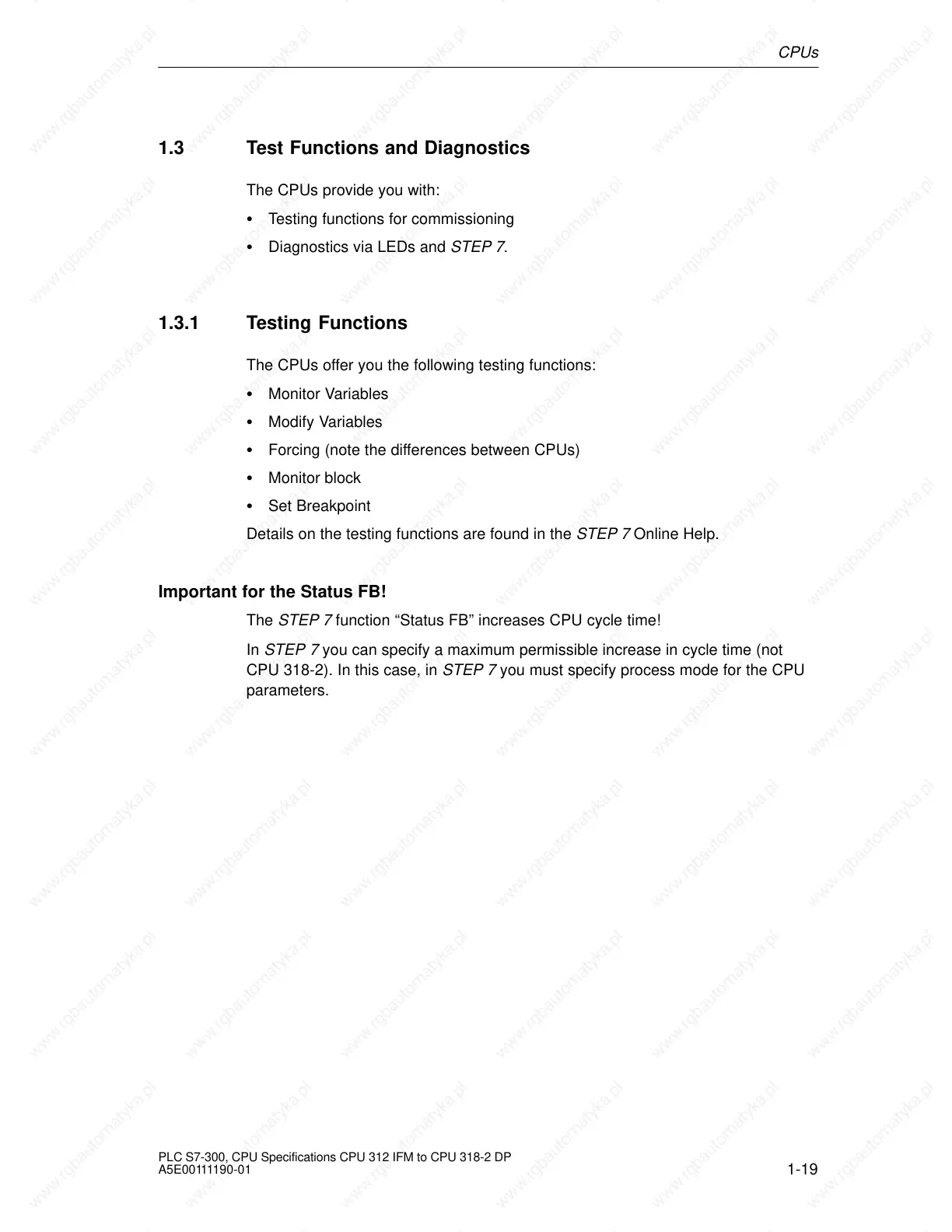

1.3 Test Functions and Diagnostics
The CPUs provide you with:
Testing functions for commissioning
Diagnostics via LEDs and STEP 7.
1.3.1 Testing Functions
The CPUs offer you the following testing functions:
Monitor Variables
Modify Variables
Forcing (note the differences between CPUs)
Monitor block
Set Breakpoint
Details on the testing functions are found in the STEP 7 Online Help.
Important for the Status FB!
The STEP 7 function “Status FB” increases CPU cycle time!
In STEP 7 you can specify a maximum permissible increase in cycle time (not
CPU 318-2). In this case, in STEP 7 you must specify process mode for the CPU
parameters.
