S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
7-12 A5E00105492-03

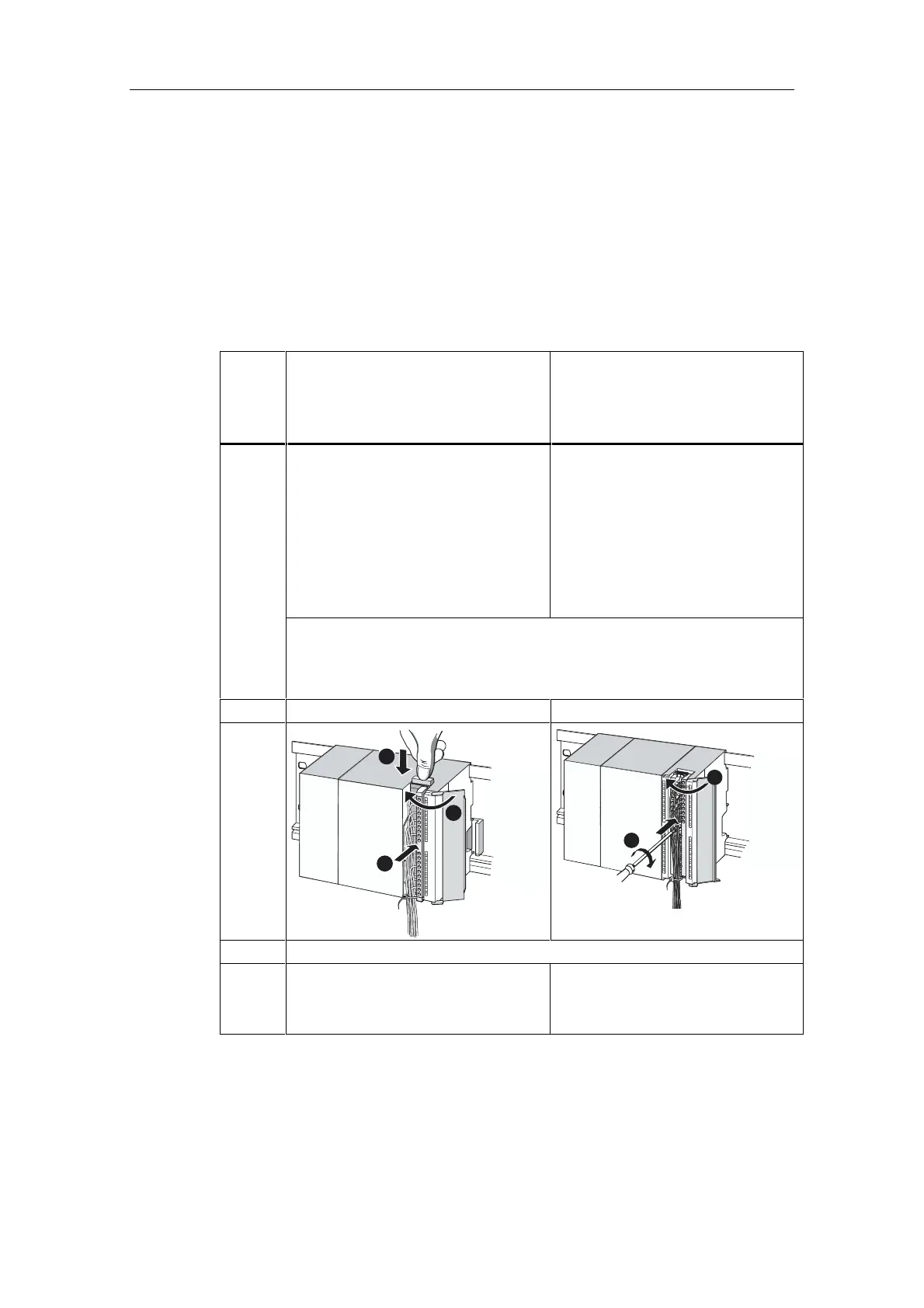

,QVHUWLQJ)URQW&RQQHFWRUVLQWR0RGXOHV
5HTXLUHPHQW
The front connectors are completely wired.
,QVHUWLQJWKHIURQWFRQQHFWRU
,QVHUWLQ
JWKH
IURQW
FRQQHFW
RU6WHS
ZLWKSLQIURQWFRQQHFWRU ZLWKSLQIURQWFRQQHFWRU
Push in the unlocking mechanism on top
of the module.
Keeping the locking mechanism
pressed, insert the front connector into
the module.
Provided the front connector is seated
correctly in the module, the unlocking
mechanism automatically returns to
initial position when you release it.
Tighten the mounting screw in the
center of the connector.
This pulls the front connector
completely into contact with the
module.
1.
1RWH
When you insert the front connector into the module, an encoding mechanism
engages in the front connector, thus ensuring that the connector can only be
inserted in modules of the same type.
2. Close the front panel. Close the front panel.
CPU
PS
1
1
2
3
CPU
PS
1
1
1
2
The work step numbers are shown in the figure above
Keep unlocking mechanism pressed.
Insert front connector.
Then close the front door.
Tighten mounting screw.
You can now close the front panel
