:LULQJ
S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
A5E00105492-03
7-13
/DEHOLQJWKH0RGXOH,2
,QWURGXFWLRQ
The labeling strips are used to document the assignment between inputs/outputs of
the modules and the sensors/actuators of your plant.
You must use the labeling strips, depending on the module:
Table 7-7 Assigning the labeling strips to modules
0RGXOH /DEHOLQJVWULS
2UGHU1R
Signal modules (not 32-channel),
Function modules,
Communication module CP 342-2
6ES7 392-2XX00-0AA0
Signal modules (32-channel) 6ES7 392-2XX10-0AA0
/DEHOLQJDQGLQVHUWLQJODEHOLQJVWULSV
1. Label the strips with the addresses of the sensors/actuators.
2. Slide the labeled strips into the front panel.
CPU
PS

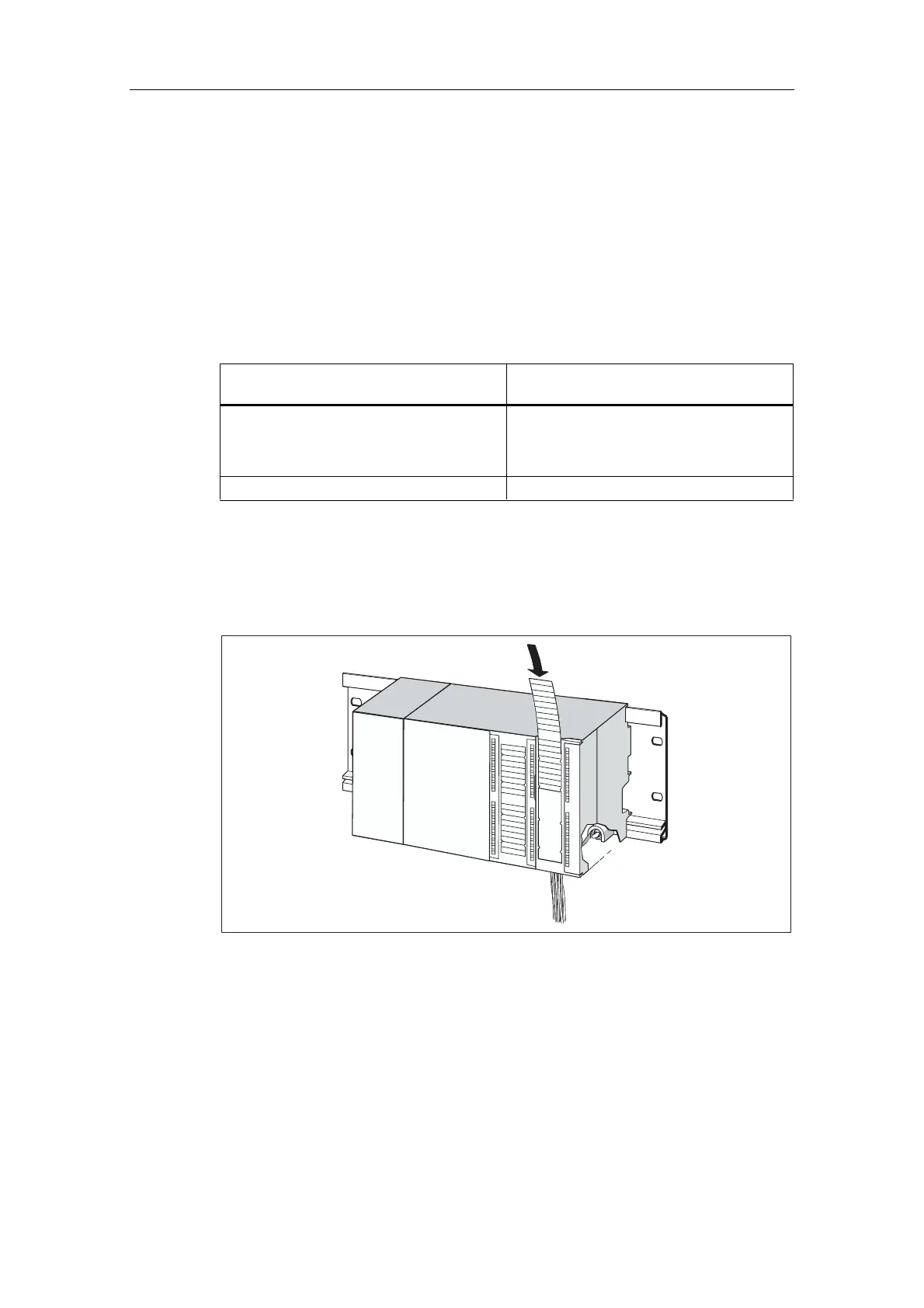

Figure 7-5 Slide the labeled strips into the front panel
7LS
Templates for labeling strips are available on the Internet at
http://www.ad.siemens.de/csinfo under article ID 11978022.
